Quick Details
-
Model Number:
-
XZ-8108; Z-8108; AZ-8108; ME-8108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10~60 Degree
-
Max. Current:
-
5A
-
Certificate:
-
UL TUV CCC CE RoHS
-
Material body:
-
zinc metal alloy
-
Electrical Life:
-
100,000 times above
-
Drive Shaft Type:
-
Roller arm type
-
Standard:
-
EN(IEC)60947-5-1
-
Superiority:
-
Small Size, water and oil resistant
-
Brand:
-
XURUI or OEM
-
Mechanical Life:
-
1,000,000 times above
-
Type:
-
omron limit switch
-
Model:
-
azbil limit switch
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ-8108; Z-8108; AZ-8108; ME-8108
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10~60 Degree
-
Max. Current:
-
5A
-
Certificate:
-
UL TUV CCC CE RoHS
-
Material body:
-
zinc metal alloy
-
Electrical Life:
-
100,000 times above
-
Drive Shaft Type:
-
Roller arm type
-
Standard:
-
EN(IEC)60947-5-1
-
Superiority:
-
Small Size, water and oil resistant
-
Brand:
-
XURUI or OEM
-
Mechanical Life:
-
1,000,000 times above
-
Type:
-
omron limit switch
-
Model:
-
azbil limit switch

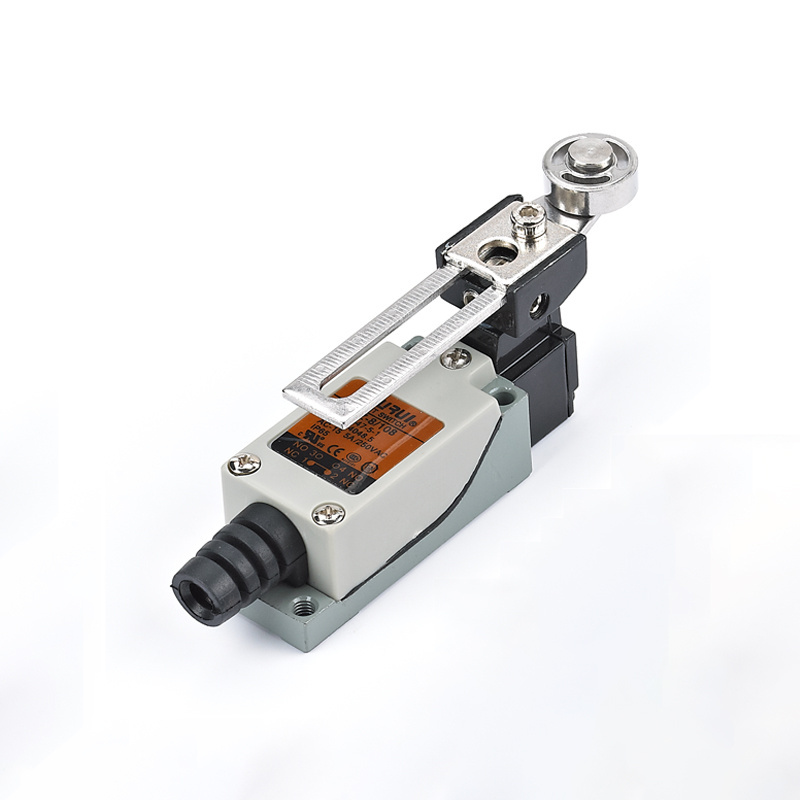

- Strong structure, made of zinc metal alloy and plastics, easy to contact line.
- Small size, water and oil resistant.
- Double way switch, double spring inner switch.
- Widely used in mechanical equipment, automatic machine, instrument, electro motion tool etc.
| Item | Data | |
| Rating Load | 5A/250VAC | |
| Operation Speed | 5mm-50cm/s | |
| Operation Frequency | Mechanical | 120 times/min |
| Electrical | 30 times/min | |
| Insulation Resistance | 100mΩ (above) DC500V | |
| Contact Resistance | 25mΩ initial value | |
| Withstand Voltage | Non-connection Wire | 1000VAC |
| Every Terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz amplitude 1.5mm |
| Impact | Durable | 1000 m/s² |
| Misoperation | 300 m/ s ² | |
| Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above | |
| Protection Degree | IP65 | |
| Operating Temperature | -20~+60 ℃ | |
| Operating Humidity | <85% | |
| Model | XZ-8/108 |
| OF max. | 800g(7.84N) |
| RF min. | 60g(0.59N) |
| PT max. | 30° |
| OT min | 60° |
| MD max. | 15° |
| OP | / |
| TT | 90° |
- Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
- Supplied directly from factory with more than 16 years experience.
- Short Delivery Time: Stock in 2 days, order as short as 7 days.
- Small order welcome.
- Payment by Paypal, Western Union is supported.
Zhejiang Xurui Electronic Co., Ltd, established in 2002 , is specialized in the research, development, production of industrial products.
Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.
Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.
Main markets: Europe, America, Australia, Asia, Middle East and so on.
Q: How do you control the products' quality?
A: 100% auto inspection machine and manual test together before packing.
Q: Would you accept to use our logo?
A: If you have good quantity, we would like to do OEM and ODM, customized specification.
Q: Can I get a sample for reference?
A: We are glad to send the samples for testing. Samples are free, but you may need to pay the express cost.
Q: What's your delivery time?
A: Normally it takes 15-20 working days for production. If we get stock, it only takes two days.
