ACCURL Four Columu mini hydraulic manual hand press machine for car parts make line

ACCURL Four Columu mini hydraulic manual hand press machine for car parts make line

FOB Reference Price: Get Latest Price

≥1 Sets

US $26500

≥5 Sets

US $24100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Return Force (kN):: 630 kN

Place of Origin:: Anhui, China

Brand Name:: ACCURL

Year:: 2022

Voltage:: 220v/380v

Dimension(L*W*H):: 3500*1200*4850mm

Weight (T):: 2.5 T

Model Number:: YW32

Motor Power (kw):: 22 kw

Marketing Type:: Hot Product 2022

Core Components:: Motor; Pump

Opening Height:: 1500mm

Idle Down Slide Speed:: 100mm/s

Working Slide Speed:: 6-18mm/s

Return Slide Speed:: 120mm/s

Max Pressure Of Hydraulic:: 25Mpa

Function:: Metal Processing

Style:: Popular

Color:: Optional

Frame:: Integrate High Rigid Steel Frame

Quick Details

Machine Type:: Four-column Three-beam Hydraulic Press

Slide Stroke (mm):: 800

Ejector Force (kN):: 2200

Return Force (kN):: 630 kN

Place of Origin:: Anhui, China

Brand Name:: ACCURL

Year:: 2022

Voltage:: 220v/380v

Dimension(L*W*H):: 3500*1200*4850mm

Weight (T):: 2.5 T

Model Number:: YW32

Motor Power (kw):: 22 kw

Marketing Type:: Hot Product 2022

Core Components:: Motor; Pump

Opening Height:: 1500mm

Idle Down Slide Speed:: 100mm/s

Working Slide Speed:: 6-18mm/s

Return Slide Speed:: 120mm/s

Max Pressure Of Hydraulic:: 25Mpa

Function:: Metal Processing

Style:: Popular

Color:: Optional

Frame:: Integrate High Rigid Steel Frame

Product Features

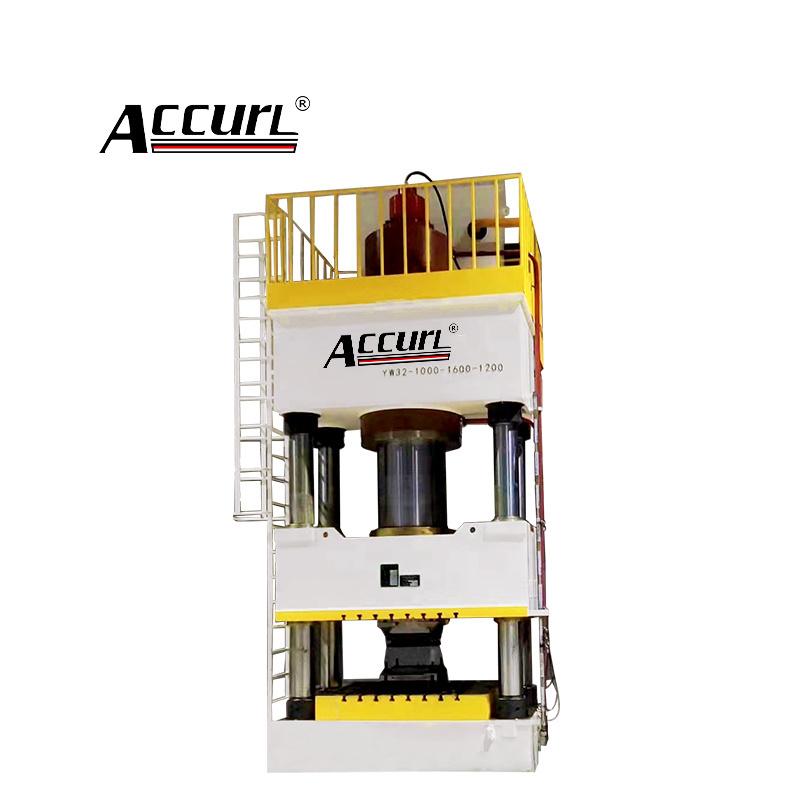

YW32 Series Four-Column Hydraulic Press

Product Application
The ACCURL® Hydraulic press, engineered with great care for details, is a high quality machine tool. The studies made on theframework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in deep drawing.
ACCURL® Hydraulic press designs and manufactures 2 or 4 Uprights Type Hydraulic Drawing Presses from 600 kN to 30000 kN for deep drawing, reverse drawing, embossing, bending, hydroforming and hot forging processes, both for steel / stainless steel production in the automotive, household white, thermo-hardening, try-out/ toolmaking and other industrial applications.

Product Overview

1. The structure of three beams and four columns is designed by the computer. It is easy and convenient;

2. The hydraulic control system adopts valve integrated system so that the work is secure, the operation is obvious and the maintenance is easy;

3. It adopts the button integrated system to adjust single and inch action. It can achieve two crafts , hold the pressure and delay the time. The working pressure and the stroke can be adjusted in regular range;

4. This series of press applies to the drawing, bending, punching, extruding and forming process of metal.. It also can apply to adjustment, punching, power production and plastic production.

hydraulic System

Accurl hydraulic and electrical systems are constantly custom designed to each machine, so give the best "performances" to individual presses, depending on its use so to maintain a good relationship "cost/benefit"

Machine Frame

Accurl machines are designed from the ground up by pur expert engineers with only one goal : to build the best machines imaginable. by combining our unique machine designs with the highest quality materials available, we have achieved our objective and inwented some of the most reliable and durable machines in the world

Double Guided RAM

The moving table sliding blocks, using an accurate adjustment system, ensure full contact on the guides throughout the sliding stroke, providing to the moving elements of the press the optimal parallellism accuracy.

Product Paramenters

Model(HBP)			YW32-315	YW32-400	YW32-500A	YW32-500B	YW32-500C	YW32-630A
Nominal Capacity	KN	3150	4000	5000	5000	5000	6300
Ejection Capacity	KN	630	630	900	1000	1000	2000
Stroke Of Slide	mm	800	800	900	900	900	900
Max Pressure Of Hydraulic	mpa	25	25	25	25	25	25
Opening Height	mm	1250	1500	2000	1300	2000	1500
Main Motor Power	KW	22	22	44	44	44	44
