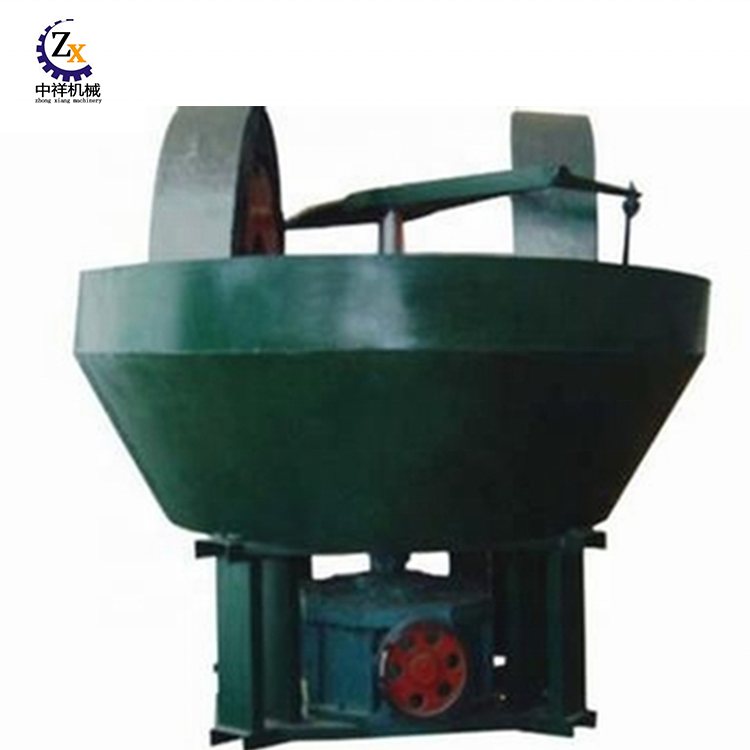

Large capacity 1200 type wet pan gold grinding mill machine

Large capacity 1200 type wet pan gold grinding mill machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

≥10 Sets

US $1300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: zhongxiang

Dimension(L*W*H):: 1200*200*80*250mm

Weight:: 1450 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Large capacity 1200 type wet pan gold grinding mill machine

Application:: Gold Ore

Installation:: Engineer's Guide

Spare parts supplying:: Lifelong Provide

Feeding size:: 25mm

Material:: white cast iron

Speed(r/min):: 17-19

Color:: as you required

Output size:: 0.02~0.3MM

Quick Details

Marketing Type:: New Product 2024

Type:: grinding gold mill

Capacity(t/h):: 1-20

Place of Origin:: China

Brand Name:: zhongxiang

Dimension(L*W*H):: 1200*200*80*250mm

Weight:: 1450 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Large capacity 1200 type wet pan gold grinding mill machine

Application:: Gold Ore

Installation:: Engineer's Guide

Spare parts supplying:: Lifelong Provide

Feeding size:: 25mm

Material:: white cast iron

Speed(r/min):: 17-19

Color:: as you required

Output size:: 0.02~0.3MM

Large capacity 1200 type wet pan gold grinding mill machine

Description of gold grinding machine:
The wet pan mill is mainly used for separating gold,sliver,lead,zinc,iron,molybdenum,copper,antioumy and so on.It is the excellent equipment which can instead of ball mill.Wet pan mill is perfect equipment for mediunsized and small enterprises.
Wet pan mill is also called wet grinding machine.It is praised by users because of it has the features of low investment,high production capacity,low consumption,good efficiency,easy installation and maintenace.

Application of 1200 model gold grinding machine:
Our grinding machine is mainly used for separation of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals selected. With less investment, fast results, small footprint saving power, sturdiness and durability, ease of maintenance and high return on investment. It is the preferred production for alternative ball mill, is ideal for small and medium enterprises dressing.

Gold grinding machine Specification:

Wet grinding machine is made of restructuring on the basis of conventional machine, For the traditional machines, the workpiece is large and short lifetime, electrical power large, installation cycle is long, the user can not immediately put into production, maintenance and replacement of materials need for large lifting equipment .

Technical Parameter

Model	Specification	Input size(mm)	Rotate Speed (r/min)	Powder(kw)	Weight(t)
1600A	1600×400×200×500±20mm	30mm	20-22	25KW	14.5
1500A	1500×350×200×460±20mm		20-22	22KW	13.5
1500B	1500×350×150×460±20mm		20-22	22KW	12.3
1500C	1500×300×150×420±20mm		20-22	22KW	11.3
1400A	1400×250×150×350±20mm		16-18	18.5kw	8.5
1400B	1400×250×150×350±20mm		21-23	18.5kw	8.5
1350A	1350×250×150×350±20mm		16-18	18.5kw	8
1350B	1350×250×150×350±20mm		21-23	18.5kw	8
1300A	1300×250×150×350±20mm		16-18	15kw	7.5
1300B	1300×250×150×350±20mm		21-23	15kw	7.5
1200A	1200×200×80×250±20mm		17-19	7.5kw	5.5
1200B	1200×200×80×250±20mm		23-25	7.5kw	5.5
1100A	1100×200×80×250±20mm		17-19	7.5kw	5
1100B	1100×200×80×250±20mm		23-25	7.5kw	5

1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
2.Guaranteed:
Our products are distributed throughout the world, being involved in more than Asia, Africa and South America countries and regions. And our products win the good reputation of our foreign customers.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
5. What’s the additional features of your company?
A: We have our own laboratory in the company, so the clients can take some samples to perform experiments on the spot. And our engineers will provide the best advice and choice for our clients.
