Quick Details
-
Rolling thinckness:
-
0.8-1.5mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Sanxing
-
Voltage:
-
customizable
-
Dimension(L*W*H):
-
10.6m*2.4m*2.3m
-
Weight:
-
12t
-
Raw material:
-
PPGI PPGL GI GL
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Application:
-
Roof Sheet Production
-
Certification:
-
CE
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15m/min
-
Rolling thinckness:
-
0.8-1.5mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Sanxing
-
Voltage:
-
customizable
-
Dimension(L*W*H):
-
10.6m*2.4m*2.3m
-
Weight:
-
12t
-
Raw material:
-
PPGI PPGL GI GL
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Application:
-
Roof Sheet Production
-
Certification:
-
CE

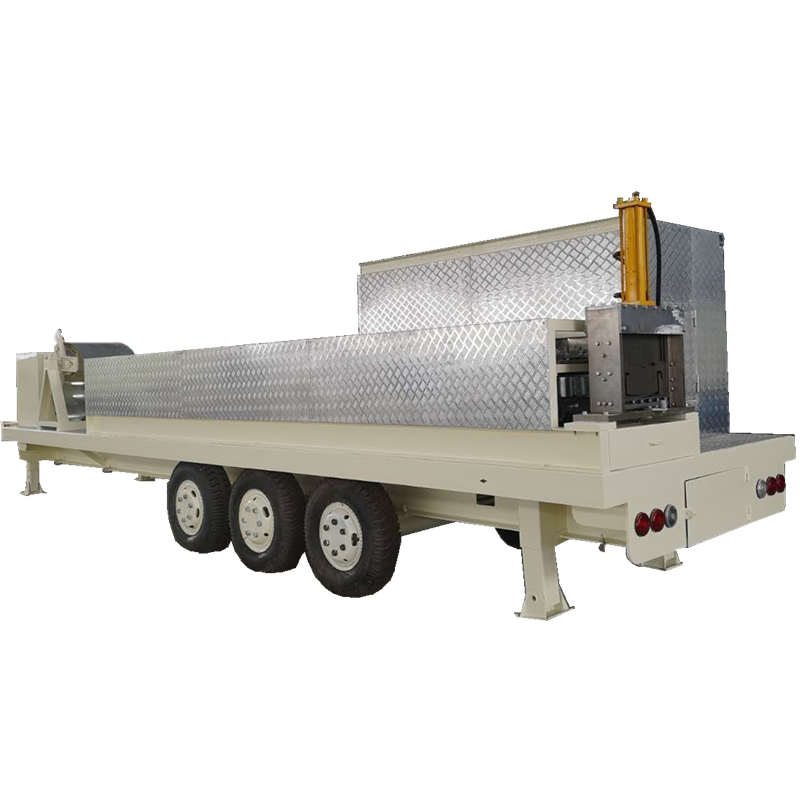

Note: A crane and a truck can be installed.
| The size of the machine with the crane | 10000mm × 2230mm × 2300mm |
| Electrical standard | 380V/50HZ/3PHASE |
| Material utilization | 68% |
| Suitable for long span | ≤30M/15M |
| Total Weight | 12000KG |
| Total power | 38 KW |
| Main motor of forming | 7.5 KW*1 |
| Motor for big gear | 7.5 KW*1 |
| Motor for small gear | 5.5 KW*1 |
| Motor of cutting | 4.0KW*1 |
| Motor with reducer for arch sheet | 5.5KW*1 +4.0KW*2 |
| Material of rollers | 45# steel and 60# steel, quenched HRC 58-62 |
| Material of roller shafts | 45# steel, quenched HRC 58-62 |
| Material of cutting blade | Cr12 1 Mov steel |
| Material of steel leaves | stainless steel |
| Step of rollers | 13 steps vertical type |
| Working Speed: straight part | 13m/min; bending: 6-8m/min;seaming:6m/min |
| Feeding width | 1000 mm |
| Effective width | 680 mm |
| Thickness of the coil | 0.8-1.5mm |
| Control System | The Omron PLC and CNC system |
Producible Shapes of Building
Other Alternative Model
We can put the machine in a 40 feet high container , and transport to the port which you designated by sea.
About Guarantee
We provide 10 years guarantee for some parts of machine.
About Design
We can design projects for free according to your requirements, and provide drawings.
About Training
If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense.
If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone.
