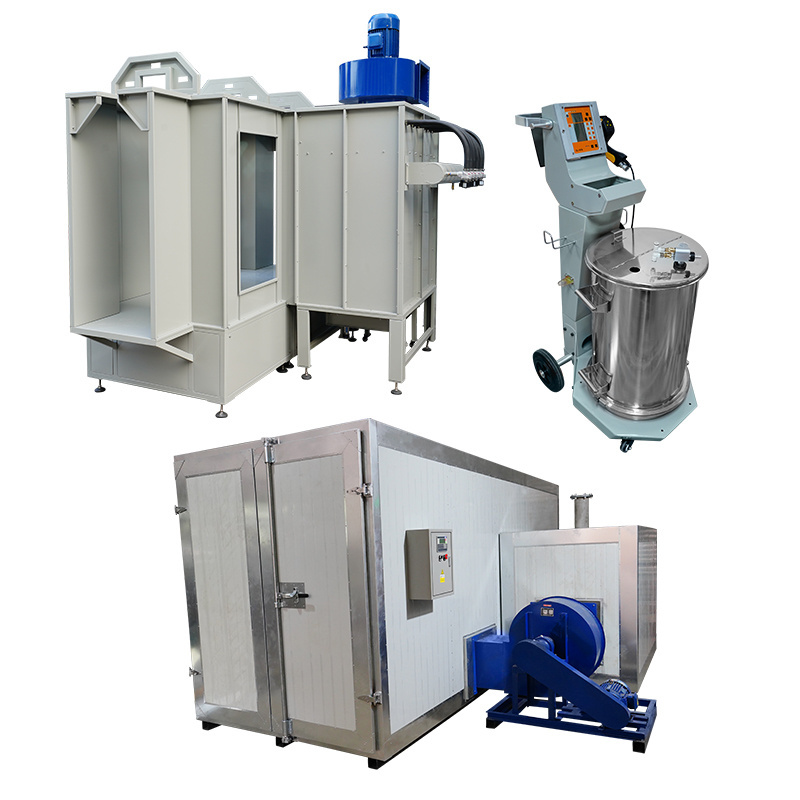

The powder coating package included electrostatic powder coating gun, powder spray booth and powder coating oven, it is a standard manual powder coating plant, suitable for processing larger metal products, such as aluminium profile, window frame, steel doors, fence, etc.
COLO-3212 Booth, working size
620width x 1500 height x 3000 depth (mm)
COLO-5219 Oven, working size 1900 Width x 1900 Height x 5000 Depth (mm)
Heat source: gas/ electric/ diesel/ infrared
COLO-191S vibrate type powder coating gun machine, it takes powder directly from the original box. No need replace and clean hoppers in color change.
Brand: COLO
Original:
China
The precise application and intuitive handing of COLO-191S in gun control technology, delivers excellent coating quality for high requirement industrial use, whether for simple panels or complex profiles.
|
Model
|
COLO-191S Series
|
|
Poweer range
|
100-240 V
|
|
Frequency
|
50/60HZ
|
|
Input power
|
50W
|
|
Temperature range in use
|
-10 - +50 ℃
|
|
Powder Gun
|
|
|
Gun weight:
|
500G
|
|
Input voltage
|
Max12V
|
|
Input current
|
Max1A
|
|
Maximum output current
|
180Ua(max)
|
|
Maximum output voltage
|
0-100KV ( adjustable)
|
|
Maximum powder injection
|
600g/min
|
|
Polarity
|
negative (-)
|
|
Pneumatic technical spec
|
|
|
Maximum input-air pressure
|
10 bar / 145 psi
|
|
Optimum input-air pressure
|
6 bar / 87 psi
|
|
Maximum water vapor content or compressed air
|
1.3 g/m3
|
|
Maximum oil vapor content of compressed air
|
0.1 mg/m3
|
|
Maximum cimpressed-air consumption
|
13.2 m3/h
|
Brand: KAFAN
Original: China
Operator dimensions:
With 6 self-cleaning filters.
The filter is 100% polyester ,common or imported materials can be supplied as request.
Common type filter avaliable sizs:
325*215*600mm; 325*215*900mm;
320*220*600mm; 320*220*900mm;
|
Model
|
COLO-3212
|
|
Operating Dimensions
|
Width620*Depth2920*Heght1500mm
|
|
Overall dimensions
|
Width1200*Depth3000*Heght2033mm
|
|
Weight
|
500kg
|
|
Power Supply
|
220V/380V, 3Phase, 50-60HZ
|
|
Fan Power
|
4kw
|
|
Filter Count
|
6 pcs, Quick-release Type
|
|
Filter Material
|
Polyester
|
|
Filter Cleaning
|
Pneumatic
|
Brand:
KAFAN
Original:
China
Worksize dimensions:
size can custom made .
Burner: Italy Riello, 10,0000cal
Transportation way: track on top or trolley on ground
This oven heat source can be choose by electric/gas/diesel/infrared.
|
Worksize Dimensions
|
1900 Width x 1900 Height x 5000 Depth (mm)
|
|
|
|
Oerall Dimensions
|
2100 Width x 2200 Height x 5200 Depth (mm)
|
|
|
|
Power Supply
|
PLG/GAS/Diesel
|
|
|
|
Voltage/Frequency
|
380/220V(50-60Hz)
|
|
|
|
Warm-up Time
|
15-30 Min. (180° C)
|
|
|
|
Temperature Stability
|
< ± 3.0-6°C
|
|
|
|
Temperature Max.
|
250° C
|
|
|
|
Color
|
Can Be Customized
|
|
|
|
Ventilation Performance
|
8288-16576m3/h
|
|
|
|
Motor Power
|
7.5KW
|
|
|
|
Circulation/ Air flow
|
Vertical ,Variable through holes on the walls
|
|
|
|
Warranty
|
12 months
|
|
|
