Quick Details
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Zhaga book20 series for indoor lighting, Zhaga book20 PIR motion sensor
-
Model Number:
-
HNS132DL
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
Zhaga book20 PIR motion sensor
-
Output:
-
DALI dimming, DALI
-
Name:
-
Zhaga book20 PIR sensor
-
Input voltage:
-
9.5 - 22.5V DC
-
Stand-by current consumption::
-
max. 8mA
-
Function:
-
movement detection
-
IP rating:
-
IP65
-
Usage:
-
DALI system
-
Warranty:
-
5 year
-
Operation temperature:
-
-10℃ ~ + 50℃.
Quick Details
-
Use:
-
lighting & lighting system
-
Series:
-
Zhaga book20 series
-
Features:
-
IP65 waterproof
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Zhaga book20 series for indoor lighting, Zhaga book20 PIR motion sensor
-
Model Number:
-
HNS132DL
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
Zhaga book20 PIR motion sensor
-
Output:
-
DALI dimming, DALI
-
Name:
-
Zhaga book20 PIR sensor
-
Input voltage:
-
9.5 - 22.5V DC
-
Stand-by current consumption::
-
max. 8mA
-
Function:
-
movement detection
-
IP rating:
-
IP65
-
Usage:
-
DALI system
-
Warranty:
-
5 year
-
Operation temperature:
-
-10℃ ~ + 50℃.

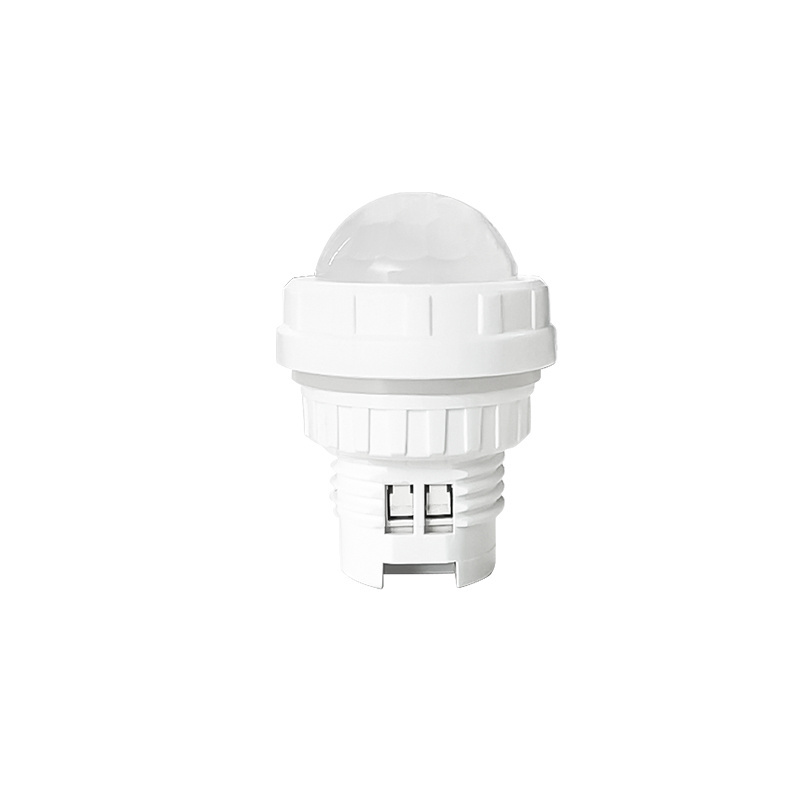

Model name: HNS132DL
DALI-2 multi-sensor input device
Zhaga book20 for indoor lighting
DALI-2 D4i PIR motion sensor
IP65 waterproof
Feature:
Both DALI & sensor power supply via: DALI-2.
Stand-by current consumption: max. 6mA.
Daylight sensor lux setting: 10-2,000 lux.
Individual adjustment of parameters with configuration software.
Super compact, ideal for office / commercial lighting.
D
4i approved, fully compatible with DALI Part 351(Type B).
Detection range: max. 6-8m in diameter.
Mounting height: max. 4m.
Operation temperature: -10°C ~ +50°C.
RoHS compliant.
IP rating: IP65.
DALI-2 & D4i standards
EN62386-101 Ed.2
EN62386-103 Ed.1
EN62386-303
EN62386-304
EN62386-351 Type B
Feature:
Both DALI & sensor power supply via: DALI-2.
Stand-by current consumption: max. 6mA.
Daylight sensor lux setting: 10-2,000 lux.
Individual adjustment of parameters with configuration software.
Super compact, ideal for office / commercial lighting.
D
4i approved, fully compatible with DALI Part 351(Type B).
Detection range: max. 6-8m in diameter.
Mounting height: max. 4m.
Operation temperature: -10°C ~ +50°C.
RoHS compliant.
IP rating: IP65.
DALI-2 & D4i standards
EN62386-101 Ed.2
EN62386-103 Ed.1
EN62386-303
EN62386-304
EN62386-351 Type B
Product information:
|
Zhaga book20
|
Single light
|
PIR+Daylight sensor
|
HNS132PIR/HNS132CLPIR
|
12V DC input, 0-10V output, tri-level dimming and daylight monitoring / constant luxfunction by remote control setting
|
|
|
|
Daylight sensor
|
|
12V DC input, 0-10V output, constant luxfunction by remote control setting
|
|
|
|
Daylight sensor+DALI
|
|
9.5-22.5V DC, DALI output, constant lux function, remote control and DALI BUS setting
|
|
|
|
PIR+DALI
|
|
9.5-22.5V DC, DALI output, DALI BUS setting input device
|
|
|
|
PIR+Daylight sensor+DALI
|
|
9.5-22.5V DC, DALI output, tri-level dimming and daylight monitoring function, remote control and DALI BUS setting
|
|
|
|
PIR+Daylight sensor+DALI
|
HNS132CLDLPIR
|
9.5-22.5V DC, DALI output, tri-level dimming and constant lux function, remote control and DALI BUS setting
|
|
|
SILVAIR bluetooth mesh
|
BLE+PIR+Daylight
|
HNB132PIR
|
12V DC input, 0-10V output, tri-level dimming and constant lux function by silvair bluetooth mesh APP control
|
|
|
SILVAIR bluetooth mesh+DALI 2.0 D4I
|
BLE+DALI+PIR+Daylight
|
HNB132DLPIR
|
9.5V-22.5V DC input, DALI output,tri-level dimming and daylight harvest, bluetooth mesh function by silvair bluetooth mesh APP control
|
|
|
|
DALI Bluetooth mesh converter
|
HNB132DL
|
9.5V-22.5V DC input, DALI output, bluetooth mesh function by silvair bluetooth mesh APP control
|
Product Description
Specification
Application Scene：
Indoor lighting
Certification:
Packing & Delivery
box size: 45*30*23cm inner box: 30*23*20cm
