Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ALXD
-
Dimension(L*W*H):
-
customised
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 180 ℃
-
Core Components:
-
Heater
-
Application:
-
Industry Heating Process
-
Usage:
-
High Temperature Electric Heating
-
Function:
-
Fast Heating
-
Insulation material:
-
Silione Rubber
-
Name:
-
Flexible Silicone Rubber Heater
-
Power:
-
1w-10000w
-
Shape:
-
Custtomised
-
Color:
-
Orange
-
Size:
-
Support Customized
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ALXD
-
Dimension(L*W*H):
-
customised
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 180 ℃
-
Core Components:
-
Heater
-
Application:
-
Industry Heating Process
-
Usage:
-
High Temperature Electric Heating
-
Function:
-
Fast Heating
-
Insulation material:
-
Silione Rubber
-
Name:
-
Flexible Silicone Rubber Heater
-
Power:
-
1w-10000w
-
Shape:
-
Custtomised
-
Color:
-
Orange
-
Size:
-
Support Customized
Products Description

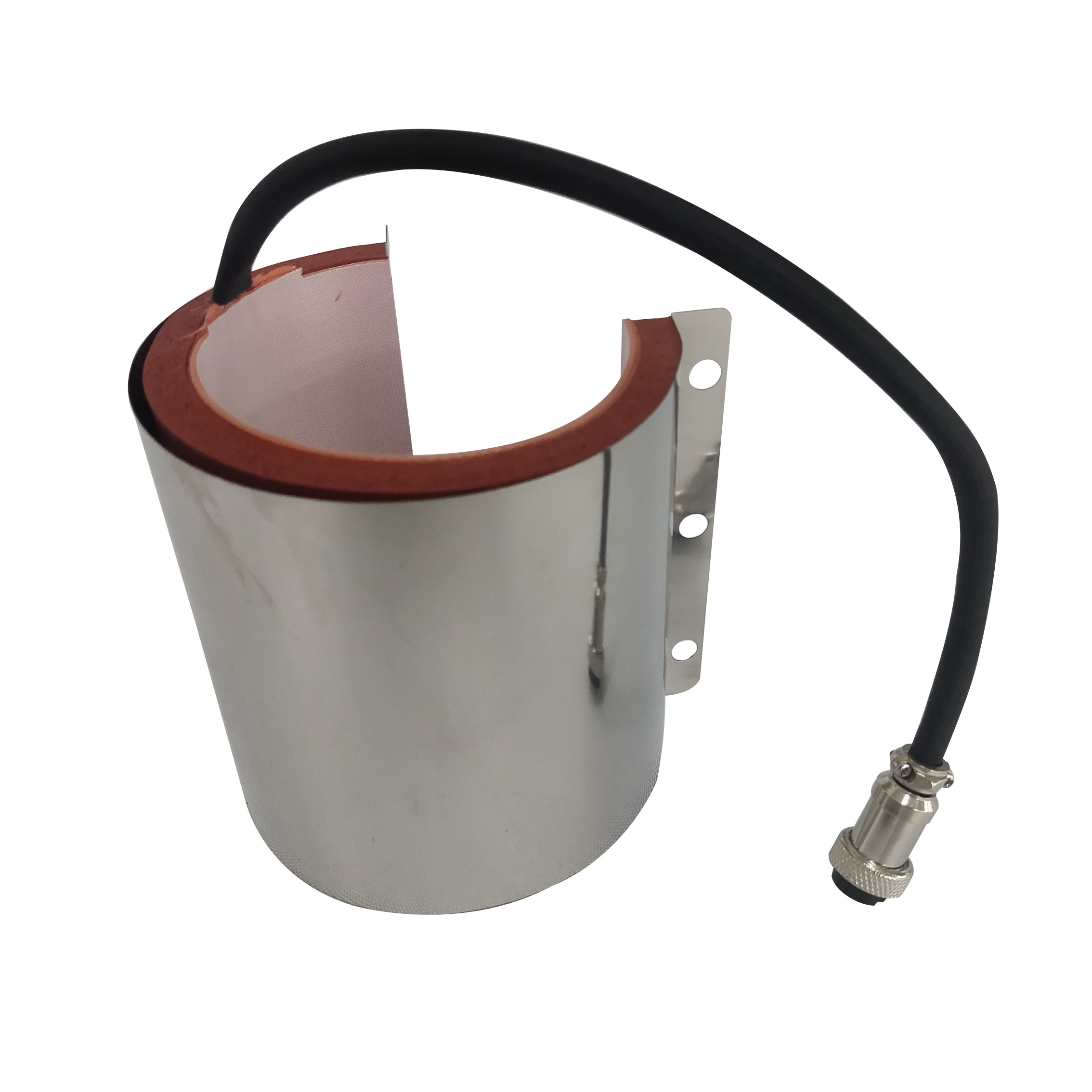

Electric Heater element Cup Heating Press Pad for mug heat press machine
Features:
1. Heating fast and long time using.
2. Flexible and customization.
3. Waterproof and non-toxic(coud custom Waterproof grad:IP68).
4. Custom Size .Voltage.Watt.Shape.
5. We can provide free design.
6. We carry many other silicone pad heaters in different sizes and watts.
1. Heating fast and long time using.
2. Flexible and customization.
3. Waterproof and non-toxic(coud custom Waterproof grad:IP68).
4. Custom Size .Voltage.Watt.Shape.
5. We can provide free design.
6. We carry many other silicone pad heaters in different sizes and watts.
|
|
|
|
Main Material
|
Silicone(V0,V1) and imported silicone V0 options
|
|
Temperature Rating
|
482°F(250°C)maximum operating
|
|
Size/Shape Limitations
|
Maximum width of 48 inches, no maximum length
|
|
Thickness
|
normally 0.03 inch/ 0.75mm (Single-Ply),0.06 inch / 1.5mm(Dual-Ply),support custom
|
|
Voltage
|
Any AC or DC (3V-660V), or 3phase
|
|
Power density
|
Normal 0.03-0.8watts per square centimeter,maximum 3W per square centimeter
|
|
Power lead wire
|
Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire options,usually 100cm length or as requested
|
|
Attachment
|
Hooks, lacing eyelets,Temperature sensors(NTC thermistor, PT100, PT1000, Thermocouple,etc), Temperature control(Thermostat),
|
|
Description
|
1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility.
2. It can improve heat
transfer, accelerate warming and decrease power under the process of operation.
3. They are heating fast and thermal conversion
efficiency high. |
