Quick Details
-
Brand Name:
-
Lunyee
-
Model Number:
-
ac Induction motor
-
Frequency:
-
50Hz 60Hz
-
Color:
-
Black or custom made
-
Product Name:
-

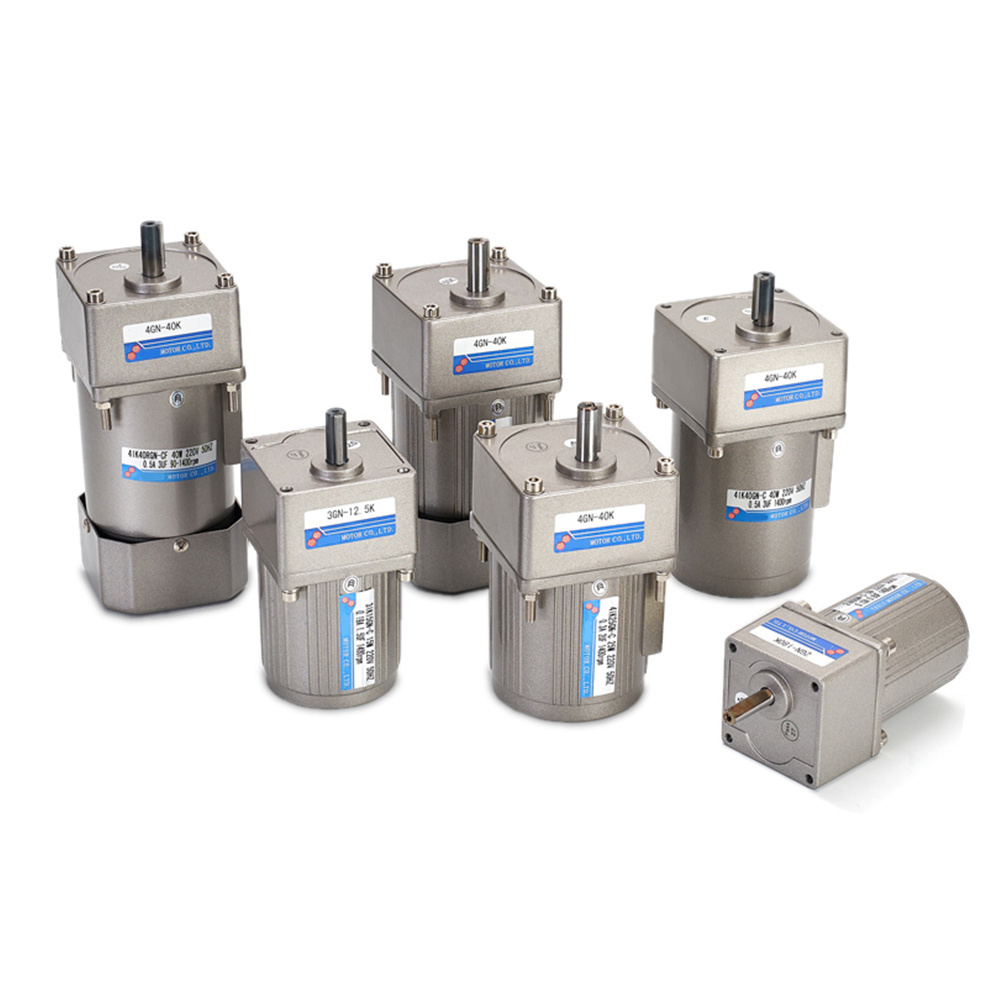

Induction AC gear motor
-
Application:
-
Industry Machine Household appliances
-
Flange Size:
-
60/80/90/104/120mm
-
Certification:
-
ce
-
Power:
-
6w-750w
-
Speed:
-
1350/1680rpm
-
Gearbox:
-
Parallel gearbox
-
Gear ratio:
-
3-200k
-
Accessories:
-
Brake; Fan ; Speed controller
Quick Details
-
AC Voltage:
-
110V/120v/220v/230v
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Model Number:
-
ac Induction motor
-
Frequency:
-
50Hz 60Hz
-
Color:
-
Black or custom made
-
Product Name:
-
Induction AC gear motor
-
Application:
-
Industry Machine Household appliances
-
Flange Size:
-
60/80/90/104/120mm
-
Certification:
-
ce
-
Power:
-
6w-750w
-
Speed:
-
1350/1680rpm
-
Gearbox:
-
Parallel gearbox
-
Gear ratio:
-
3-200k
-
Accessories:
-
Brake; Fan ; Speed controller
Product Overview
|
AC Motor models available
|
|
|
||
|
Motor Flange Size
|
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
||
|
Moter Type
|
|
AC induction Motor / speed-adjustable motor/ reservible motor/ brake motor
|
||
|
Output Power
|
|
6W / 15W / 25W / 40W / 60W / 90W / 120 W / 150w/ 180w/ 200W / 200W / 300W/ 370w/400w/ 750w (Can Be Customized)
|
||
|
Output Shaft
|
|
Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
|
||
|
Voltage type
|
|
AC single phase/ three phases 110V/120v/220v/ 380v /415v
|
||
|
Frequency
|
|
50/60Hz
|
||
|
Accessories
|
|
Electric Brake; speed controller
|
||
|
Gearbox frame size
|
|
60 mm / 70mm / 80mm / 90mm / 104mm /120mm
|
||
|
Gear Ratio
|
|
3K-200K
|
||
|
Type Of Pinion
|
|
GN Type / GU Type
|
||
|
Gearbox Type
|
|
Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox
|
||
NOTE:
How to select the suitable model of Motor?
1. Confirm your power supply : DC or AC
2. Confirm the voltage and output power you need ( Horsepower/ watts/ torque rated at full load speed)
3. Motor speed (rpm)
4. Application
5. Configuration/Frame (flange and shaft can be customized accroding to your requirement.
6. Accessories : braker, speed controller etc.
2. Confirm the voltage and output power you need ( Horsepower/ watts/ torque rated at full load speed)
3. Motor speed (rpm)
4. Application
5. Configuration/Frame (flange and shaft can be customized accroding to your requirement.
6. Accessories : braker, speed controller etc.
