Automatic deterg powder pack machine washing detergent powder filling packing machine

Automatic deterg powder pack machine washing detergent powder filling packing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12500

≥2 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 500

Voltage:: 220-380V

Place of Origin:: Guangdong, China

Brand Name:: OCPACK

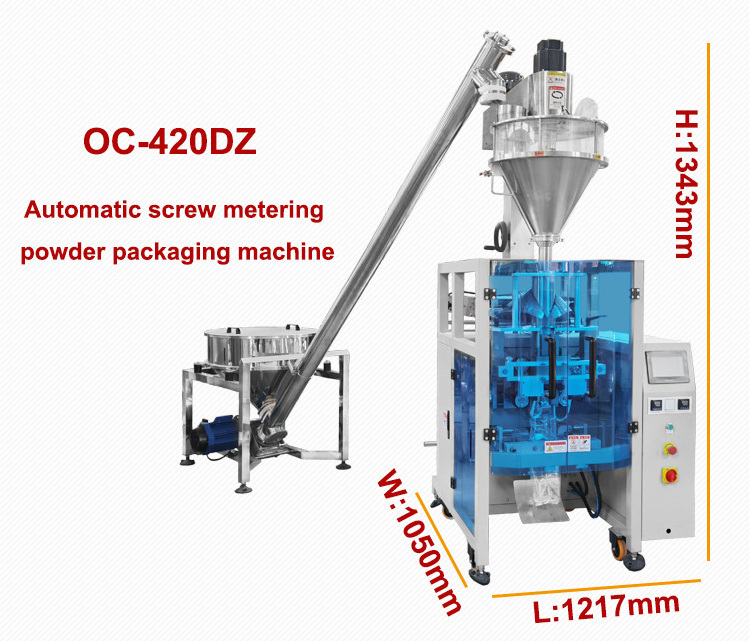

Dimension(L*W*H):: (L)1217*(W)1015*(H)1343mm

Modle packaging type:: Powder Packaging Machine

Measurement rang:: 500-1000ml

Packing speed:: 10-60bags/min

Film roll width:: Max.420mm

Film roll length:: Max.300mm

The biggest roll diameter:: Max.320mm

Film Thinkness:: 0.04-0.08mm

Packaging film material:: OPP/CPP,OPP/CE,MST/PE, PET ETC.

Power:: 220V,50/60HZ,2.2KVA

Net weight/Gross Weight:: 950kg/1000kg

Marketing Type:: New Product 2020

Quick Details

Function:: FILLING, Labeling, Sealing, SLITTING, Wrapping

Packaging Type:: Bags, CANS, case, Film, Foil, Pouch, Stand-up Pouch

Packaging Material:: Paper, Plastic, Heat-sealing film

Weight (KG):: 500

Voltage:: 220-380V

Place of Origin:: Guangdong, China

Brand Name:: OCPACK

Dimension(L*W*H):: (L)1217*(W)1015*(H)1343mm

Modle packaging type:: Powder Packaging Machine

Measurement rang:: 500-1000ml

Packing speed:: 10-60bags/min

Film roll width:: Max.420mm

Film roll length:: Max.300mm

The biggest roll diameter:: Max.320mm

Film Thinkness:: 0.04-0.08mm

Packaging film material:: OPP/CPP,OPP/CE,MST/PE, PET ETC.

Power:: 220V,50/60HZ,2.2KVA

Net weight/Gross Weight:: 950kg/1000kg

Marketing Type:: New Product 2020

Products Description

Technical specifications
Type	OC-420DZ	OC-520DZ	OC-720DZ
Film width	Max.420mm	Max.520mm	Max.720mm
Bag length	80~300mm	80~350mm	100~450mm
Bag width	60~200mm	80~250mm	100~350mm
Packing rate	5~60bags/min	10~50bags/min	10~40bags/min
Measuring range	150~1500ml	150~2000ml	150~4000ml
Machine weight	650KG	750KG	900KG

Application

>What do you want to pack?

Widely applied for Coffee powder,Cocoa powder,Protein powder,Milk powder,Flour,Salt powder,Pepper powder,Chili powder and so on.

Optional Devices

It can be equipped with date coding device, nitrogen gas filling device, easy tear device, punching device, gusset device, etc.

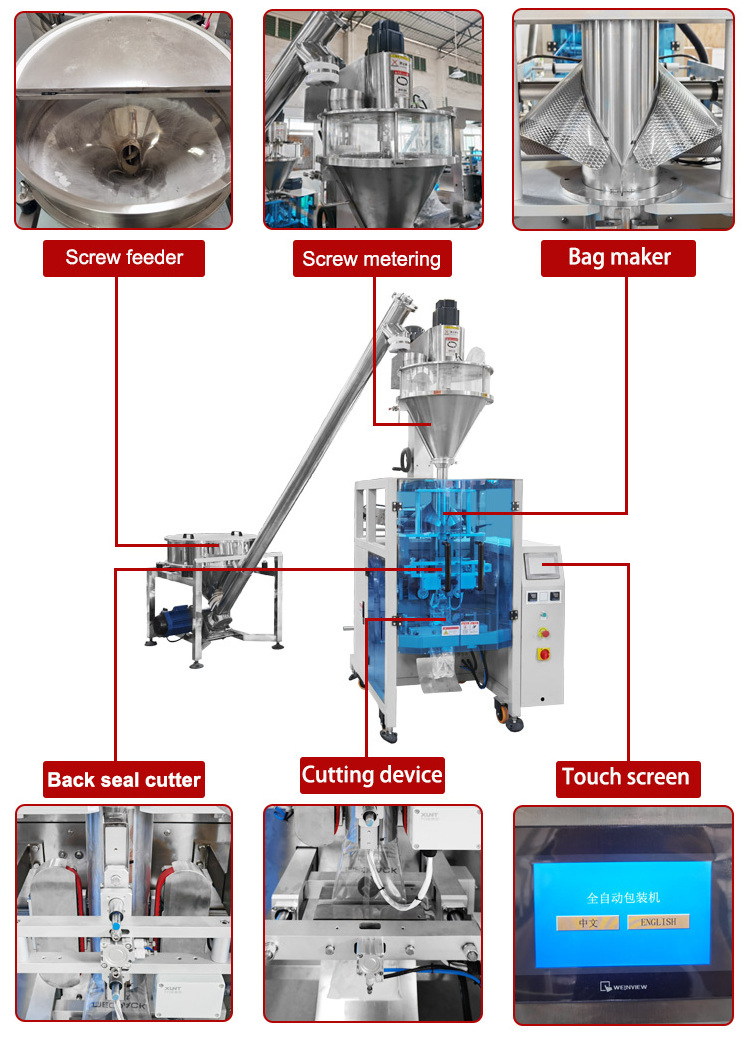

Machine display

Touch Screen

Brand: Weinview/Siemens or customized according to your needs

Language: You can choose seven languages, For example: English, Russian,Spanish, French,etc. You can also customize the language as needed.

Function: You can set and change the weight of the packaging material and the length of the bag

Volume Hopper

Name: Square/Round Automatic Feeder Machine
Material: Food Grade 304 Stainless Steel
Volume Size: 50L
Feature: 1. Structure is simple, reliable, easy to maintain.
2. Rotting screw feeding machine, independent mixing material system, servo coding, micro computer control technology is the largest machine.

Measuring Type

Name: Automatic Auger metering device
Material: Food Grade 304 Stainless Steel
Feature:
1. Stainless steel 304 contact parts.
2. Suitable to package free-flowing or poor-flowing powder.
3. Filling the powder we used the servo motor, the feature is high speed, High precision, long life etc.
4. For flowable materials together with the corresponding discharge port o valve to prevent material off.

Cutting & Sealing Parts

*It is Stainless steel of material to making it will than the iron will be strong more, he life can using more then 2 years. *Customized sealing patterns and notch or automatic punching device. Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature control.
