MIA 7000 m3/h Indoor Cooling Wind Air Circulating 12" Floor Mount Free Standing Fan With Remote Control

MIA 7000 m3/h Indoor Cooling Wind Air Circulating 12" Floor Mount Free Standing Fan With Remote Control

FOB Reference Price: Get Latest Price

≥1 Sets

US $2565

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filter:: Early Effect Activated Carbon+HEPA (H13)

Voltage:: AC220V

Power:: 2.55 K W

Air Flow:: 7000 m3/h

Heat recovery Rate:: 85-91%

Noise:: 65 dB(A)

Size:: 1320*1160*550mm

Hole Diameter:: 328*289mm

Color:: Customize

Certification:: RoHS CE EMC ERP LVD ISO9001

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: MIA

Model Number:: MIA-AHE700GL

Filter:: Early Effect Activated Carbon+HEPA (H13)

Voltage:: AC220V

Power:: 2.55 K W

Air Flow:: 7000 m3/h

Heat recovery Rate:: 85-91%

Noise:: 65 dB(A)

Size:: 1320*1160*550mm

Hole Diameter:: 328*289mm

Color:: Customize

Certification:: RoHS CE EMC ERP LVD ISO9001

Note:

This page only displays the EXW price and distributor price. Please contact us before placing an order to confirm order details and total cost, including shipping and other costs.

Contacts:

Contact: Anne Wang
Email:anne.miavent@miachina.net
Tel: 0086 400 600 1732
Mob/ WA/ : 0086 17761909290
Web: www.miachina.net

Product Desicription

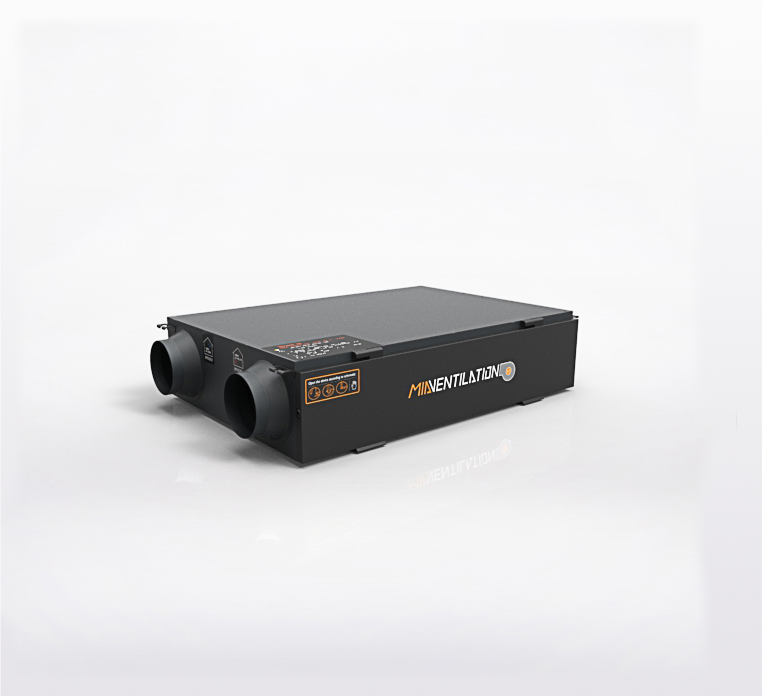

MIA 800~8500cmh High Efficiency Counterflow Compact Vertical Ceiling Mounted Heat Recovery Ventilation System

Energy Recovery Exchange principle

Inside Setting

Energy Recovery Exchanger

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange;with the washable material，also can avoid the problem of bacteria and molds production.

Early Effect + Activated Carbon

The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, it can filter dust particle eficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

High Efficiency H13 Hepa Filter (Optional)

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA (European standard-H13). The PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Dust Collection (Optional)

With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It' s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It' s washable, also can be cleaned with brush, and will not increase the using cost.

Controller

MIA-A900

1. Three-speed control

2. The display of temperature and humidity indoor
3. Manual / automatic mode switching
4. The display of PM2.5 and PM10
5. VOC display
6. Filter replacement reminder
7. Bypass / Inner loop / Electrostatic interface
8. WIFI (APP) control

MIA-CY

1. Three-speed control

2. Time setting
3. Filter replacement reminder
4. Indoor temperature dsiplay

5. RS485

MIA-6G

1. Three-speed control

2. The display of temperature and humidity indoor
3. Time setting
4. Filter replacement reminder
5. Bypass / Inner loop / Electrostatic interface

6. PM2.5 display

7. Date and time display

8. WIFI (APP) control

Technical Parameters

How to choose the model?

1. MIA-AHE·N: Ceiling mounted energy recovery ventilator with Early Effect + Activated Carbon Filter.

2. MIA-AHE·GL: Ceiling mounted energy recovery ventilator with Early Effect + Activated Carbon Filter and HEPA H13 Filter .

3. MIA-AHE·JDN: Ceiling mounted energy recovery ventilator with Early Effect + Activated Carbon Filter, HEPA H13 Filter and High-voltage Electrostatic Dust Collection Filter.

Model	Voltage	Power	Volume	Pressure	Efficiency	Noise	Motor
MIA-AHE80N	220V	180W	800m3/h	160Pa	86%~91%	36dB(A)	AC
MIA-AHE100N	220V	260W	1000m3/h	170Pa	86%~91%	36dB(A)	AC
MIA-AHE130N	220V	265W	1300m3/h	170Pa	87%~91%	38dB(A)	AC
MIA-AHE150N	220V	285W	1500m3/h	175Pa	85%~88%	44dB(A)	AC
MIA-AHE170N	220V	310W	1700m3/h	180Pa	86%~88%	46dB(A)	AC
MIA-AHE200N	220V	330W	2000m3/h	205Pa	85%~90%	48dB(A)	AC
MIA-AHE220N	220V	340W	2200m3/h	210Pa	85%~90%	49dB(A)	AC
MIA-AHE250N	220V	360W	2500m3/h	260Pa	85%~89%	51dB(A)	AC
MIA-AHE300N	220V	480W	3000m3/h	260Pa	87%~91%	52dB(A)	AC
MIA-AHE350N	220V	560W	3500m3/h	265Pa	86%~91%	55dB(A)	AC
MIA-AHE400N	220V	600W	4000m3/h	280Pa	86%~92%	57dB(A)	AC
MIA-AHE450N	220V	780W	4500m3/h	285Pa	86%~91%	61dB(A)	AC
MIA-AHE500N	220V	900W	5000m3/h	320Pa	86%~90%	64dB(A)	AC
MIA-AHE550N	220V	980W	5500m3/h	320Pa	86%~91%	64dB(A)	AC
MIA-AHE600N	220V	1100W	6000m3/h	330Pa	85%~91%	65dB(A)	AC
MIA-AHE700N	220V	2.2KW	7000m3/h	350Pa	85%~91%	65dB(A)	AC
MIA-AHE750N	220V	2.8KW	7500m3/h	350Pa	84%~90%	65dB(A)	AC
MIA-AHE800N	220V	3.6KW	8000m3/h	360Pa	83%~91%	66dB(A)	AC
MIA-AHE850N	220V	4.1KW	8500m3/h	365Pa	83%~90%	66dB(A)	AC

Model	Voltage	Power	Volume	Pressure	Efficiency	Noise	Motor
MIA-AHE80GL	220V	188W	800m3/h	160Pa	86%~91%	36dB(A)	AC
MIA-AHE100GL	220V	266W	1000m3/h	170Pa	86%~91%	36dB(A)	AC
MIA-AHE130GL	220V	272W	1300m3/h	170Pa	87%~91%	38dB(A)	AC
MIA-AHE150GL	220V	298W	1500m3/h	175Pa	85%~88%	44dB(A)	AC
MIA-AHE170GL	220V	315W	1700m3/h	180Pa	86%~88%	46dB(A)	AC
MIA-AHE200GL	220V	335W	2000m3/h	205Pa	85%~90%	48dB(A)	AC
MIA-AHE220GL	220V	352W	2200m3/h	210Pa	85%~90%	49dB(A)	AC
MIA-AHE250GL	220V	420W	2500m3/h	260Pa	85%~89%	51dB(A)	AC
MIA-AHE300GL	220V	510W	3000m3/h	260Pa	87%~91%	52dB(A)	AC
MIA-AHE350GL	220V	580W	3500m3/h	265Pa	86%~91%	55dB(A)	AC
MIA-AHE400GL	220V	710W	4000m3/h	280Pa	86%~92%	57dB(A)	AC
MIA-AHE450GL	220V	820W	4500m3/h	285Pa	86%~91%	61dB(A)	AC
MIA-AHE500GL	220V	920W	5000m3/h	320Pa	86%~90%	64dB(A)	AC
MIA-AHE550GL	220V	1020W	5500m3/h	320Pa	86%~91%	64dB(A)	AC
MIA-AHE600GL	220V	1280W	6000m3/h	330Pa	85%~91%	65dB(A)	AC
MIA-AHE700GL	220V	2.55KW	7000m3/h	350Pa	85%~91%	65dB(A)	AC
MIA-AHE750GL	220V	3.46KW	7500m3/h	350Pa	84%~90%	65dB(A)	AC
MIA-AHE800GL	220V	3.88KW	8000m3/h	360Pa	83%~91%	66dB(A)	AC
MIA-AHE850GL	220V	4.42KW	8500m3/h	365Pa	83%~90%	66dB(A)	AC

Model	Voltage	Power	Volume	Pressure	Efficiency	Noise	Motor
MIA-AHE80JDN	220V	188W	800m3/h	160Pa	86%~91%	36dB(A)	AC
MIA-AHE100JDN	220V	266W	1000m3/h	170Pa	86%~91%	36dB(A)	AC
MIA-AHE130JDN	220V	272W	1300m3/h	170Pa	87%~91%	38dB(A)	AC
MIA-AHE150JDN	220V	298W	1500m3/h	175Pa	85%~88%	44dB(A)	AC
MIA-AHE170JDN	220V	315W	1700m3/h	180Pa	86%~88%	46dB(A)	AC
MIA-AHE200JDN	220V	335W	2000m3/h	205Pa	85%~90%	48dB(A)	AC
MIA-AHE220JDN	220V	352W	2200m3/h	210Pa	85%~90%	49dB(A)	AC
MIA-AHE250JDN	220V	420W	2500m3/h	260Pa	85%~89%	51dB(A)	AC
MIA-AHE300JDN	220V	510W	3000m3/h	260Pa	87%~91%	52dB(A)	AC
MIA-AHE350JDN	220V	580W	3500m3/h	265Pa	86%~91%	55dB(A)	AC
MIA-AHE400JDN	220V	710W	4000m3/h	280Pa	86%~92%	57dB(A)	AC
MIA-AHE450JDN	220V	820W	4500m3/h	285Pa	86%~91%	61dB(A)	AC
MIA-AHE500JDN	220V	920W	5000m3/h	320Pa	86%~90%	64dB(A)	AC
MIA-AHE550JDN	220V	1020W	5500m3/h	320Pa	86%~91%	64dB(A)	AC
MIA-AHE600JDN	220V	1280W	6000m3/h	330Pa	85%~91%	65dB(A)	AC
MIA-AHE700JDN	220V	2.55KW	7000m3/h	350Pa	85%~91%	65dB(A)	AC
MIA-AHE750JDN	220V	3.46KW	7500m3/h	350Pa	84%~90%	65dB(A)	AC
MIA-AHE800JDN	220V	3.88KW	8000m3/h	360Pa	83%~91%	66dB(A)	AC
MIA-AHE850JDN	220V	4.42KW	8500m3/h	365Pa	83%~90%	66dB(A)	AC
