Quick Details
-
Voltage:
-
380
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2150*110**1850
-
Weight:
-
1700 kg
-
Paper Cup Size:
-
3-16oz
-
Cup Side Welding:
-
Copper Heater
-
Name:
-
Price Of Paper Cups Machine Paper Cup Machines
-
Speed:
-
70-90 PCS/minute
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
India
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Production Capacity:
-
90 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
xinlei
-
Voltage:
-
380
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
2150*110**1850
-
Weight:
-
1700 kg
-
Paper Cup Size:
-
3-16oz
-
Cup Side Welding:
-
Copper Heater
-
Name:
-
Price Of Paper Cups Machine Paper Cup Machines
-
Speed:
-
70-90 PCS/minute
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
India
-
Certification:
-
ce
-
After-sales Service Provided:
-
Video technical support
Products Description

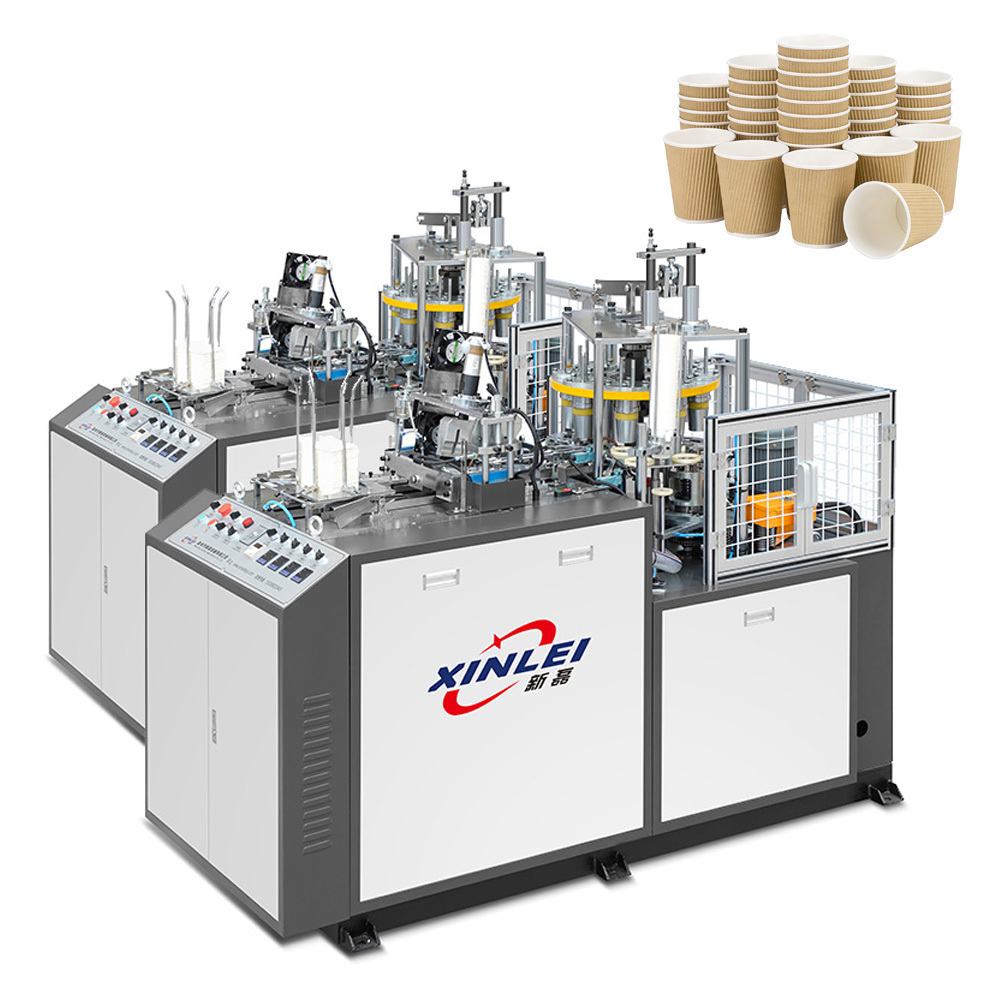

PAPER CUP MACHINE
The working principle of our paper cup machine is that a main motor drives the whole machine to work, which realizes the perfect integration of chain and cam structure. Now the machine uses a single aluminum plate to replace the previous three plate machine, which greatly reduces the machine failure rate and reduces the training time for the operator. 3-9oz single and double coated paper cups can be customized according to customer requirements. It is a fully automatic paper cup forming equipment, through multi-row automatic paper feeding, paper anti-return device (to ensure accurate positioning), ultrasonic or copper strip welding, mechanical hand paper tube transfer, oil injection, bottom punching, bottom folding, preheating, and rolling Continuous processes such as flower and cup unloading can stably produce paper cups of various specifications. It is a paper cup equipment independently developed by our company that has undergone comprehensive technical improvements to improve the stability of the whole machine.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Price Of Paper Cups Machine Paper Cup Machines
|
Model
|
XL-DP09
|
|
Production speed
|
70-90 pcs/min
|
|
Voltage
|
380V/50hz
|
|
Overall dimension
|
2100*1100*1700mm
|
|
Paper stock
|
180-350g
|
|
Power
|
5.5KW
|
|
Weight
|
1700Kg
|
