CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine
CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine

CANMAX Manufacturer Low Price Easy Operation Automatic Precast Column Molding Prestress Concrete Beams Pressing Forming Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $9025
≥5 Sets
US $3800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
CANMAX
Voltage:
380V/50HZ
Power:
15KW
Dimension(L*W*H):
2700x1500x1000mm
Weight:
2300 kg
Features:
flat pushing
Raw materials:
Concrete
Product name:
Low Price Precast Prestressed Concrete Beams Prices Forming Machine
Usage:
Precast Buildings
Keywords:
Prestressed Concrete Hollow Slab Forming Machine
Type:
Sandwich Wall Panel Forming Machine
Use:
Concrete Hollow Core Slab Used
Main process:
Forming Demoulding
Finished products:
Hollow Core Wall Panel
Wall panel Type:
Acotec Wall Panels
Use1:
Lightweight Hollow Core Wall Panel Machine

Quick Details

Application:
produce concrete lintel and beam
Production Capacity:
1.3-1.5m/min
Place of Origin:
Shandong, China
Brand Name:
CANMAX
Voltage:
380V/50HZ
Power:
15KW
Dimension(L*W*H):
2700x1500x1000mm
Weight:
2300 kg
Features:
flat pushing
Raw materials:
Concrete
Product name:
Low Price Precast Prestressed Concrete Beams Prices Forming Machine
Usage:
Precast Buildings
Keywords:
Prestressed Concrete Hollow Slab Forming Machine
Type:
Sandwich Wall Panel Forming Machine
Use:
Concrete Hollow Core Slab Used
Main process:
Forming Demoulding
Finished products:
Hollow Core Wall Panel
Wall panel Type:
Acotec Wall Panels
Use1:
Lightweight Hollow Core Wall Panel Machine

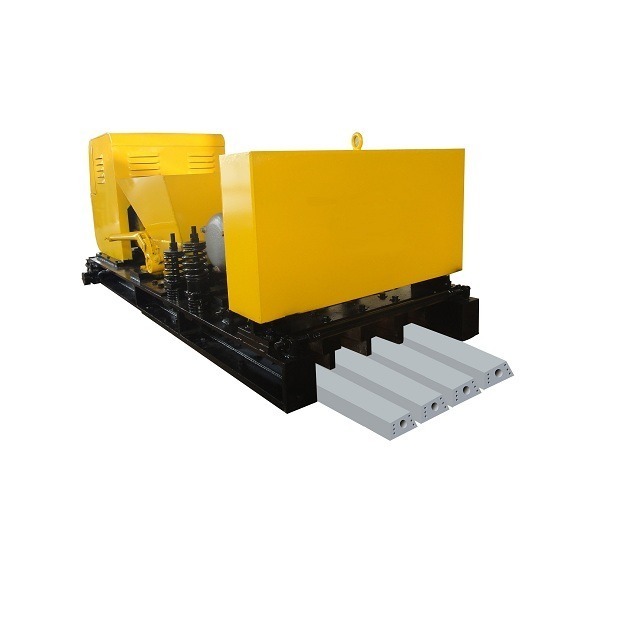

Prestressed concrete Lintel,Beam making Machine description
1. The machine is used for the production of precast concrete lintel,precast concrete beam,precast concrete pillar.
2. The machine uses slipformer and extruder technology.
3. The raw materials are cement, sand and aggregate.
4. The machine can make 1.4-1.6m/min precast concrete lintel,precast concrete beam,precast concrete pillar .
5. The prestressing system can prestress the steel wire.
6. The machine can make different sizes of precast concrete lintel,precast concrete beam,precast concrete pillar .
Prestressed concrete Lintel,Beam making Machine specification
Specification of Prestressed concrete Beam making Machine
Concrete beam forming machine
Motor power(kw)
Vibrator
Power
Forming speed (m/min)
Holes No.
Dia. of holes
Dimension
LxWxH(m)
Weight
(kg)
120x370
4.0
1.5
1.2-1.4
3
Φ70
2.05x0.65x0.67
810
120x370x2
5.5
3.0
1.2-1.4
6
Φ70
2.05x1.04x0.67
1320
120x240
3.0
0.8
1.2-1.4
2
Φ70
2.00x0.50x0.67
640
120x240x2
4.0
2.2
1.2-1.4
4
Φ70
2.10x0.80x0.70
960
180x240
4.0
1.5
1.2-1.4
1
Φ70
2.10x0.85x0.72
840
120x240+120x370
5.5
3.0
1.2-1.4
2
Φ70
2.10x0.85x0.72
1134
(120+180)x370
4.0
2.2
1.2-1.4
3
Φ70
2.10x0.65x0.75
850
200x180x3
7.5
3.0
1.2-1.4
3
Φ100
2.10x0.88x0.75
1300
The Prestressed concrete Beam making Machine can be customized according to the concrete beam sizes required by the customer.
Concrete Beam,Lintel,H beam,T beam machine
Our slipform machine can produce solid slabs, boundary wall panels,fence panels, concrete beams, concrete lintels, concrete H beams,concrete T beam, we can design the machines according to your drawings of elements.
Finished product
Our services
* The technical supporting all the time 7x24hours
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
