Quick Details
-
Model Number:
-
JCW-WP03
-
Function:
-
Unwinde cable, double direction
-
Raw material:
-
PVC, PUR, Rubber, Tefzel, Kapton, etc
-
After-sales service:
-
Lifelong
-
Roll Weight:
-
40KG (50KG is customizable )
-
Power supply:
-
AC 220V 50/60Hz
-
Certification:
-
CE
-
Advantage:
-
10 sensor, detect wire jam, sound alarm
-
Dimension:
-
L120 x W800 x H1000mm
-
Weight:
-
50KG
-
Warranty:
-
12 months
Quick Details
-
Use:
-
Stripping
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCWelec
-
Model Number:
-
JCW-WP03
-
Function:
-
Unwinde cable, double direction
-
Raw material:
-
PVC, PUR, Rubber, Tefzel, Kapton, etc
-
After-sales service:
-
Lifelong
-
Roll Weight:
-
40KG (50KG is customizable )
-
Power supply:
-
AC 220V 50/60Hz
-
Certification:
-
CE
-
Advantage:
-
10 sensor, detect wire jam, sound alarm
-
Dimension:
-
L120 x W800 x H1000mm
-
Weight:
-
50KG
-
Warranty:
-
12 months
|
Model
|
JCW-WP03 Automatic Double Drums Wire Prefeeding Unit
|
|
Wire diameter
|
0.5 - 8 mm
|
|
Wire drum diameter
|
400 mm
|
|
Wire drum width
|
300 mm
|
|
Wire drum weight
|
40 kg x 2 reels
|
|
Rated power
|
1100 W
|
|
Power supply
|
AC 220V, 50 / 60 Hz [ 110V on request ]
|
|
Dimensions
|
L 1100 x W 840 x H 1020 mm
|
|
Weight
|
65 KG
|
|
CE-Conformity
|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
|

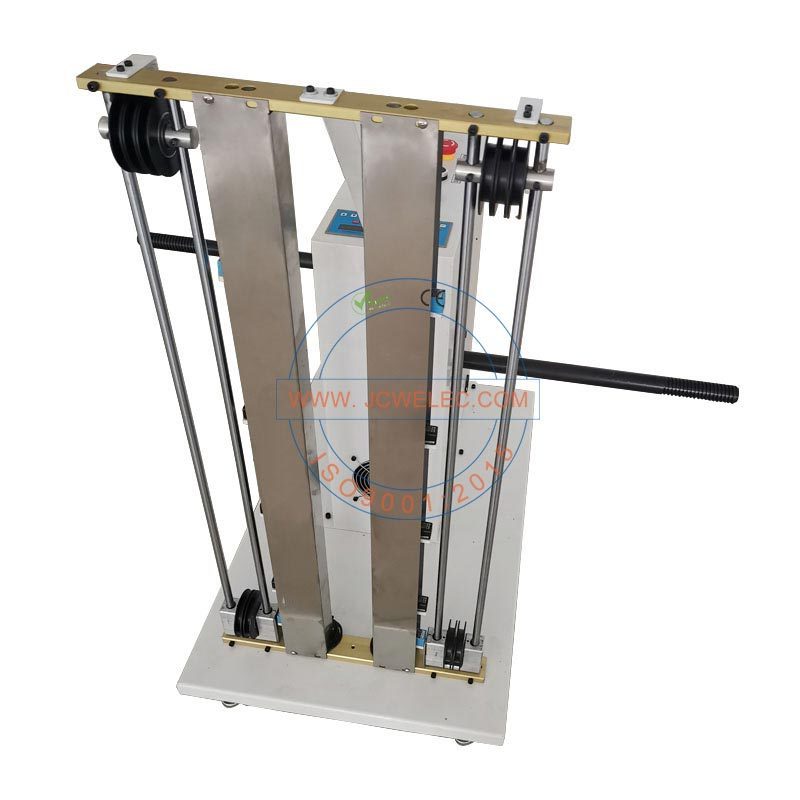

Automatic Double Drums Wire Prefeeding Unit
JCW-WP03
Infinitely variable speed model
Capable to load 2 cable drums
Constant speed of the guide rail without resistance
Two-way drive, clockwise & anti-clock
10 gears adjustable speed
Automatic induction with independent braking system
Active wire feeding and prefeeding
Controllable by the wire processing machine
JCW-WP03
Infinitely variable speed model
Capable to load 2 cable drums
Constant speed of the guide rail without resistance
Two-way drive, clockwise & anti-clock
10 gears adjustable speed
Automatic induction with independent braking system
Active wire feeding and prefeeding
Controllable by the wire processing machine
