Quick Details
-
Type:
-
ALL parts
-
Engine Model:
-
170F 173F 178F 186F 186FA 188F 192F 195F
-
sales method:
-
retail,small amount,bulk trade
-
Delivery time:
-
7-15days
-
USE FOR:
-
tractors pumps tiller generator
-
Quality:
-
100%tested reliable
-
Brand:
-
bestrong/oem/original/nobrand
-
main model 1:
-
170F/173F/178F/186F
-
main model 2:
-
186FA/188F/192F/195F
Quick Details
-
Weight (KG):
-
0
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BESTRONG/OEM/NOBRAND/OTHER
-
Type:
-
ALL parts
-
Engine Model:
-
170F 173F 178F 186F 186FA 188F 192F 195F
-
sales method:
-
retail,small amount,bulk trade
-
Delivery time:
-
7-15days
-
USE FOR:
-
tractors pumps tiller generator
-
Quality:
-
100%tested reliable
-
Brand:
-
bestrong/oem/original/nobrand
-
main model 1:
-
170F/173F/178F/186F
-
main model 2:
-
186FA/188F/192F/195F

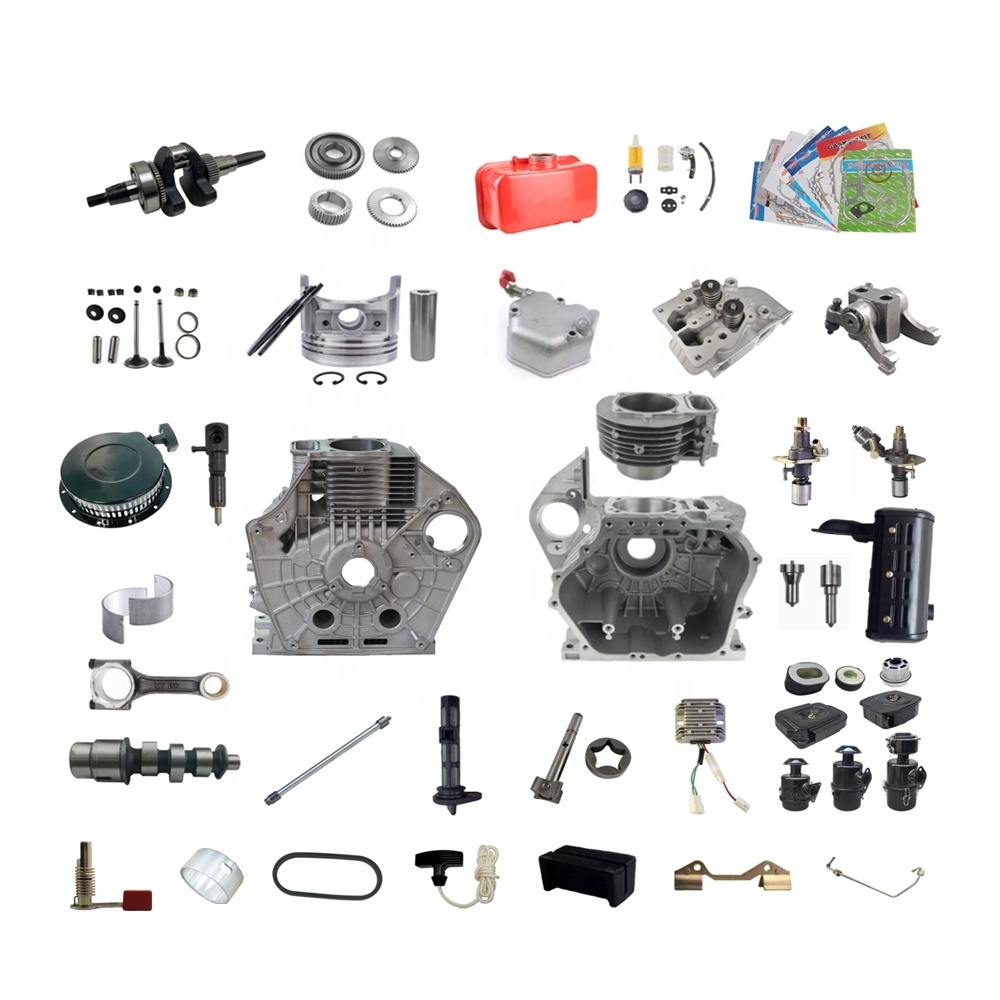

SPARE PARTS FOR
170F
173F
178F/178FS
186F/186FA/186FS
188F/188FA/188FS
192F/192FA
195F
CATALOG
1.CYLINDER BLOCK ASSEMBLY
| NO. | PRODUCT NAME. | QTY |
| 1 | Drain Plug | 1 |
| 2 | Oil Piug Seal Assem | 1 |
| 3 | Oil Seal | 1 |
| 4 | Cylinder Block | 1 |
| 5 | Fuel Controller Assem | 1 |
| 6 | O-Ring | 2 |
| 7 | Oil Filler Cap | 2 |
| 8 | Needle Bearing | 2 |
| 9 | Stud Plate(Short) | 1 |
| 10 | Stud Plate(Long) | 2 |
| 11 | Fuel Injection Pump Gasket | 3 |
| 12 | Seal Gasket | 1 |
| 13 | Seal Plate | 1 |
| 14 | Nut M6 | 3 |
| 15 | Retainer | 1 |
| 17 | Bolt | 1 |
| 18 | Needle Bearing | 1 |
| 19 | Cylinder Head Stud(Short) | 2 |
| 20 | Cylinder Head Washer | 4 |
| 21 | Cylinder Head Nut(Short) | 2 |
| 22 | Cylinder Head Gasket | 1 |
| 23 | Cylinder Head Nut(Long) | 2 |
| 24 | Cylinder Head Stud(Long) | 2 |
| 25 | Rectangle Ring | 1 |
| 26 | Crank Case Gasket | 1 |
| 27 | Ball Bearing | 1 |
| 28 | Main Bearing | 1 |
| 29 | Pin | 2 |
| 30 | Crank Case Cover | 1 |
| 31 | Oil Seal | 1 |
| 32 | Bolt | 15 |
| 33 | Plug | 1 |
| 36 | Bolt | 1 |
| 37 | Air Gover | 1 |
| 38 | Air Gover Collar | 1 |
| 39 | Shock Absorber | 1 |
| 40 | Shock Absorber Seat | 1 |
2.CYLINDER HEAD ASSEMBLY
| NO. | PRODUCT NAME. | QTY |
| 1 | Air intake Gasket | 1 |
| 2 | Cylinder Head | 1 |
| 3 | Intake Valve | 1 |
| 4 | Exhaust Valve | 1 |
| 5 | Silencer Gasket | 1 |
| 6 | Pin | 1 |
| 7 | Valve Spring Washer | 2 |
| 8 | Valve Spring | 2 |
| 9 | Spring Retainer | 2 |
| 10 | Rocker Arm Assy | 1 |
| 11 | ||
| 13 | ||
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | Valve Adjusting Plate | 2 |
| 18 | valve collect | 4 |
| 12 | Rocker Arm Bolt | 1 or 2 |
| 19 | Nut | 2 |
| 20 | Nozzle Retainer | 1 |
| 21 | Spacer Washer | 3 |
| 22 | Spacer | 1 |
| 23 | Stud | 2 |
| 24 | Stud | 2 |
| 25 | Bolt | 2 |
| 26 | Stud | 2 |
| 27 | Valve conduit oil seal | 2 |
3.CYLINDER HEAD BONNET ASSEMBLY(HEAD COVER / VALVE COVER ASSY)
| NO. | PRODUCT NAME. | QTY |
| 0 | Cylinder Head Bonnet /Valve Cover Assy | 1 |
| 1 | Cylinder Head Bonnet /Valve Cover | 1 |
| 2 | Ball | 1 |
| 3 | Breather | 1 |
| 4 | Pin | 1 |
| 5 | O-Ring | 1 |
| 12 | Pin | 1 |
| 13 | Plunger | 1 |
| 7 | Plunger | 1 |
| 8 | Decompression Shaft Assembly | 1 |
| 9 | ||
| 10 | O-Ring | 1 |
| 6 | Bonnet Gasket (valve cover gasket) | 1 |
| 11 | Bolt | 2 or 3 |
4.PISTON & CONNECTING ROD ASSEMBLY
| NO. | PRODUCT NAME. | QTY |
| 1-3 | Piston Rings | 1 |
| 4 | Piston | 1 |
| 5 | Piston Pin | 1 |
| 6 | circlip | 2 |
| 1-3+4+5+6 | Piston Kit | 1 |
| 7 | Connecting Rod | 1 |
| 8 | Connecting Rod Bearing | 2 |
5.CRANK SHAFT & FLYWHEEL ASSEMBLY
| No. | PRODUCT NAME. | QTY |
| 1 | Ball Bearing | 2 |
| 2 | Balance Shaft | 1 |
| 3 | Key | 2 |
| 4 | Drive Gear of Balance Shaft | 1 |
| 5 | Crankshaft Timing Gear | 1 |
| 6 | Crankshaft | 1 |
| 7 | Crankshaft Steel Ball Plunger | 1 |
| 9 | Key | 2 |
| 10 | Flywheel | 1 |
| 11 | Flywheel Gear Ring | 1 |
| 12 | Flywheel Nut Washer | 1 |
| 13 | Flywheel Nut | 1 |
| 14 | Starting Claw Disc | 1 |
| 15 | Bolt | 3 |
| 17 | Timing Gear of Balance Shaft | 1 |
6.CANSHAFT ASSEMBLY
| No. | PRODUCT NAME. | QTY |
| 1 | Valve Pushing Rod | 2 |
| 2 | Valve Tappet | 2 |
| 3 | Camshaft Gear | 1 |
| 4 | Key | 1 |
| 5 | Camshaft | 1 |
7. AIR FILTER ASSY / INTAKE SYSTEM (2 KINDS)
8.SILENCER ASSEMBLY
9.LUBE OIL SYSTEM
| No. | PRODUCT NAME. | QTY |
| 1 | Bolt | 3 |
| 2 | Oil Pump Cover | 1 |
| 3 | O-Ring | 1 |
| 4-6 | Oil Pump Assy | 1 |
| 4 | Outer Rotator | |
| 5 | Inner Rotator | |
| 6 | Oil Pump Shaft | |
| 7 | Pin | 1 |
| 8 | Oil Pump Gear | 1 |
| 9-10 | Oil Filter Assembly | 1 |
| 9 | Oil Filter | |
| 10 | O-Ring |
10.FUEL TANK & FUEL PIPE ASSEMBLY
| NO. | PRODUCT NAME. | QTY |
| 1 | Bolt | 1 |
| 2 | Bolt | 1 |
| 3 | Washer | 1 |
| 4 | Fuel Tank Upper Bracket | 1 |
| 5 | Shock Pad | 4 |
| 6 | Fuel Return Pipe | 1 |
| 7 | Fuel Return Pipe Clip | 2 |
| 8 | Drain Plug Gasket | 1 |
| 9 | Drain Plug | 1 |
| 10 | Fuel Tank Lower Bracket | 1 |
| 11 | Bolt | 2 |
| 12 | Fuel tank switch | 1 |
| 13 | Fuel Supply Pipe Clip | 2 |
| 14 | Fuel Supply Pipe | 1 |
| 15 | O-ring | 1 |
| 16 | Fuel Filter Gasket | 1 |
| 17 | Fuel Filter | 1 |
| 18 | Bolt | 2 |
| 25 | High Pressure Fuel Pipe | 1 |
| 27 | Fuel Tank | 1 |
| 28 | Fuel Strainer | 1 |
| 29 | Fuel tank cap | 1 |
11.GOVERNOR&CONTROL SYSTEM
12.FUEL INJECTION PUMP ASSEMBLY
13. FUEL INJECTOR ASSEMBLY & NOZZLE
14.RECOIL STARTER ASSEMBLY
15.AIR CONDUCT COVER ASSEMBLY
| NO. | PRODUCT NAME. | QTY |
| 1 | Shock Absorber Pad | 1 |
| 2 | Air Conduct Cover | 1 |
| 3 | Shock Absorber Bushing | 4/N |
| 4 | Shock Absorber Pin | 4/N |
| 6 | Screw | 4/N |
16. STARTER & GENERATOR ASSEMBLY
| No. | PRODUCT NAME. | QTY |
| 1 | Flywheel Generator | 1 |
| 2 | Bolt | 3 |
| 3 | Screw | 3 |
| 4 | Bolt | 1 |
| 5 | Clamp | 1 |
| 6 | Regulator | 1 |
| 7 | Starting Motor | 1 |
| 8 | Bolt | 2 |
