Quick Details
-
Power:
-
220-440V, 50-60Hz, 3phase
-
Table Size:
-
7.5x0.69x1.18m
-
Weight:
-
1000KG
-
Safety Lock:
-
Ls 30, 20-30kn.M
-
Wire Rope Dia.:
-
8.3/8.6/9.1/9.3/10.2mm
-
Operate System:
-
Electrical, Auto, Manual
-
Max. Lifting Height:
-
330 M
-
Length of Platform:
-
From 1m to 10m
-
Rated Load:
-
1000KG
-
Type:
-
ZLP1000
-
Electrical Cable:
-
(3x2.5+2x1.5mm2 )0-200m
-
Wire Rope Height:
-
0-200m
-
Counterweight:
-
1200kg
-
Certification:
-
ce iso
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xingdou
-
Power:
-
220-440V, 50-60Hz, 3phase
-
Table Size:
-
7.5x0.69x1.18m
-
Weight:
-
1000KG
-
Safety Lock:
-
Ls 30, 20-30kn.M
-
Wire Rope Dia.:
-
8.3/8.6/9.1/9.3/10.2mm
-
Operate System:
-
Electrical, Auto, Manual
-
Max. Lifting Height:
-
330 M
-
Length of Platform:
-
From 1m to 10m
-
Rated Load:
-
1000KG
-
Type:
-
ZLP1000
-
Electrical Cable:
-
(3x2.5+2x1.5mm2 )0-200m
-
Wire Rope Height:
-
0-200m
-
Counterweight:
-
1200kg
-
Certification:
-
ce iso

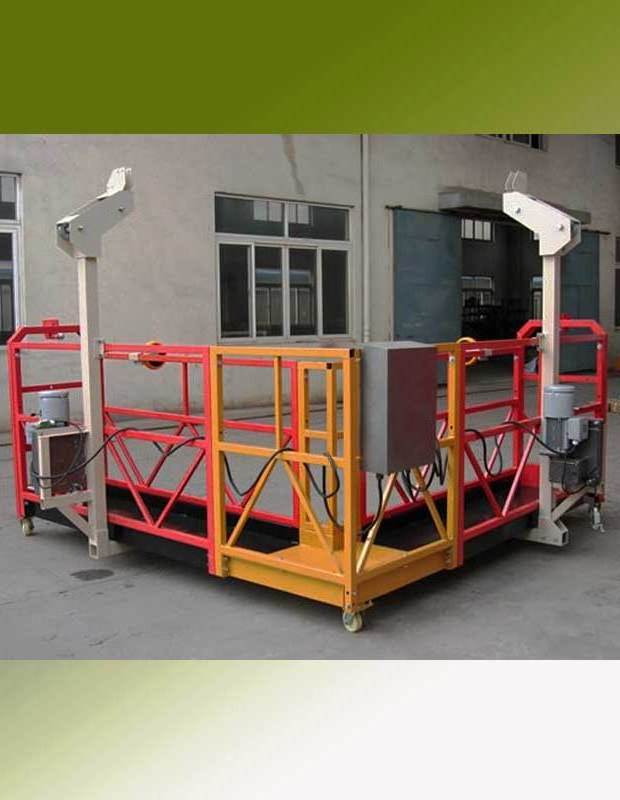

ZLP series suspended platform mainly used to decorating,maintaining and cleaning the facade of high-level buildings and exterior construction
Aluminum Construction Platform
Technical parameters of construction cleaning cradle:
|
model |
zlp500 |
zlp630 |
zlp800 |
zlp1000 |
|
appearance |
painting/hot galvanized |
|||
|
fabrication material |
steel/aluminum alloy |
|||
|
rated load |
500kg |
630kg |
800kg |
1000kg |
|
lifting speed |
9-11m/min |
9-11m/min |
8-10m/min |
8-10m/min |
|
motor power |
2x1.5kw |
2x1.5kw |
2x1.8kw |
2x2.2kw |
|
brake torque |
16km |
16km |
16km |
16km |
|
steel rope angle adjusting range |
3°-8° |
3°-8° |
3°-8° |
3°-8° |
|
distance between two steel rope |
≤100mm |
≤100mm |
≤100mm |
≤100mm |
|
counter weight(optional) |
25kgx30pcs |
25kgx36pcs |
25kgx40pcs |
25kgx44pcs |
|
diameter of steel rope |
8.3mm |
8.3mm |
9.1mm |
10.2mm |
|
max lifting height(m) |
300m |
300m |
300m |
300m |
|
motor rotation speed |
1420r/min |
1420r/min |
1420r/min |
1420r/min |
|
voltage(3phases)(optional) |
220v/380v/415v/440v 50hz/60hz to be OEM |
|||
could be customized according to customers'requirements(drawing, specifications and so on).
Main Parts of construction cleaning cradle:
|
1. construction cradle(basket): Steel or Aluminum Alloy (painted or hot galvanized) |
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm |
|
2. Suspension Mechanism: Steel (painted or hot galvanized) |
7. Safety rope: 18mm,20mm |
|
3. Electric hoists:LTD6.3 or LTD8 |
8. Electric cable: 3*2.5+2*1.5 |
|
4. Safety Lock: LST30 |
9. Counterweights: Cement , cement with steel cover & Iron counterweight |
|
5. Electric control box: Along with hoists |
10. Spare parts |
Packing
:
40HQ containers or 20GP container or 40'OT container
Delivery leadtime
:
10-30 days after depoist received
