Quick Details
-
Ejection Stroke(mm):
-
130 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHENLI
-
Voltage:
-
As per your industry voltage
-
Dimension(L*W*H):
-
7500*2000*3100mm
-
Weight (KG):
-
25000
-
Power (kW):
-
30/55
-
Clamping Force (kN):
-
5500kN
-
Open Stroke(mm):
-
80mm
-
Space between Tie Bars(mm):
-
760*760
-
Diameter of Bars(mm):
-
140mm
-
Casting Force(kN):
-
480kN
-
Casting Stroke(mm):
-
850mm
-
Casting Pressure(MPa):
-
124MPa
-
Name:
-
550T aluminum high pressure die casting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine color:
-
blue bases,yellow door,white computer
-
machine material:
-
cast iron
-
machine type:
-
factory,manufacturer
-
machine valves:
-
yuken,Japan
-
machine electric parts:
-
schneider
Quick Details
-
Max.Thickness of Die Block (mm):
-
850 mm
-
Min.Thickness of Die Block (mm):
-
350 mm
-
Ejection Force(kN):
-
240 kN
-
Ejection Stroke(mm):
-
130 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHENLI
-
Voltage:
-
As per your industry voltage
-
Dimension(L*W*H):
-
7500*2000*3100mm
-
Weight (KG):
-
25000
-
Power (kW):
-
30/55
-
Clamping Force (kN):
-
5500kN
-
Open Stroke(mm):
-
80mm
-
Space between Tie Bars(mm):
-
760*760
-
Diameter of Bars(mm):
-
140mm
-
Casting Force(kN):
-
480kN
-
Casting Stroke(mm):
-
850mm
-
Casting Pressure(MPa):
-
124MPa
-
Name:
-
550T aluminum high pressure die casting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine color:
-
blue bases,yellow door,white computer
-
machine material:
-
cast iron
-
machine type:
-
factory,manufacturer
-
machine valves:
-
yuken,Japan
-
machine electric parts:
-
schneider

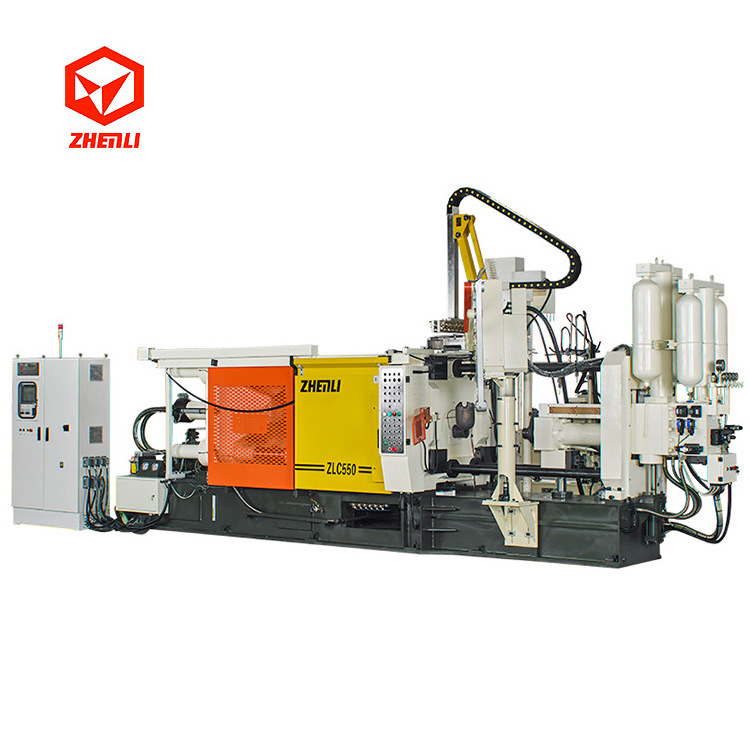

500T 550T aluminum pressure die casting machine injection moulding machine
Products Description
|
ITEMS
|
UNIT
|
ZLC-550T
|
|
Locking Force
|
kN
|
5500
|
|
Die Open Stroke
|
mm
|
580
|
|
Ejector Force
|
kN
|
240
|
|
Ejector Stroke
|
mm
|
130
|
|
Die Height（Min.-Max.）
|
mm
|
350-850
|
|
Die Platen Size（HXV）
|
mm
|
1150×1305
|
|
Space Between Tie Bars
|
mm
|
760×760
|
|
Shot Position
|
mm
|
0，-220
|
|
Shot Strock
|
mm
|
850
|
|
Casting Force（intensify）
|
kN
|
480
|
|
Plunger Diameter
|
mm
|
70,80,90
|
|
Injection Weight
|
kg
|
4.2,5.5,6.9
|
|
Casting Pressure
|
MPa
|
124,95,75
|
|
Casting Area
|
cm²
|
400,523,662
|
|
Casting Area Max
|
cm²
|
1375
|
|
Chamber Flange Diameter
|
mm
|
130
|
|
Chamber Flange Protrusion
|
mm
|
15
|
|
Plunger Penetration
|
mm
|
230
|
|
Main Pump Driving Motor
|
kW
|
30/55
|
|
Working Pressure
|
MPa
|
14
|
|
Oil Tank Capacity
|
L
|
1100
|
|
Machine Dimensions (L×W×H)
|
mm
|
7500×2000×3100
|
|
Referential Machuine Weight For Uplifting
|
T
|
25
|
