Quick Details
-
Brand Name:
-
Antuo
-
Model Number:
-
AT-FRP-T005
-
Surface Treatment:
-
Mat Surface, Smooth
-
Product name::
-
FRP fiberglass tube, FRP Pole
-
Material::
-
Fiberglass yarn + polymey resin
-
Fiber Type::
-
E-glass fiber yarns
-
Resin::
-
Polyester/epoxy resin
-
Fiber Content::
-
70%
-
Temperature resistance::
-
-50-200°C
-
Shape::
-
Square, rectangular, circle, L/U/H shape, rod etc.
-
Features::
-
Light weight, durable, insulation, fire retardant, etc
-
Color::
-
Yellow, White, Grey, or Customized
Quick Details
-
Application:
-
Construction, Chemical, Industry, Sports, etc, kites, RC hobby, nursery, fence post, umbrella, driveway marker, etc.
-
Technique:
-
Pultrusion Process
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Antuo
-
Model Number:
-
AT-FRP-T005
-
Surface Treatment:
-
Mat Surface, Smooth
-
Product name::
-
FRP fiberglass tube, FRP Pole
-
Material::
-
Fiberglass yarn + polymey resin
-
Fiber Type::
-
E-glass fiber yarns
-
Resin::
-
Polyester/epoxy resin
-
Fiber Content::
-
70%
-
Temperature resistance::
-
-50-200°C
-
Shape::
-
Square, rectangular, circle, L/U/H shape, rod etc.
-
Features::
-
Light weight, durable, insulation, fire retardant, etc
-
Color::
-
Yellow, White, Grey, or Customized

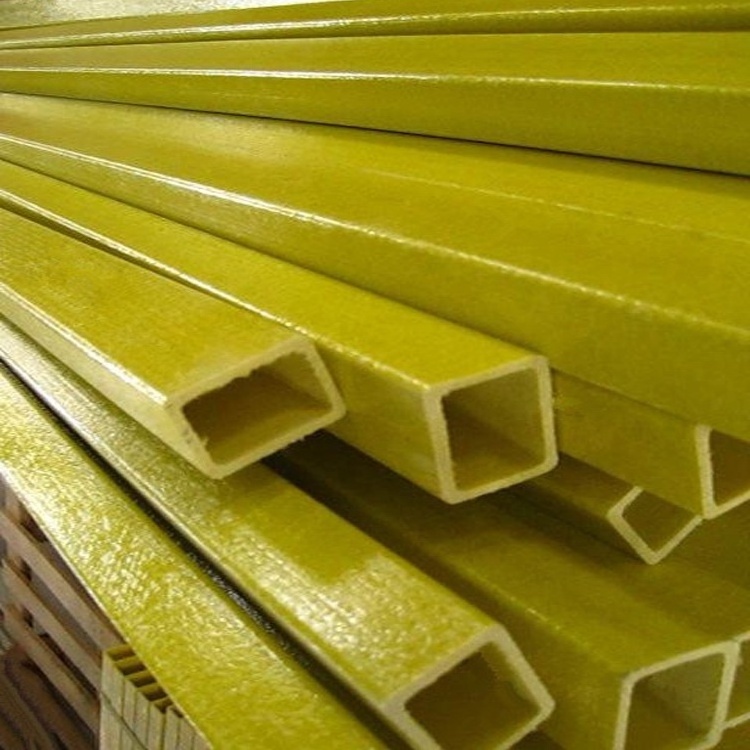

pultruded hollow felt fiberglass rectangular tubes, extrusion felt frp fiberglass square tubes
Pultruded grp Glass fiber felt rectangular tubes frp fiberglass pipe with glass mat
Raw Material:
fiberglass roving + thermosetting Vinylester/Epoxy resin
Applications:
FRP fiberglass polymer tube is made of Alkali-free and twist-free glass fiber yarn soaking in epoxy compound glue, and passing the vacuum injection, continuous pulling and pressing, and being solidified. It has good electrical performance and mechanical strength. FRP tubes are wildly used in freeway; bridge; airport; tunnel; railway station; jetties; underground engineering; sewage treatment plant, Fence posts for electrical fence ystem, Dowel bars for concrete slabs, Fish tapes and duct rod and so on.
Specifications:
Product Item: FRP Pultruded fiberglass tubes poles
| Diameter ( mm ) | ||
| Outside Diameter | Inside Diameter | Wall Thickness |
| 3.00 | 1.50 | 0.75 |
| 4.00 | 2.50 | 0.75 |
| 5.00 | 2.50 | 1.25 |
| 6.00 | 4.50 | 0.75 |
| 7.50 | 5.00 | 1.25 |
| 8.00 | 6.00 | 1.00 |
| 9.50 | 4.20 | 2.65 |
| 10.00 | 8.00 | 1.00 |
| 11.00 | 4.00 | 3.50 |
| 12.70 | 6.00 | 3.35 |
| 14.00 | 12.00 | 1.00 |
| 16.00 | 12.00 | 2.00 |
| 18.00 | 16.00 | 1.00 |
| 25.40 | 21.40 | 2.00 |
| 27.80 | 21.80 | 3.00 |
| 30.00 | 26.00 | 2.00 |
| 37.00 | 33.00 | 2.00 |
| 44.00 | 40.00 | 2.00 |
| 51.00 | 47.00 | 2.00 |
Any shapes can available by CNC processing as your requirement :-)
