Quick Details
-
Bending Precision (Deg):
-
±0.1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
xuanhua
-
Year:
-
2024
-
Power (kW):
-
2.2
-
Weight (KG):
-
160
-
Marketing Type:
-
New Product 2024
-
Product name:
-
multi-function hydraulic pipe bender
-
Application:
-
manual pipe bender
-
Motor power:
-
2.2KW
-
Max.bending degree:
-
190°
-
Motor Speed:
-
15r/min
-
Weight:
-
160kg
-
Max.Working Capacity:
-
63*5mm
-
Voltage:
-
220/380 V
-
Usage:
-
CNC bending machine
-
Name:
-
hydraulic steel pipe bender
Quick Details
-
Machine Type:
-
Pipe Bending Machine
-
Bending Radius (mm):
-
63 - 100
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
±0.1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
xuanhua
-
Year:
-
2024
-
Power (kW):
-
2.2
-
Weight (KG):
-
160
-
Marketing Type:
-
New Product 2024
-
Product name:
-
multi-function hydraulic pipe bender
-
Application:
-
manual pipe bender
-
Motor power:
-
2.2KW
-
Max.bending degree:
-
190°
-
Motor Speed:
-
15r/min
-
Weight:
-
160kg
-
Max.Working Capacity:
-
63*5mm
-
Voltage:
-
220/380 V
-
Usage:
-
CNC bending machine
-
Name:
-
hydraulic steel pipe bender
Product Description
It is widely used for the furniture manufacturing industry, the gate processing industry, the fitness equipment industry, the transportation pipeline industry, the decoration industry, the auto parts manufacturing industry and the leisure and entertainment equipment industry product. Especially used for greenhouse processing, vegetable greenhouses, and carport arches workshop.
We own professional production team&production line, experienced technical experts who engaged in this industry for more than 10 years.Advanced Feature:
1. Adopts the 10mm thicken top plate and high rigidity disk of iron, more durable.
2. Equipped with international standard copper motor.
3. Equipped with ultra-high hardness accessory and adjustable fender.
4. Equipped with stop switch, the machine can stop immediately,ensure the safety of the workers.
Main Technical Parameters：
WG-76
WG-51
GWG-63/76/100
|
Model
|
Max.Working Capacity
|
Motor Power
|
Speed
|
Weight
|
|
WG-38
|
Ø 38*2.5 mm
|
2.2 kw
|
10-12 r/min
|
210 kg
|
|
WG-51
|
Ø 51*3.5 mm
|
3 kw
|
8-9 r/min
|
260 kg
|
|
WG-63
|
Ø 63*3.5 mm
|
3 kw
|
4-6 r/min
|
280 kg
|
|
WG-76
|
Ø 76*5 mm
|
4 kw
|
3-5 r/min
|
300 kg
|
|
WG-100
|
Ø 100*5 mm
|
4 kw
|
3-4 r/min
|
400 kg
|
|
GWG-63
|
63 mm
|
2.2 kw
|
15 r/min
|
160 kg
|
|
GWG-76
|
76 mm
|
3.0 kw
|
25 r/min
|
200 kg
|
|
GWG-100
|
100 mm
|
7.5 kw
|
25 r/min
|
500 kg
|
Product Photo
APPLICATION
(Platform Pipe Bender)
Mainly used in furniture manufacturing, fitness equipment, pipelines, leisure and entertainment industries.
APPLICATION

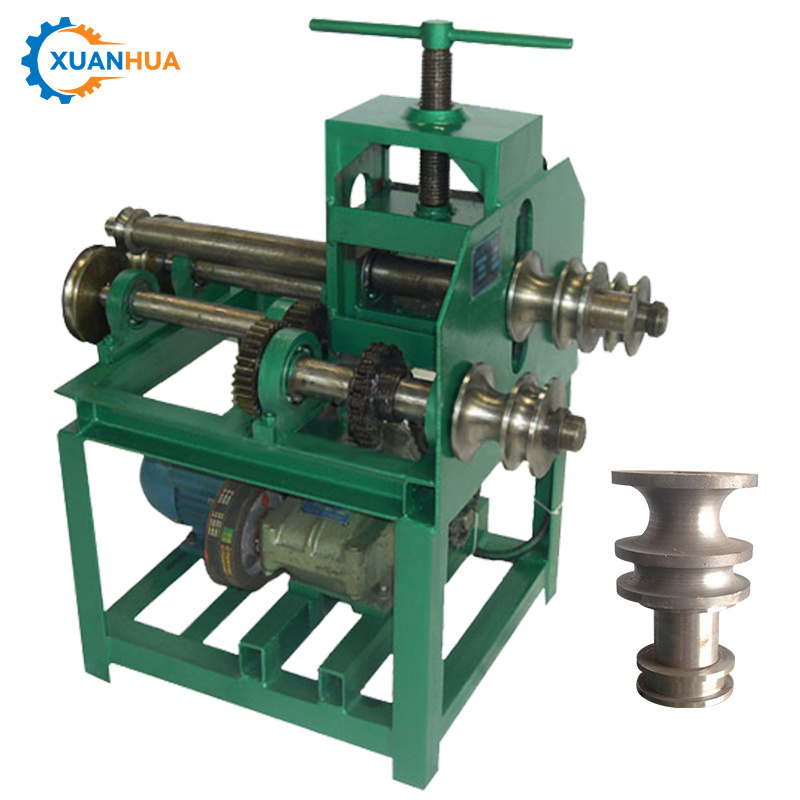

(Rolling Pipe Bender)
Mainly used in vegetable greenhouses, semi-circular iron doors, decoration engineering, plumbing industry, etc.
Product Detail
PRODUCT
ADVANTAGES
According to your local market needs and budget, we can design the right machine for you.
Quenching Mold
45# die steel is made of solid core, quenched and heat treated, wear-resistant and durable, and long life.
CNC System
Digital control, input angle and times, automatic bending, precise angle and high sensitivity.
Motor
100% pure copper motor, strong power, quick start, wear-resistant, damage-resistant and long service life.
Swing Spring
Solve the problems of large angle deviation, low repeatability, and inconvenience from the root cause.
Mold
For different pipe materials, it is equipped with round and square pipe molds, which are wear-resistant, durable and efficient.
Chain
The widened and thickened chain is driven by a worm gear reducer, which is rolled back and forth, and the bending radius can be adjusted.
Mass Production
MASS
PRODUCTION
We can provide custom pipe bending machines according to customer requirements such as work capacity,weight, color,etc.
Currently, we has advanced production technology and advanced product testing equipment, scientific and sound corporate management, and strictly operates in accordance with the ISO/TS9001:2008 international quality standard management system, strict quality clearance, and provides customers with qualified products.In the past ten years, our products have been sold to 39 countries and regions.With the accumulation of customers, our export volume is growing at an average annual rate of 36%.
