Quick Details
-
Brand Name:
-
Befitter
-
Voltage:
-
220V,0.55KW
-
Dimension(L*W*H):
-
2300*950*1350mm
-
Weight:
-
380 KG
-
max binding size:
-
450*305mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
book binding machine
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Befitter
-
Voltage:
-
220V,0.55KW
-
Dimension(L*W*H):
-
2300*950*1350mm
-
Weight:
-
380 KG
-
max binding size:
-
450*305mm
-
After Warranty Service:
-
Video technical support
Product Description

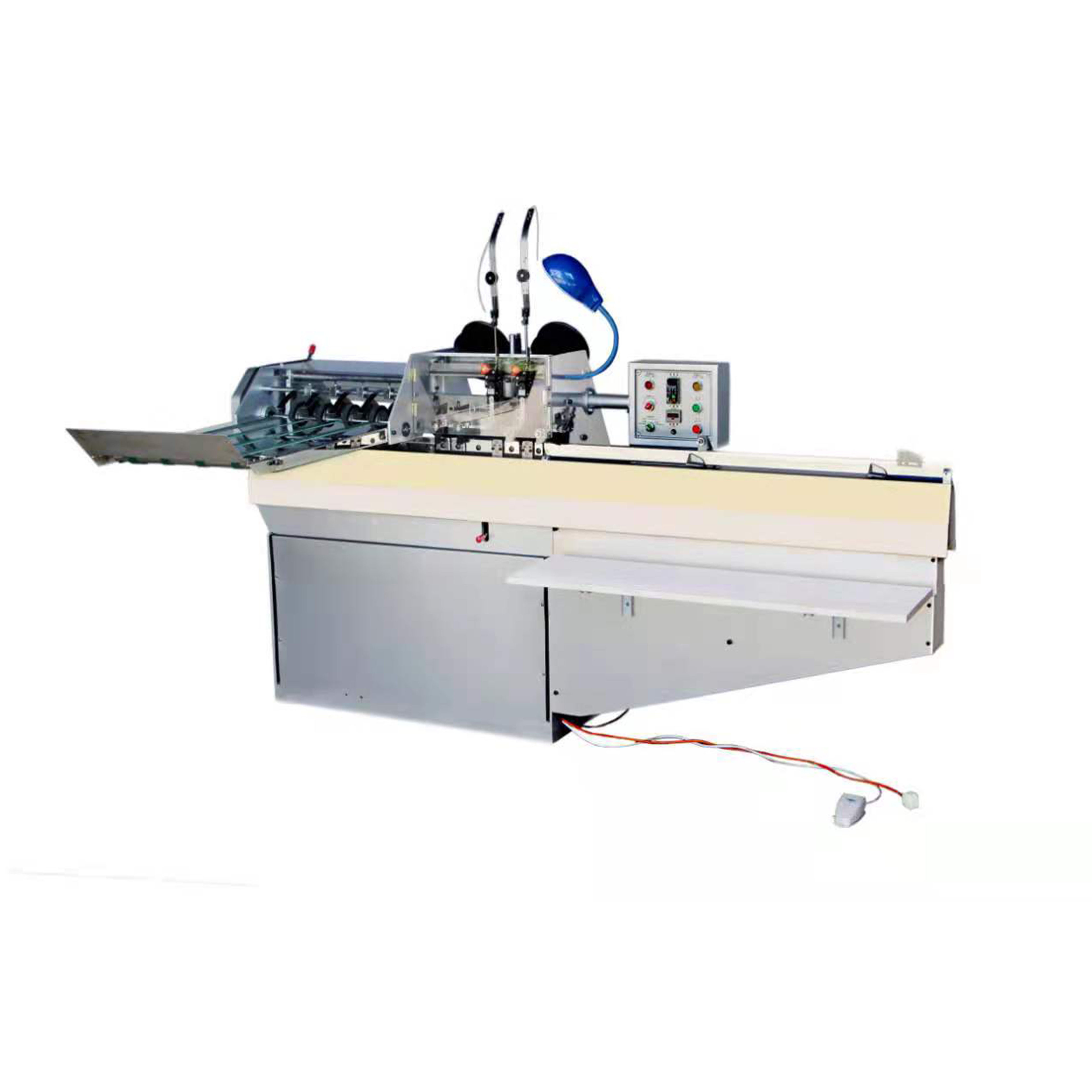

Semi Automatic Wire Saddle Notebook Stitching Machine 0.5kw 220v
USA/Hohner brand stitching heads is available.
USA/Hohner brand stitching heads is available.
The machine equipped 2 binding head ,can be added to 4 heads on demand.
Saddle Stitching Machine's advantage:this machine applicable to all types of books,magazines,thin books,advertising ,instructions and other printed matter of binding,can be equipped with on-demand 1-4 binding noses.regardless of single or double -joint can be time bound completion of the machines by artificial ride page send auto-complete book,book binding and resumption of work,simple operation,reliability ,binding range,the production of high efficiency.it used frequency control,photoelectric detection,monitoring of free nail protection.
Automatic counting and blocking function paper downtime
Feature
*photoelectric monitoring ,variable speed control ;
*automatic counting ,running smoothly;
*manual feeding ,automatic sending,binding and collecting;
*Easy operate and reliability ,high production efficiency ;
*photoelectric monitoring system is able to automatic start up binding or stop
when no book,it will protect binding head and missing nail;
* it widely used at binding books ,magazine,advertising,manual book ,and other print
Size Information
|
Model
|
DQB404-02GD
|
|
Max Binding Size
|
450*305mm
|
|
Min Binding Size
|
127*89mm
|
|
Binding Thickness
|
0.2-4mm
|
|
Binding Speed
|
30-80 times/min
|
|
Wire Width
|
13mm
|
|
Ceteral distance of both bindings
|
45-270mm
|
|
Motor power
|
220v 50HZ 0.5(0.75)KW 1400r/min
|
|
Wire
|
25#-26#
|
|
Weight
|
300-360kg
|
|
Meansurement(LxWxH)
|
2200x950x1350 mm
|
