Quick Details
-
Dimension(L*W*H):
-
6600*2110*2500mm
-
Weight:
-
6.3 KG
-
Product name:
-
tunneling drilling machine
-
Walking speed:
-
2.5km/h
-
Drilling hole diameter:
-
90-146mm
-
Application:
-
Quarry, mining, construction, limestone
-
Alternative name:
-
Blast Hole Drill, Bore Hole Drill
-
Working pressure:
-
7-10bar
-
Feature:
-
High Drilling Efficiency
-
Keyword:
-
DTH Blasthole Drilling Machine
-
Function:
-
Borehole Drilling Rig DTH Borehole Drill Rig
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG/YG
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
6600*2110*2500mm
-
Weight:
-
6.3 KG
-
Product name:
-
tunneling drilling machine
-
Walking speed:
-
2.5km/h
-
Drilling hole diameter:
-
90-146mm
-
Application:
-
Quarry, mining, construction, limestone
-
Alternative name:
-
Blast Hole Drill, Bore Hole Drill
-
Working pressure:
-
7-10bar
-
Feature:
-
High Drilling Efficiency
-
Keyword:
-
DTH Blasthole Drilling Machine
-
Function:
-
Borehole Drilling Rig DTH Borehole Drill Rig
-
After-sales Service Provided:
-
Online support

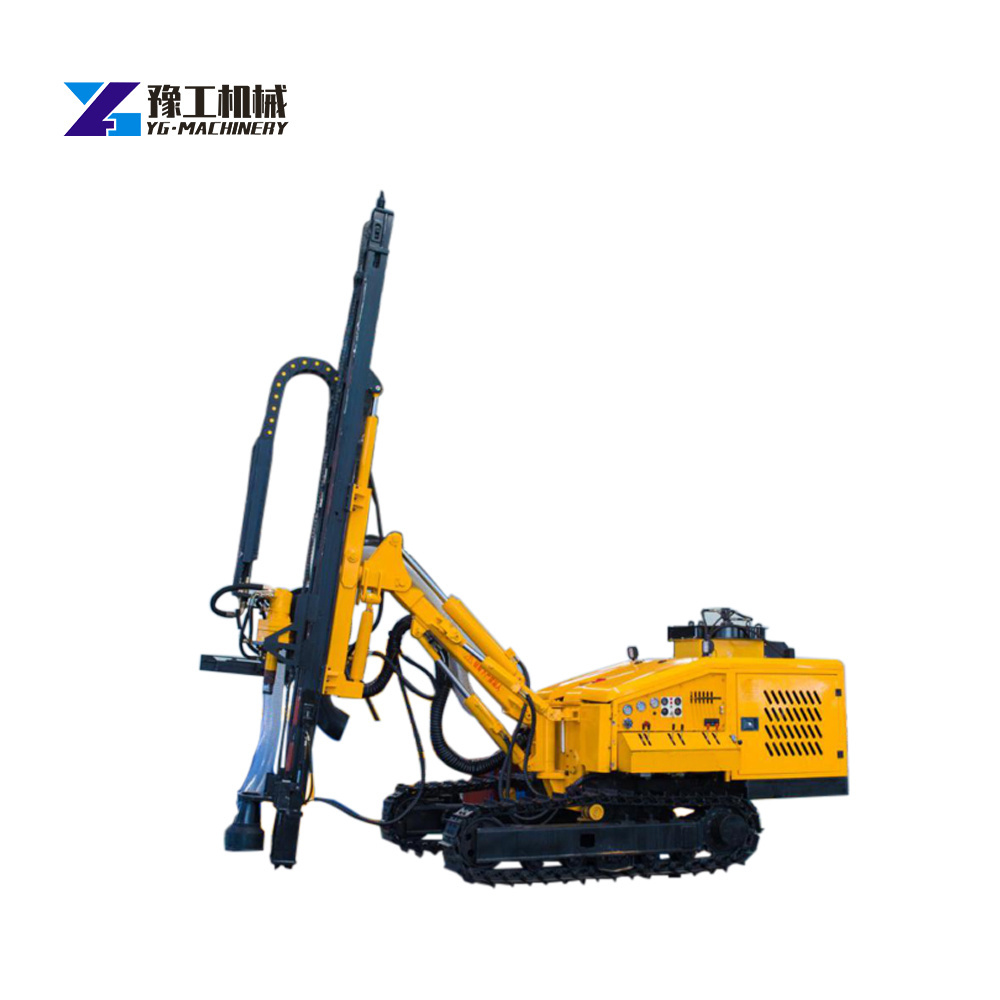

Portable dth drill rig dth hammer drilling rig dth drilling rig cost
DTH drilling can be performed in almost any rock drill-ability category. It is a common drilling equipment in the natural gas extraction, mineral extraction,drilling water wells, construction, creating oil wells. DTH drilling rigs can be equipped with diesel or electric motors according to different working conditions. During the rock drilling process, the impactor sneaks into the borehole, which can reduce the energy loss caused by the impact of the drill rod, thereby reducing the influence of the drilling depth on the borehole.
|
YGS150 |
YGS100A |
YGS153 |
YGS180 |
YGS300 |
YGS350 |
|
Total Weight |
5.95T |
3.8T |
6.3T |
6.8T |
8T |
|
Walking speed |
2.5km/h |
2.5km/h |
2.5km/h |
2.2/3.8km/h |
4km/h 2km/h |
|
Diesel tank capacity |
85L |
70L |
85L |
85L |
225L |
|
Shipping size |
6500*2110*2400 mm |
4640*1980*2260 mm |
6600*2110*2500 mm |
6600*2220*2600 mm |
7600*2350*2800 mm |
|
Drilling hole diameter |
90-146mm |
83-130mm |
90-146mm |
90-152mm |
90-165mm |
|
Power configuration |
YCD4R22T-80 |
YC2108 33kw/2400rpm |
YCD4R22T-80 55kw |
YC4DK80-T302 |
YC4DK100-T304 73.5kw/2200rpm |
|
Highest horizontal hole height |
3.2m |
2.8m |
3.6m |
3.25m |
3.5m |
Feature:
1. Has free relaxed fluctuation system, hydraulic lifting device casing.
2. Large working range, strong terrain adaptability, and high efficiency.
3. The side swing mechanism is adopted to realize all-round drilling.
4. The frame part is made of high-strength steel, the overall structure is strong and durable.
5. The tubing drag chain can avoid the friction between the tubing and the guide rail, protect the tubing and increase the service life.
6. The power head part can adjust the rotation speed according to the softness of the rock layer, achieve a smooth high torque output.
