Quick Details
-
Brand Name:
-
YCSTPOWER
-
Model Number:
-
YC-NA1230S
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5kg
-
Operating Temperature[°C]:
-
-30-90
-
Nominal Voltage:
-
12.4V
-
Nominal Capacity:
-
30Ah
-
Nominal energy:
-
372wh
-
Cycle Life:
-
3000 Cycles/60%DOD
-
Application:
-
Motorcycle,Scooter,Bike
-
Warranty:
-
4years
-
size:
-
ES12-24A
-
OEM/ODM:
-
Support
-
CCA:
-
1250
-
Operate Voltage:
-
6V/10V-15.8V
Quick Details
-
Battery Size:
-
Sodium ion Battery
-
Battery Capacity:
-
30Ah
-
Battery Type:
-
Sodium-Ion
-
Brand Name:
-
YCSTPOWER
-
Model Number:
-
YC-NA1230S
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5kg
-
Operating Temperature[°C]:
-
-30-90
-
Nominal Voltage:
-
12.4V
-
Nominal Capacity:
-
30Ah
-
Nominal energy:
-
372wh
-
Cycle Life:
-
3000 Cycles/60%DOD
-
Application:
-
Motorcycle,Scooter,Bike
-
Warranty:
-
4years
-
size:
-
ES12-24A
-
OEM/ODM:
-
Support
-
CCA:
-
1250
-
Operate Voltage:
-
6V/10V-15.8V

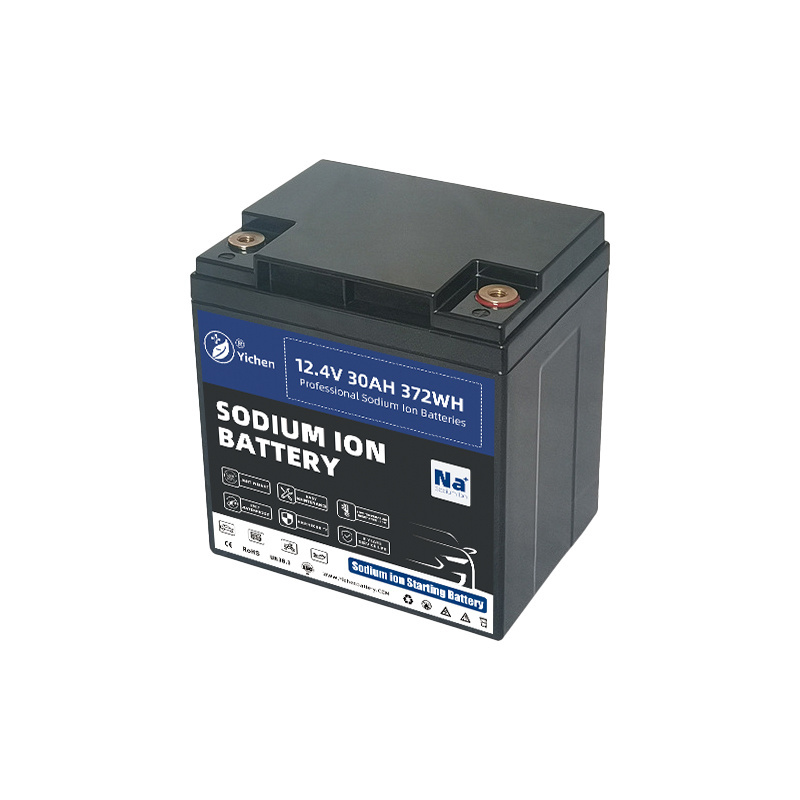

12V30Ah Sodium-ion Battery For Motorcycle Starting
New Product
Sodium Ion Battery
Натриевая ионная батарея
SODIUM-IRON TECHNICAL SPECIFICATION
|
No.
|
Items
|
Specification description
|
|
3.1
|
Appearance
|
The surface is clear and is free of scratch, mechanical cuts and match well with the host.
|
|
3.2
|
Max. Charge voltage
|
15.8V ±0.2(3.95V*4)
|
|
3.3
|
Nominal voltage
|
12.4V
|
|
3.4
|
Nominal capacity
|
30Ah（at 0.5C rate discharge after standard charge）
|
|
3.5
|
Specific Energy
|
372Wh
|
|
3.6
|
Standard Charge current
|
0.2C
|
|
3.7
|
Max. charge current
|
1C
|
|
3.8
|
CCA
|
Approx. 1250
|
|
3.9
|
Outline
|
L165×W126×H175 mm (ES12-24A)
|
|
3.10
|
Min. Discharge voltage
|
6V ±0.5(1.5V*4)
|
|
|
Peak Discharge
|
10C
|
|
3.11
|
Discharge current
|
3C (Max. continuous discharge current)
|
|
|
Peak discharge current
|
800A (3S)
|
|
3.12
|
Operating temperature
|
Charging: -40°C~45°C
Discharge: -50°C~80°C |
|
3.13
|
Storage Temperature and Humidity Range
|
The battery should cycle once in three months. Recommended storage temperature is 25±5°C of SOC 50%~60%.
|
|
3.14
|
Cycle Life
|
0.1C, ≥3000cycles,80% DOD
|
|
3.15
|
Pack weight
|
Approx.: 5KG±0.5
|
|
3.16
|
Delivery voltage
|
≥13V±0.5
|
Support Customized
1. Brand Design
2. Label Design
3.Colorful carton Design
3.Colorful carton Design
4. Case color customized
5.Terminal customized
6.BT function customized
7.On/off switch
8.Add Display
Very Popular in Starter Motor
1. Wide voltage range, 6~15.8V, perfectly solve the problem of voltage spikes and low voltage protection of lithium-ion batteries.
2: Extremely low temperature performance below minus 30 degrees.
2: Extremely low temperature performance below minus 30 degrees.
3: Very low failure rate.
4.Support 0V charger
4.Support 0V charger
100% Real Transaction Records and Customer Feedback
Certification support
About production:
1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.
2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
Packing & Delivery
T
o better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
