Quick Details
-
Certificate:
-
CE
-
Warranty:
-
5 years
-
Work Time (h):
-
The local illumination time
-
Color:
-
Blue
-
Applications:
-
solar panel power system,wind solar hybrid system
-
type:
-

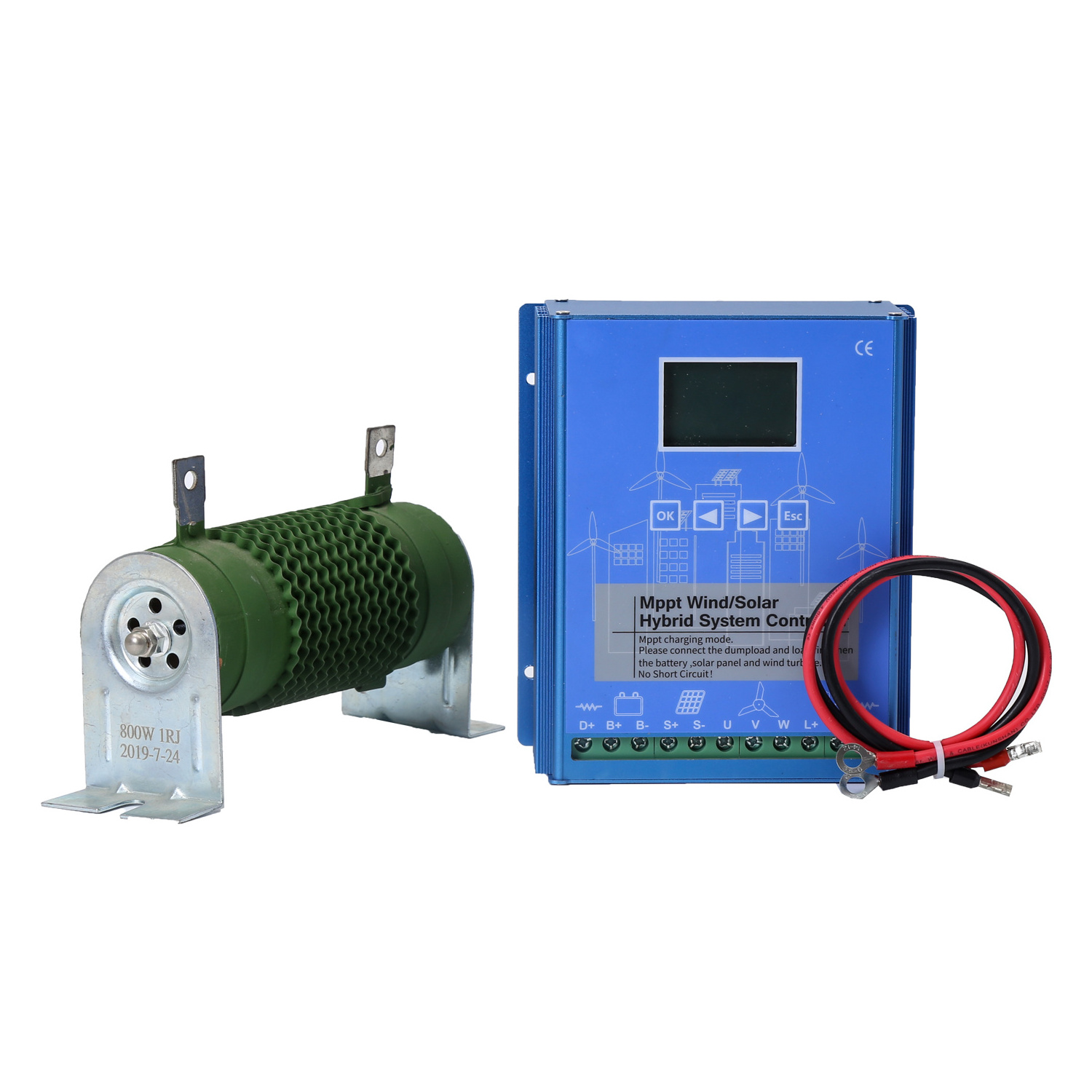

wind solar hybrid controller
-
Rated wind power:
-
100W-600W
-
Rated system voltage:
-
12V,24V,12/24 AUTO
-
Max PV Power:
-
1000w
-
Max PV Voltage:
-
12v 24v
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Beigood
-
Model Number:
-
BGLIN-N07
-
Certificate:
-
CE
-
Warranty:
-
5 years
-
Work Time (h):
-
The local illumination time
-
Color:
-
Blue
-
Applications:
-
solar panel power system,wind solar hybrid system
-
type:
-
wind solar hybrid controller
-
Rated wind power:
-
100W-600W
-
Rated system voltage:
-
12V,24V,12/24 AUTO
-
Max PV Power:
-
1000w
-
Max PV Voltage:
-
12v 24v
Product Description
Specification
|
Function Battery Type
|
FULL (Charging protection )
|
Low (Load disconnect)
|
RLOW (Load connect)
|
|||
|
Customization （b0）
|
14.7V/29.4V（adjustable）
|
10.2V/20.4V（adjustable）
|
11.5V/23.0V（adjustable）
|
|||
|
Lead acid/Gel Battery（b1）
|
14.4V/28.8V（default）
|
10.2V/20.4V（default）
|
11.5V/23.0V（default）
|
|||
|
Ternary lithium battery（b2）
|
12.6V/25.2V(default）
|
9.0V/18.0V（default）
|
10.0V20.0V（default）
|
|||
|
Lithium iron phosphate battery (b3）
|
14.4V/28.8V(default)）
|
10.0V/20.0V（default）
|
11.0V/22.0V（default）
|
|||
|
Controller Parameter
|
|
|
|
|||
|
Rated system voltage
|
12V、24V、12/24 AUTO
|
|
|
|||
|
Rated wind power
|
100W-600W
|
|
|
|||
|
Rated PV power
|
100W-600W
|
|
|
|||
|
Max input voltage
|
Wind turbine≤80V solar panel≤55V
|
|
|
|||
|
The above three parameters must satisfy the conditions on the right.
|
（wind rated power+PV rated power）/system voltage≤40A
|
|
|
|||
|
|
Wind rated power/system rated voltage≤25A
|
|
|
|||
|
|
PV rated power /system rated power ≤25A
|
|
|
|||
|
No-load Current (DC)
|
≤0.05A
|
|
|
|||
|
Controller power mode
|
Battery or solar
|
|
|
|||
|
Control mode
|
Wind generator MPPT boost charge、PWM dump load、PWM Over current Limiting function
|
|
|
|||
|
Output working mode(Mode)
|
Mode 1: Light-control on. Light-control off (3 modes adjustable)
|
|
|
|||
|
Display content
|
LCD display,Voltage, Percentage of battery power, Current, working mode of load, etc
|
|
|
|||
|
Protection type
|
Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over
current and over voltage auto brake protection、Over load protection,etc. |
|
|
|||
|
Cooling mode
|
aluminium profiles Heat dissipation and self-cooling
|
|
|
|||
|
Working temperature / Relative humidity
|
-25℃~+80℃ /0~90%，non-condensing
|
|
|
|||
|
Net weight / Gross weight
|
2.05/2.45kg
|
|
|
|||
|
Controller size/Pack size
|
167mm*145.5mm*61.8mm/360mm*250mm*120mm
|
|
|
|||
