Quick Details
-
Horsepower:
-
251 - 350hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Online support, Free spare parts
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
sinotruk
-
Size:
-
8145x2560x3450mm
-
Cargo Tank Dimension:
-
7500x2300x2300mm
-
Product name:
-
China 8X4 Van/cargo/box Truck
-
Drive type:
-
8X4 LHD/RHD
-
Certificate:
-
CCC ISO BV
-
Chassis brand:
-
Sinotruk Howo
-
Wheelbase:
-
1456/1375
-
Product Keywords:
-
Diesel Pickup Truck
-
Name:
-
Van Cargo Food Truck
-
Transmission:
-
Manual Operation
-
Loading capacity:
-
35000kg
-
Brand:
-
Sinotruk Howo Cargo Transport
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Construction materials transportation
-
Horsepower:
-
251 - 350hp
-
Cargo Tank Type:
-
Van
-
Gross Vehicle Weight:
-
5001-10000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Online support, Free spare parts
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
sinotruk
-
Size:
-
8145x2560x3450mm
-
Cargo Tank Dimension:
-
7500x2300x2300mm
-
Product name:
-
China 8X4 Van/cargo/box Truck
-
Drive type:
-
8X4 LHD/RHD
-
Certificate:
-
CCC ISO BV
-
Chassis brand:
-
Sinotruk Howo
-
Wheelbase:
-
1456/1375
-
Product Keywords:
-
Diesel Pickup Truck
-
Name:
-
Van Cargo Food Truck
-
Transmission:
-
Manual Operation
-
Loading capacity:
-
35000kg
-
Brand:
-
Sinotruk Howo Cargo Transport

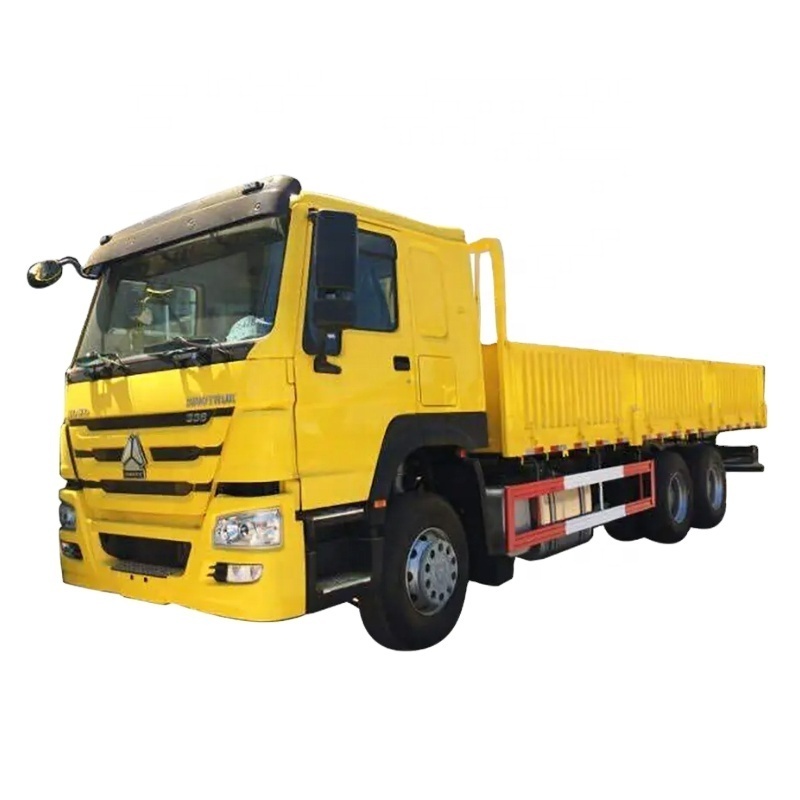

Sinotruk New Design Howo Light/Heavy Cargo Truck 2T/3T/5T/6T/8T/10T/20T/30T/50T
Our Main Products Heavy Trucks, Electric vehicles and Construction Machinery. Like Brand SINOTRUK, SHACMAN, DONGFENG, WULING,FOTON ETC.... include tractor trucks, dump trucks, cargo trucks, trailer truck, Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader.
we can supply these for our clients with good quality and competitive price.
Product Description
Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the dragcoefficient, thus significantly improving fuel economy.
Specification
|
SINOTRUK HOWO 6x4 CARGO TRUCK SPECIFICATIONS
|
|
|
||
|
Truck Model
|
|
ZZ1257N4341W(Left Hand Drive )
|
||
|
Truck Brand
|
|
SINOTRUK-HOWO
|
||
|
Dimension (LxWxH) (unloaded)mm
|
|
9900×2550×3250
|
||
|
Cargo body size(mm)
|
|
7100X2400X700
|
||
|
Steel thickness of Carriage(mm)
|
|
Floor:3mm/Side:1.5mm
|
||
|
Approaching angle/ Departure angel (°)
|
|
16/15
|
||
|
Overhang (front/rear) (mm)
|
|
1500/2600
|
||
|
Wheel base (mm)
|
|
4300+1400
|
||
|
Max. Driving speed (km/h)
|
|
95
|
||
|
Front axle loading capacity (kg)
|
|
9000
|
||
|
Rear axle loading capacity(kg)
|
|
2*16000
|
||
|
Curb weight (kg)
|
|
12390
|
||
|
Gross vehicle weight
|
|
30000
|
||
|
Cab Model
|
SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper
system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving. |
|
||
|
Engine Model
|
Model
|
WD615.69(EURO II),336hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
|
||
|
|
Rated Power(kw/rpm)
|
247/2200
|
||
|
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
|
|
||
|
Clutch
|
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
|
|
||
|
Transmission
|
Model
|
SINOTRUK HW19710 transmission ,10 forward and 2 reverse
|
||
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
||
|
|
Parking Brake
(emergency brake) |
Spring energy, compressed
|
||
|
Steering system
|
Model
|
ZF8118 Steering Gear Box ,hydraulic steering with power assistance.
(Left hand driving) |
||
|
Front axle
|
SINOTRUK 9000kg Front Axle,new 9-ton front axles of equipped with drum brakes.
|
|
||
|
Rear axle
|
SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR
axle,ratio:4.42;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
|
||
|
Wheels &Tire
|
Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
|
|
||
|
Electrical system
|
Electrics Operating voltage
|
24V,negative grounded
|
||
|
|
Starter
|
24V,7.5 Kw
|
||
|
|
Alternator
|
3-phase,28V,1500 W
|
||
|
|
Batteries
|
2x12 V,165 Ah
|
||
|
|
horn,headlamps,fog lights,brake lights,indicators and reverse light。
|
|
||
|
Oil Tank
|
Square type-400L Aluminum alloy fuel tank
|
|
||
|
Packing
|
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for
long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. |
|
||
|
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
|
|
|
||
All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force
resistance.
resistance.
Wide-angle rear view mirror The luxury wide-angel rear view mirror provides the drive with unobstructed all-around visibility,further assuring driving safety.
It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal and so on .
It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal and so on .
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3
working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
