Hongtai customized kapton polyimide flexible heater kapton foil heater

Hongtai customized kapton polyimide flexible heater kapton foil heater

FOB Reference Price: Get Latest Price

≥10 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: customized

Weight:: 2 KG

Warranty:: 1 YEAR

Working Temperature Range:: 1 - 200 ℃

Electric Heater:: polymide heat pad with thermistor

Film:: Polyimide Film

Option:: Sensitive Adhesive

Features 1:: Thin

Features 2:: Conformable

Features 3:: masking printed circuit board

Features 4:: heating for uneven surface

max operation temperature:: 200 degree celsius

Features 5:: excellent electric insulation

Advantages:: move cleanly without adhesive residue

Quick Details

Type:: Air Heater

Power Source:: Electric

Voltage:: 12v/24v/220v/240v

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: customized

Weight:: 2 KG

Warranty:: 1 YEAR

Working Temperature Range:: 1 - 200 ℃

Electric Heater:: polymide heat pad with thermistor

Film:: Polyimide Film

Option:: Sensitive Adhesive

Features 1:: Thin

Features 2:: Conformable

Features 3:: masking printed circuit board

Features 4:: heating for uneven surface

max operation temperature:: 200 degree celsius

Features 5:: excellent electric insulation

Advantages:: move cleanly without adhesive residue

Product Description

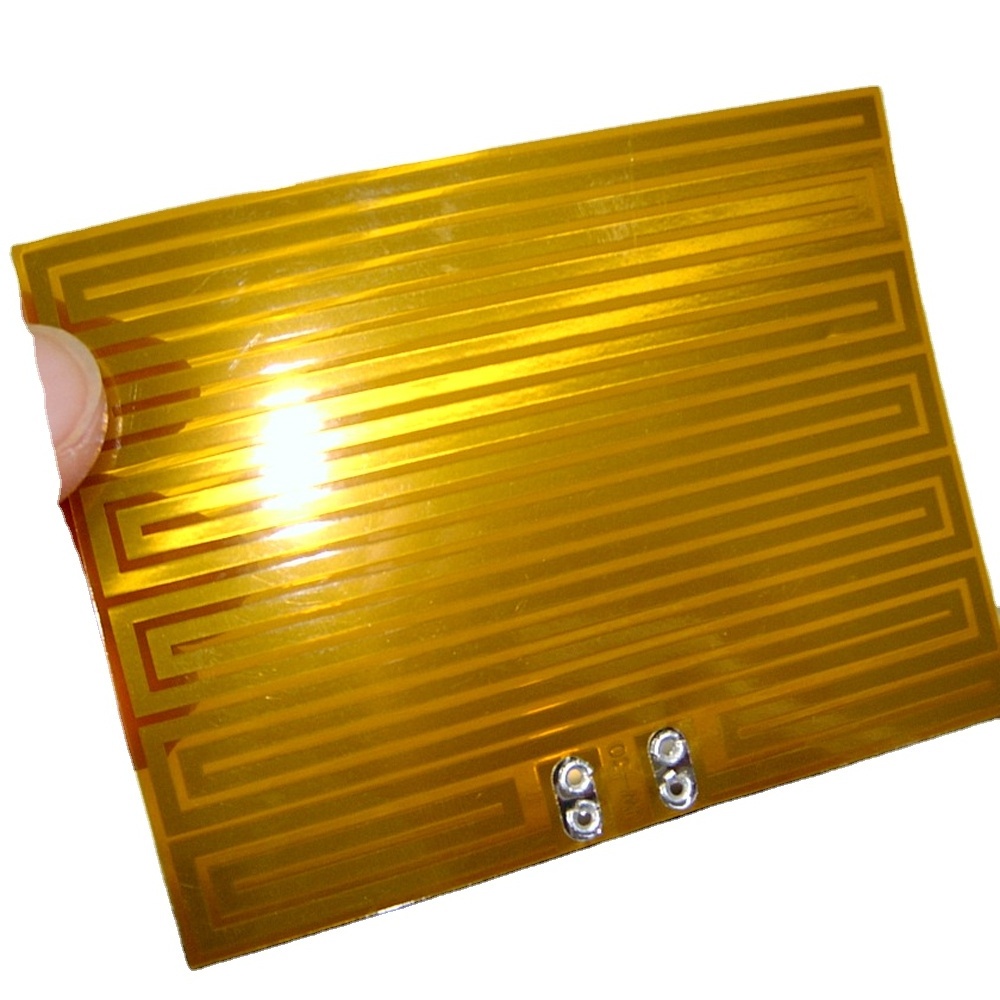

Film polyimide kapton heater

Thickness:0.126-0.266MM

Max tamperature:200 degree

Voltage:5V 12V 24V 48V ....

Hongtai customized kapton polyimide flexible heater kapton foil heater f lexible thin film polyamide heat pad with thermistor is a clear amber colored polyimide film. It is a thin, translucent material, has excellent dielectric strength. The process for making polyimide heater is similar to that of Etched Foil Silicone heaters. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 200 degree Celsius.

In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.

Voltage	12V to 480V	Thickness	0.126~0.266mm
Wattage	US/UK/Euro	Insulation Ohm	More than 5MΩ
Min Size	10*10mm	Max Temperature	200 degree
Max Size	2000*10000mm	Wire Tension	15N*15N

Thermocouple Type	K/J/Without			J	Without
Controller	Dial	Digital	Anti-explosion
Plug	US/UK/Euro	European	British
3M Back Adhesive	With	Without

Product Show

How to make a order of PI polyimide heater.
Size, Wattage & Voltages are available on request.

1)size.
width,length,if special type, better have drawing for it.
2)Voltage
12V/24v/36v/48V/120v AND SO ON.
3)Wattage
10w 20w 100w AND SO ON.
4)Drawing if possible

You can choose to add the following configuration according to your request.

Some example for the PI Heating Film

Application

Hair Straighter Heating Film Warm Cup Heating Mat Hand Warmer Heating Element

R ear view mirrors anti-fog/ Defrost Heater Heating car seat cushion Lithium battery heating Film

Cloth Heating film Eye mask heating Film heating insole heating pad

Pillow Heating Film Beauty Heater heating element Scrapping instrument heating film

3D printer Pad Heater Blood detector heating Film 3D Print Pen Heating element

Hongtai customized kapton polyimide flexible heater kapton foil heater
