Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
6mm
-
Control Software:
-
RD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Weight (KG):
-
1000 KG
-
Keywords:
-
Metal Laser Cuting Machine
-
Laser power:
-
150w/180w/280w/300w
-
Laser tube:
-
Beijing Reci Laser Tube
-
Control system:
-
RDCAM
-
Transmission:
-
Belt Transmission
-
Software supported:
-
RDV8
-
Working table:
-
Blade table
-
Motor:
-
Leadshine Stepper
-
Guide rail:
-
Taiwan Hiwin
-
Max cutting speed:
-
600mm/s
-
Certification:
-
ce, ISO, Sgs
-
After-sales Service Provided:
-
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
-
Marketing Type:
-
New Product 2021
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
30-40m/min
-
Cooling Mode:
-
Air Cooling
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
6mm
-
Control Software:
-
RD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Weight (KG):
-
1000 KG
-
Keywords:
-
Metal Laser Cuting Machine
-
Laser power:
-
150w/180w/280w/300w
-
Laser tube:
-
Beijing Reci Laser Tube
-
Control system:
-
RDCAM
-
Transmission:
-
Belt Transmission
-
Software supported:
-
RDV8
-
Working table:
-
Blade table
-
Motor:
-
Leadshine Stepper
-
Guide rail:
-
Taiwan Hiwin
-
Max cutting speed:
-
600mm/s
-
Certification:
-
ce, ISO, Sgs
-
After-sales Service Provided:
-
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
-
Marketing Type:
-
New Product 2021
Agent Price CO2 Stainless steel Laser Engraving Cutter Metal Laser Cutting Machine

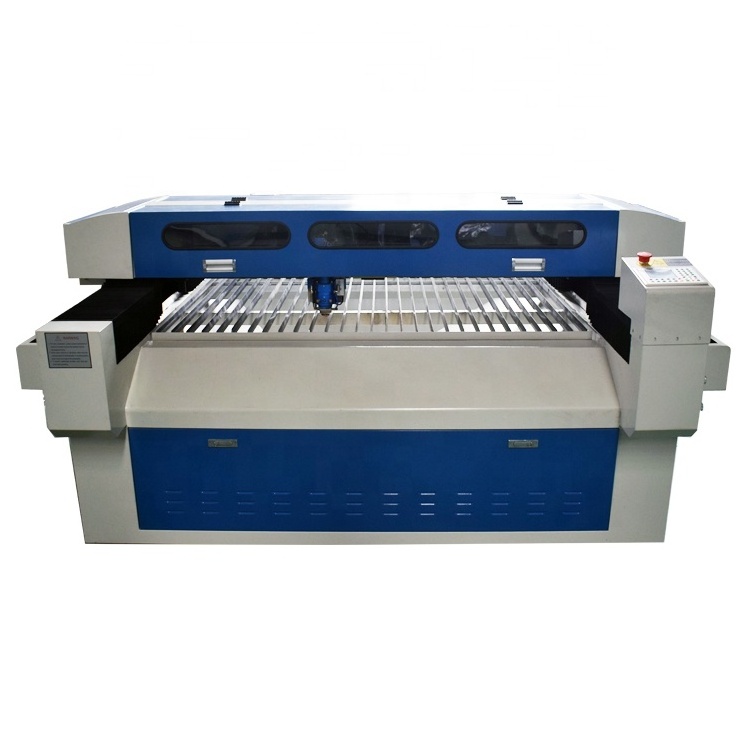

1. Metal laser cutting machine photos
2. Metal laser cutting machine parameter
|
Terms |
Technical Parameters |
|
Model |
FMJ-1325 |
|
Working platform size |
1300*2500MM |
|
Power |
CO2 Laser Tube |
|
Controlling system |
RD System |
|
Software |
RDCAM |
|
Drive |
Stepper Motor Drive/Servo Motor Drive |
|
Transmission |
Belt Transmission/Ball Screw Transmission |
|
Support format |
PLT, BMP, DXF, T100, etc |
|
Process Material |
Nonmetals, Painted Metals |
|
Idle speed |
≤1200mm/s |
|
Repeated accuracy |
≤±0.025mm |
|
Min. line Width |
0.2mm |
|
Cooling ways |
Forced-air Cooling |
|
Working temperature |
0-35°C |
|
Working humidity |
5-95% |
|
Working Power |
220V/50Hz/1.5kVA(Customized) |
|
Auxiliary Equipment |
Air pump, Exhaust Fan |
|
Up & Down Table |
15cm adjustable, or customized |
|
Optional configuration |
Rotary Device |
|
Dimension |
2185X1465X1260mm |
|
Net weight |
500KG |
|
Package |
Standard Crate for export |
3. CO2 laser cutting machine details
1. 3mm Cold-rolled steel welded machine bed, strong and running stable.
2. Aluminium blade table: to process hard materials like acrylic, wood and so on.
3. Fireproof window,more security.
4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time over 8500~10000 working hours.
5. Laser Power 40W~180W, good quality and stable output to prolong the laser tube service time.
6. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.
7. Ruida or Leetro Controller USB interface, support online/offline working, English language system, adjustable cutting speed and power.
8. High accuracy stepper motors and drivers. Belt transmission.
9. Tiwan Hiwin Linear square guide rails, higher precision.
10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.
11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick.
12. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.
4. Metal laser cutting machine sample
Application Industry
Mainly used in advertising,decoration industry(stainless steel and carbon steel relatedproducts),sheet metal industry(carbon steel),packing industry(die board) and other related industry.
Applicable Materials
Nonmetal materials.like acrylic,wood,MDF,die board,and so on.Metal materials,such as stainless steel,carbon steel,etc.
5. Metal laser cutting machine package
1.) Package
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2) Shipping
We cooperate with substantial shipping company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3) Payment:
We support T/T, L/C; EXW,FOB, CFR, CIF .
Warranty and Service
1). Guarantee for 3 years.
2). Maintenance free of charge for 3 years .
3). We will provide the consumable parts at an agency price.
4). 24 hours online service, free technical support.
