Quick Details
-
Size:
-
888X900X1345mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Weiss
-
Power:
-
1.5
-
Used for:
-
Hotel,laundry ,Hospital, school
-
Function:
-
washing and dehydrate
-
Operation:
-
Full automatic or Manual
-
Heating type:
-
Electric/Steam
-
Anti-shock:
-
Full suspension
-
Material:
-
304 Stainless Steel
-
Cleaning Process:
-
Hot Water Cleaning
-
Voltage:
-
220v/380v/415v
-
Capacity:
-
15kg/20kg/25kg/30kg/40kg/50kg
-
Advantage:
-
Long service time
Quick Details
-
Warranty:
-
2 years
-
After-sales Service Provided:
-
Video technical support, Field maintenance and repair service, Free spare parts, Online support
-
Weight:
-
295kg
-
Size:
-
888X900X1345mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Weiss
-
Power:
-
1.5
-
Used for:
-
Hotel,laundry ,Hospital, school
-
Function:
-
washing and dehydrate
-
Operation:
-
Full automatic or Manual
-
Heating type:
-
Electric/Steam
-
Anti-shock:
-
Full suspension
-
Material:
-
304 Stainless Steel
-
Cleaning Process:
-
Hot Water Cleaning
-
Voltage:
-
220v/380v/415v
-
Capacity:
-
15kg/20kg/25kg/30kg/40kg/50kg
-
Advantage:
-
Long service time
Products Description
|

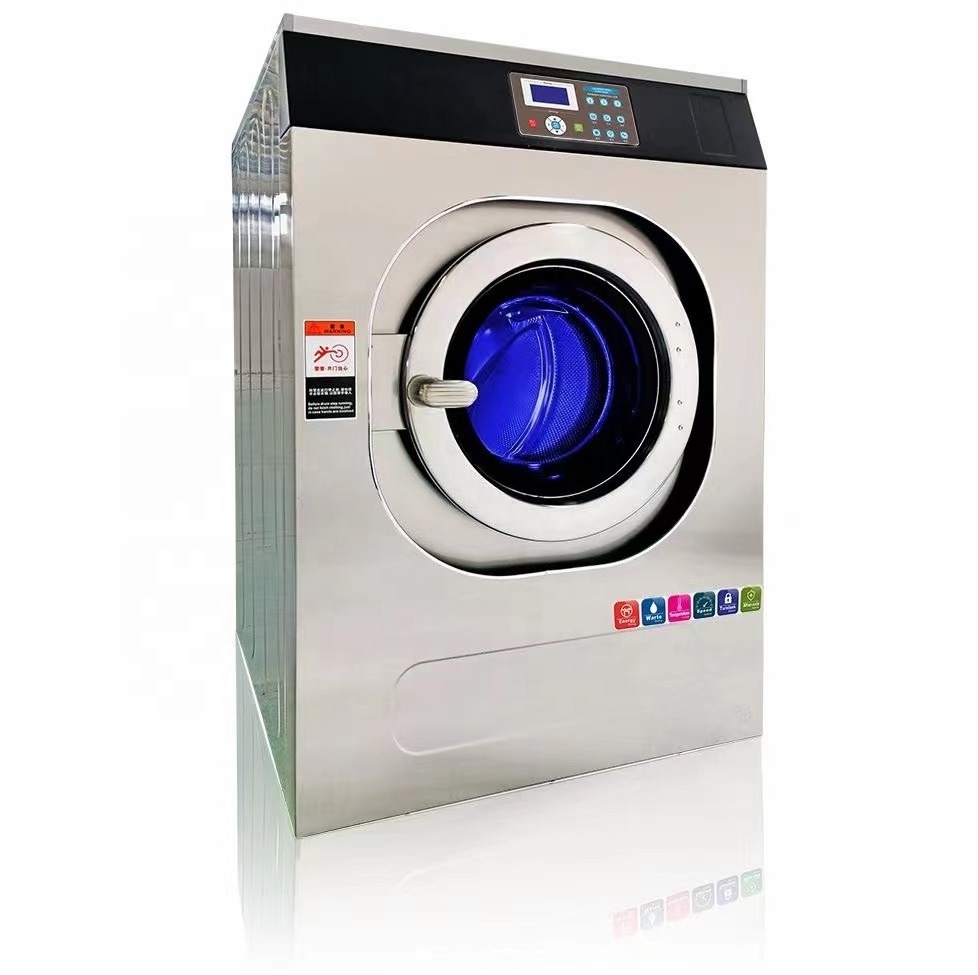

Automatic washer extractor(widely used in laundry, hotel, hospital, university, school, railway station)
|
|
|
|
|
||||
|
1. The frame, cabinet and suspension system have been designed to perform continuously in the highly industrial environment.
|
|
|
|
|
||||
|
2. SUS304 Stainless steel basket and outer drum and Stainless steel panels.
|
|
|
|
|
||||
|
3. All vital parts have undergone extensive lifecycle testing to ensure the design will endure even in the harshest environments.
|
|
|
|
|
||||
|
4. After extensive research & testing, the standard wash programs have been optimized in order to reduce water, detergent and energy consumption. The result is a saving of 25 percent, all without sacrificing wash performance.
|
|
|
|
|
||||
|
5. Safety door interlock system and the large door enables quick loading and unloading of the linen.
|
|
|
|
|
||||
|
6. High extraction speeds up to 350G.and the high extraction speeds considerably reduce drying time, resulting in energy & time savings in the drying process.
|
|
|
|
|
||||
|
7. Temperature,water level,cycle time freely programmable.
|
|
|
|
|
||||
|
8. Direct steam injection heating ,Built-in bearing lubrication system.
|
|
|
|
|
||||
|
9.Fixed support for long-distance transportation, avoid shaking damage during transit.
|
|
|
|
|
||||
|
* Elelctric ,Steam heating is optional.
|
|
|
|
|
||||
|
* All specification subject to change without notice.
|
|
|
|
|
||||
|
Model
|
SXT-120
|
SXT-160
|
SXT-220
|
XT-30
|
XT-50
|
||||
|
Rated capacity ( kg)
|
12
|
16
|
22
|
30
|
50
|
||||
|
Washing rotating speed (r/min)
|
48
|
48
|
45
|
42
|
40
|
||||
|
Extracting speed ( r/min)
|
440/800
|
440/800
|
440/800
|
440/780
|
440/760
|
||||
|
Motor power( kw)
|
1.1
|
1.5
|
2.2
|
3
|
4
|
||||
|
Heating power ( kw)
|
220V 6KW/380V 12KW
|
220V 6KW/380V 12KW
|
220V 6KW/380V 12KW
|
380V 18KW
|
380V 36KW
|
||||
|
Voltage
|
220V/380V/415V/50-50HZ
|
|
|
|
|
||||
|
Hot water inlet Dia.( mm)
|
20
|
20
|
20
|
20
|
25
|
||||
|
Cold water inlet Dia.( mm)
|
20
|
20
|
20
|
20
|
25
|
||||
|
Steam inlet（mm）
|
15
|
15
|
15
|
20
|
25
|
||||
|
Steam pressure（Mpa）
|
0.4-0.6
|
|
|
|
|
||||
|
Steam consumption（kg）
|
≤10
|
≤12
|
≤15
|
≤20
|
≤30
|
||||
|
Water drain（mm）
|
50
|
50
|
50
|
70
|
90
|
||||
|
Width（mm）
|
888
|
888
|
888
|
1300
|
1550
|
||||
|
Depth（mm）
|
805
|
900
|
1035
|
1300
|
1800
|
||||
|
Height
|
1345
|
1345
|
1345
|
1700
|
2000
|
||||
|
Weight（kg）
|
280
|
295
|
335
|
900
|
2200
|
||||
Left version
Right version
Back version
