Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Dimension(L*W*H):
-
570*130*175mm
-
Weight:
-
8 KG
-
Working Temperature Range:
-
30 - 500 ℃
-
Core Components:
-
Ceramic plates
-
Product name:
-
Commercial propane gas ceramic burner head in china
-
Nozzle:
-
Brass
-
Burning plate:
-
Ceramic with catalyst
-
Operation:
-
Individual operation
-
Environment:
-
Low pollution
-
Plate lifespan:
-
Above 11000hrs
-
NOx:
-
<10ppm
-
CO:
-
<80ppm
-
Application:
-
Industrial oven, power coating oven, rubber gloves production line
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
NG, LPG, Propane
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Dimension(L*W*H):
-
570*130*175mm
-
Weight:
-
8 KG
-
Working Temperature Range:
-
30 - 500 ℃
-
Core Components:
-
Ceramic plates
-
Product name:
-
Commercial propane gas ceramic burner head in china
-
Nozzle:
-
Brass
-
Burning plate:
-
Ceramic with catalyst
-
Operation:
-
Individual operation
-
Environment:
-
Low pollution
-
Plate lifespan:
-
Above 11000hrs
-
NOx:
-
<10ppm
-
CO:
-
<80ppm
-
Application:
-
Industrial oven, power coating oven, rubber gloves production line

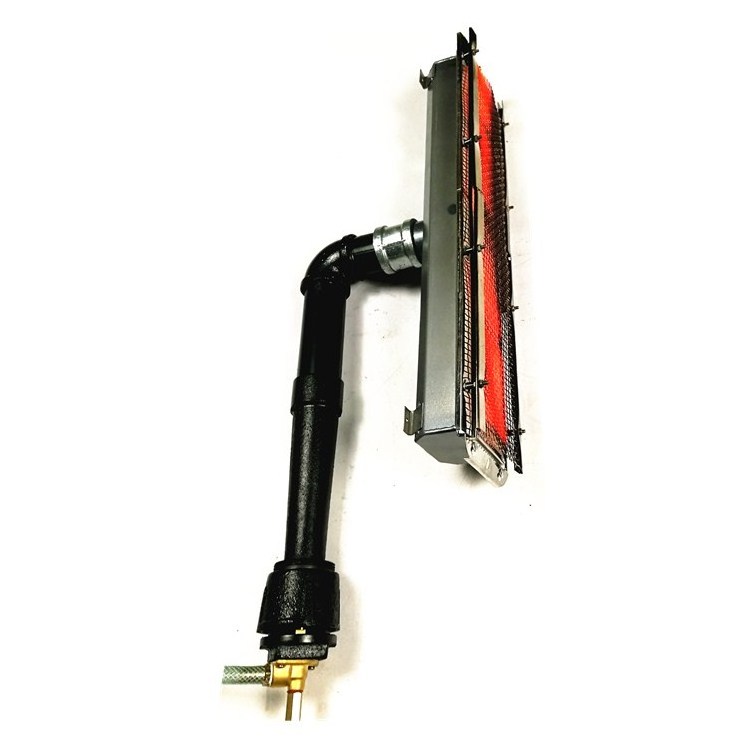

Commercial propane gas ceramic burner head in china
HD162
There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.
|
Model
|
Dimension
|
Weight
|
Gas type
|
Heat Output
|
|
Consumption
|
|
||
|
Engine
|
mm
|
kg
|
|
KW/h
|
Kcal/h
|
NG (m3/h)
|
LPG (kg/h)
|
||
|
HD61
|
423*80*94
|
3.8
|
LGP/NG
|
2.4
|
2030
|
0.18
|
0.17
|
||
|
HD81
|
555*80*115
|
5.8
|
LGP/NG
|
3.1
|
2700
|
0.24
|
0.22
|
||
|
HD82
|
219*164*108
|
4.8
|
LGP/NG
|
3.1
|
2700
|
0.24
|
0.22
|
||
|
HD101
|
690*80*115
|
6.9
|
LGP/NG
|
3.9
|
3380
|
0.3
|
0.28
|
||
|
HD162
|
570*130*175
|
8
|
LGP/NG
|
6.3
|
5400
|
0.49
|
0.45
|
||
|
HD410
|
410*175*220
|
8
|
LGP/NG
|
6.3
|
5400
|
0.49
|
0.45
|
||
|
HD242
|
840*130*175
|
11.7
|
LGP/NG
|
9.4
|
8120
|
0.75
|
0.68
|
||
|
HD600
|
600*175*220
|
11.7
|
LGP/NG
|
9.4
|
8120
|
0.75
|
0.68
|
||
|
HD262
|
930*130*175
|
13
|
LGP/NG
|
10.9
|
9360
|
0.8
|
0.74
|
||
20% gas consumption saved, less gas Emission
The gas burner applied catalyst technology on ceramic plates, which make burning fully and save 20% gas than normal gas burner.
Besides, it make less gas emission.
We are the Only Chinese company use catalytic on infrared gas burner.
1.MOQ of gas burner ?
MOQ is 50pcs.
2. Could I have a sample to test first?
Yes, trail order is OK.
3. Is the gas burner safe to use?
Yes. There is falme-out system to assure the the safe.
4.what's payment way ?
Paypal, west union, T/T, trade assurance,L/C.
If any need, welcome to contact us freely!!
