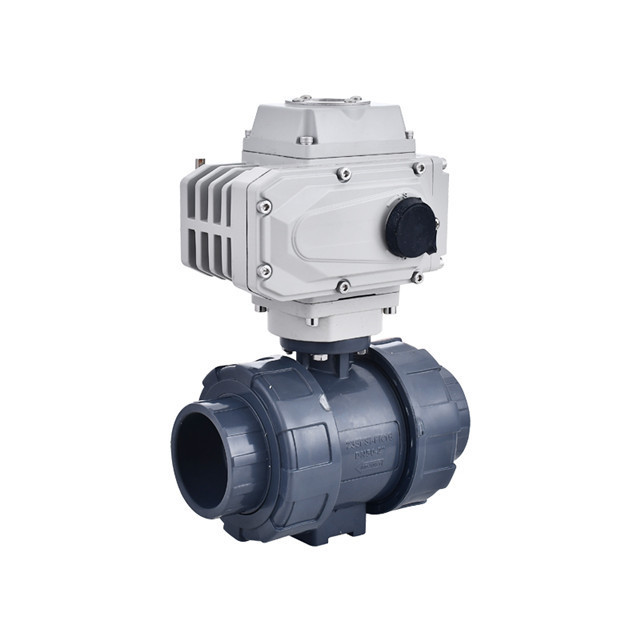

YIRUITE DN50 2 Way 3 Ways Electric Upvc Ball Valve 12V DC PVC Double Union Ball Valve Motorized Ball Valve

YIRUITE DN50 2 Way 3 Ways Electric Upvc Ball Valve 12V DC PVC Double Union Ball Valve Motorized Ball Valve

FOB Reference Price: Get Latest Price

≥1 Sets

US $115

≥100 Sets

US $105

≥300 Sets

US $99

≥500 Sets

US $85

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HK60-Q-P PVC Ball Valve

Power:: Electric, Electric Actuator Ball Valve

Brand Name:: YIRUITE

Media:: Water, Air, Gas, Oil, Liquid

Control Mode:: On Off Electric Actuator

Number of Ways:: 2 Way Ball Valve

Material:: PVC, UPVC

Sealing Material:: NBR, EPDM, FKM, PTFE

End Connection:: Double Union, Threaded

Voltage:: DC12~24V (±10%), AC110~220V, 50/60Hz

Type:: Electric PVC Ball Valve, BALL VALVES

Quick Details

Port Size:: 1/2"~4", DN15~DN100

Warranty:: 1 years

Place of Origin:: Guangdong, China

Model Number:: HK60-Q-P PVC Ball Valve

Power:: Electric, Electric Actuator Ball Valve

Brand Name:: YIRUITE

Media:: Water, Air, Gas, Oil, Liquid

Control Mode:: On Off Electric Actuator

Number of Ways:: 2 Way Ball Valve

Material:: PVC, UPVC

Sealing Material:: NBR, EPDM, FKM, PTFE

End Connection:: Double Union, Threaded

Voltage:: DC12~24V (±10%), AC110~220V, 50/60Hz

Type:: Electric PVC Ball Valve, BALL VALVES

Product Description

Feature:

● Made by UPVC material with features of low cost, lightweight, anti-corrosive & food safe
● 3 options valve actuator for choice to help your automation easier and meet your actuation needs. Including on/off type,
modulating type, intelligent type, explosion-proof type, IP68 type and auto return type valve actuators.
● Manual override is available. It could allow you to open or close the valve manually and keep your project safe when the power off.
● Also available in PPH, CPVC and PVDF material for you
● 2-way ball valve and 3-way ball valve are available

Item	YIRUITE DN50 2 Way 3 Ways Electric Upvc Ball Valve 12V DC PVC Double Union Ball Valve Motorized Ball Valve Plastic Ball Valve
Applicable Standards	GB, DIN, ANSI, ASME, JIS, API
Size Range	19mm to 102mm
Operating Pressure	PN16
Sealing Material	PTFE, PPL
End Connection	Tri-clamp
Temp. of Media	Range from -10 to +80°C
Size Range	1/2"~2", DN15~DN50
Operating Pressure	0~1.0MPa
Control Mode	On Off Type / Modulating Type
Optional Voltage	DC24V (±10%), AC110-220V, 50/60Hz
Body Material	Plastic, PVC, UPVC
Core Material	Plastic, PVC, UPVC
Sealing Material	NBR: -5℃~80℃, EPDM: -5℃~120℃, PTFE: -30°C~180°C
Structure	2 Way, 3 way
Connection	Double Union
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Optional Accessories	Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

FAQ

Q1. Is the sample order acceptable?
A: Yes, of course.

Q2. What is your MOQ?
A: 1 PCS.

Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.

Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.

Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.

Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.

Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.

Q8. What is the size of your factory?

A: We have 150 employees 100 CNC lathes and 30 employees responsible for quality inspection, so please rest assured of our quality and delivery date
