Quick Details
-
Place of Origin:
-
JIA
-
Brand Name:
-
Leader
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Working Temperature Range:
-
5 - 800 ℃
-
Design Pressure:
-
0.6Mpa
-
Wattage Range:
-
1KW to 1000KW and More as customer's demand
-
Temperature Range:
-
5℃--800℃
-
Heating medium:
-
Air/Gas
-
Optional:
-
Air blower/ Temperature controller
-
Tube material:
-
Stainless Steel 304/316/321/310s/titanium/Incoloy
-
Main application:
-
Pipeline Drying; Drying room; Greenhouse,etc
-
Heating Element:
-
Stainless steel fin tubular heater
-
Voltages available:
-
120V~415V, more voltage Customized
-
Certification:
-
CE ISO RoHS TUV
Quick Details
-
Type:
-
Liquid heater
-
Power Source:
-
Electric
-
Voltage:
-
110-600V
-
Place of Origin:
-
JIA
-
Brand Name:
-
Leader
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Working Temperature Range:
-
5 - 800 ℃
-
Design Pressure:
-
0.6Mpa
-
Wattage Range:
-
1KW to 1000KW and More as customer's demand
-
Temperature Range:
-
5℃--800℃
-
Heating medium:
-
Air/Gas
-
Optional:
-
Air blower/ Temperature controller
-
Tube material:
-
Stainless Steel 304/316/321/310s/titanium/Incoloy
-
Main application:
-
Pipeline Drying; Drying room; Greenhouse,etc
-
Heating Element:
-
Stainless steel fin tubular heater
-
Voltages available:
-
120V~415V, more voltage Customized
-
Certification:
-
CE ISO RoHS TUV
Products Description

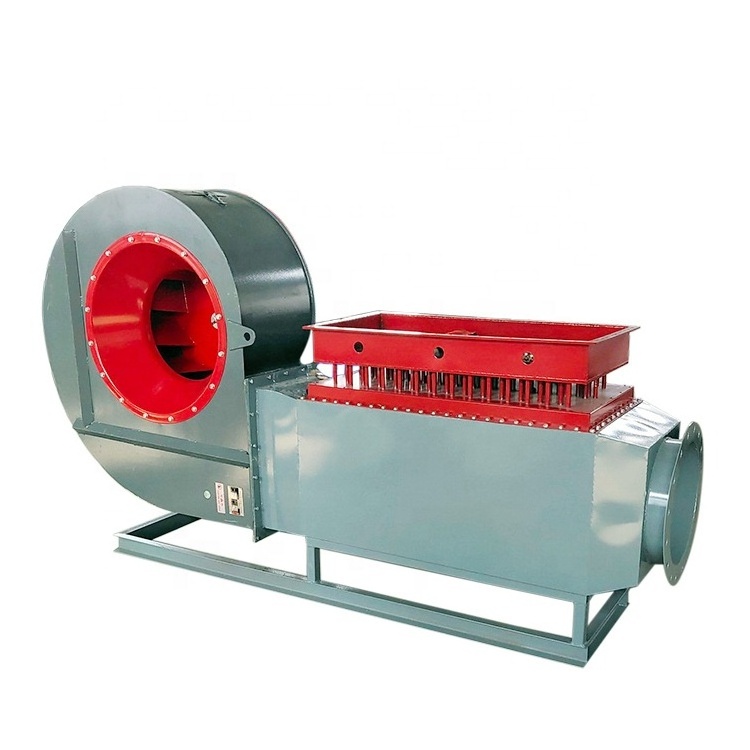

The Air Duct Heater is mainly used to heat the required air flow from the initial temperature to the required air temperature, and the maximum effective temperature is 800 ℃.
The electric air heater has a wide range of use: it can heat any gas.The generated hot air is dry, moisture-free, non-conductive, non-combustible, non-explosive, non-chemically corrosive, non-polluting, safe and reliable, and the heated space heats up quickly and the temperature can be controlled.
It has been widely used in many scientific research and production laboratories such as aerospace, industry, chemical industry and universities. It is especially suitable for the test of automatic temperature control and large flow high temperature combined system and accessories.
Details Images
Product Paramenters
|
Model
|
Power（kw）
|
Heating room inside size
(Length * Width * Height, mm)
|
Connection caliber outlet
|
Room temperature to — ℃
|
|
RH-AD-5
|
5
|
200*300*300
|
ø100
|
300℃
|
|
RH-AD-10
|
10
|
300*300*300
|
ø100
|
300℃
|
|
RH-AD-15
|
15
|
400*300*300
|
ø150
|
300℃
|
|
RH-AD-20
|
20
|
400*300*400
|
ø150
|
300℃
|
|
RH-AD-25
|
25
|
400*400*400
|
ø200
|
300℃
|
|
RH-AD-30
|
30
|
400*400*400
|
ø200
|
300℃
|
|
RH-AD-40
|
40
|
500*400*400
|
ø250
|
300℃
|
|
RH-AD-50
|
50
|
600*400*400
|
ø250
|
300℃
|
|
RH-AD-60
|
60
|
700*400*400
|
ø250
|
300℃
|
|
RH-AD-70
|
70
|
700*400*500
|
ø300
|
300℃
|
|
RH-AD-80
|
80
|
800*400*500
|
ø300
|
300℃
|
|
RH-AD-90
|
90
|
900*400*500
|
ø350
|
300℃
|
|
RH-AD-100
|
100
|
1000*400*500
|
ø350
|
300℃
|
|
RH-AD-120
|
120
|
1000*500*500
|
ø400
|
300℃
|
|
RH-AD-140
|
140
|
1000*500*500
|
ø400
|
300℃
|
|
RH-AD-160
|
160
|
1000*700*500
|
ø400
|
300℃
|
|
RH-AD-180
|
180
|
1000*700*500
|
ø450
|
300℃
|
|
RH-AD-200
|
200
|
1000*700*500
|
ø450
|
300℃
|
|
RH-AD-250
|
250
|
1000*800*800
|
ø500
|
300℃
|
|
RH-AD-300
|
300
|
1200*1000*1000
|
ø500
|
300℃
|
|
RH-AD-350
|
350
|
1200*1000*1000
|
ø600
|
300℃
|
|
RH-AD-400
|
400
|
1400*1000*1000
|
ø600
|
300℃
|
|
RH-AD-450
|
450
|
1400*1000*1000
|
ø700
|
300℃
|
|
RH-AD-500
|
500
|
1400*1000*1000
|
ø700
|
300℃
|
|
RH-AD-600
|
600
|
1600*1000*1000
|
ø800
|
300℃
|
|
RH-AD-700
|
700
|
1800*1000*1000
|
ø800
|
300℃
|
|
RH-AD-800
|
800
|
1800*1000*1000
|
ø800
|
300℃
|
|
RH-AD-900
|
900
|
2000*1000*1000
|
ø800
|
300℃
|
|
RH-AD-1000
|
1000
|
2400*1000*1000
|
ø800
|
300℃
|
When order, would you please share us with the following datas?( Standard Voltage 380V)
1)
Voltage；Phase line
2) Temperature range
3) Heating time
4) Usage environment
5)
The space dimension that needs to be heated (Length*Width*Height, meters)
Package: Plywood or export wooden case packaging
Delivery: By sea or air
