Quick Details
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Efficiency(lm/w):
-
200
-
Product Weight（kg）:
-
5
-
Input Voltage(V):
-
AC100-240V 50/60Hz
-
Lamp Luminous Flux(lm):
-
/
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-10 - 40
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Big Dipper
-
Emitting Color:
-
RGBW
-
Power consumption:
-
100W
-
Light source:
-
100W white lamp beads and 21 RGB lamp beads
-
DMX channel:
-
14CH
-
Movement angel:
-
540°/270°
-
Dimming:
-
0-100% linear dimming
-
Key word:
-
Stage Effects Equipment
-
Function:
-
Automatic Color Changing
-
Control mode:
-
Sound/Auto/Master slave/DMX512
-
Color:
-
7 Color and white light
-
Pattern:
-
7 pattern and white light
Quick Details
-
Color Temperature(CCT):
-
7000K
-
Type:
-
Moving Head Lights
-
Application:
-
Sports Stadiums
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Efficiency(lm/w):
-
200
-
Product Weight（kg）:
-
5
-
Input Voltage(V):
-
AC100-240V 50/60Hz
-
Lamp Luminous Flux(lm):
-
/
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-10 - 40
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Big Dipper
-
Emitting Color:
-
RGBW
-
Power consumption:
-
100W
-
Light source:
-
100W white lamp beads and 21 RGB lamp beads
-
DMX channel:
-
14CH
-
Movement angel:
-
540°/270°
-
Dimming:
-
0-100% linear dimming
-
Key word:
-
Stage Effects Equipment
-
Function:
-
Automatic Color Changing
-
Control mode:
-
Sound/Auto/Master slave/DMX512
-
Color:
-
7 Color and white light
-
Pattern:
-
7 pattern and white light

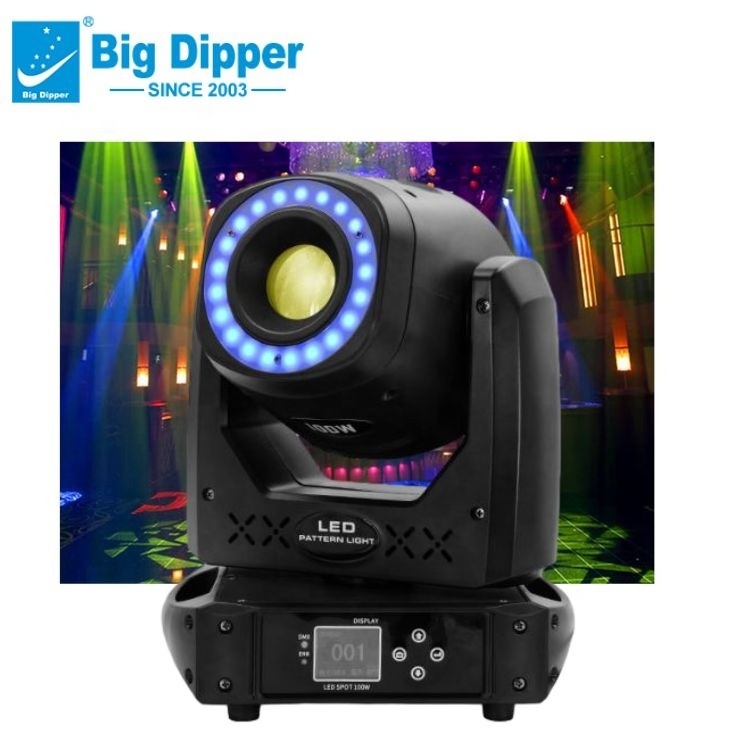

Model:LS105
100W moving head Spot light
Widely used in KTV, bars, clubs, discos, stage and other places
atmosphere lamp shaking beam spotlight color rotating lights LED pattern lights.
|
Product parameters
|
|
|
|
Model : LS105
|
Luminance Flux : 1100.8 lm
|
|
|
Size : 254*240*352mm
|
Color : 7 color + blank color
|
|
|
Packing : 1pcs/2pcs
|
Gobo : 7 + blank gobo / 6 + blank gobo
|
|
|
N.W / G.W: About 9.84kg / 12.4kg
|
Channel : 14CH
|
|
|
Power Supply : AC100-240V 50/60Hz
|
1m illumination :50200lux
|
|
|
Rated Power :127W
|
Color rendering index: 81Ra
|
|
|
Movement Angle : pan:540° Tilt : 270°
|
Color Temperature : 7000K
|
|
|
Beam Angle : 15°
|
Lifespan : 100000 Hours
|
|
|
Control Model : Sound / Auto / DMX512 / Master-slave / RDM
|
Application: Stage wedding party bar Disco place
|
|
|
Power supply parameters
|
|
|
|
|||
|
Input voltage
|
Input current
|
Input power
|
Power factor
|
|||
|
100V / 60Hz
|
1.731A
|
126.6W
|
0.73PF
|
|||
|
110V / 60Hz
|
1.588A
|
125.5W
|
0.719PF
|
|||
|
120V / 60Hz
|
1.471A
|
124.9W
|
0.708PF
|
|||
|
220V / 50Hz
|
0.913A
|
124.3W
|
0.618PF
|
|||
|
230V / 50Hz
|
0.878A
|
123.8W
|
0.612PF
|
|||
|
240V / 50Hz
|
0.848A
|
123.6W
|
0.607PF
|
|||
|
Lamp high&low temperature testing
|
|
|
||
|
/
|
Ambient temperature
|
|
||
|
|
-25℃
|
+40℃
|
||
|
Whole machine power
|
116.8 W
|
116.8 W
|
||
|
Light flux
|
1100.8 lm
|
1100.8 lm
|
||
|
Color temperature
|
14650 K
|
14650 K
|
||
|
Color rendering index
|
81.5 Ra
|
81.5 Ra
|
||
|
Waves length
|
474.6 nm
|
474.6 nm
|
||
PACKAGING AND LIST
Inner packaging
Size: 400*340*310mm
packing:1pcs
Net weight：4.92KG
Outer packaging
Size: 420*350*650mm
packing:
2pcs
Net Weight: 9.84KG
