Qingdao Puhua Heavy Industrial Group was established in 2006. The company focus on design, research, development, manufacturing and export of sand blasting booths, sand processing equipment, environmental protection equipment, a variety of shot blasting machine, including roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type etc. All products are professionally designed by our highly-experienced engineers with Auto CAD.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1360 KG
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Product name:
-

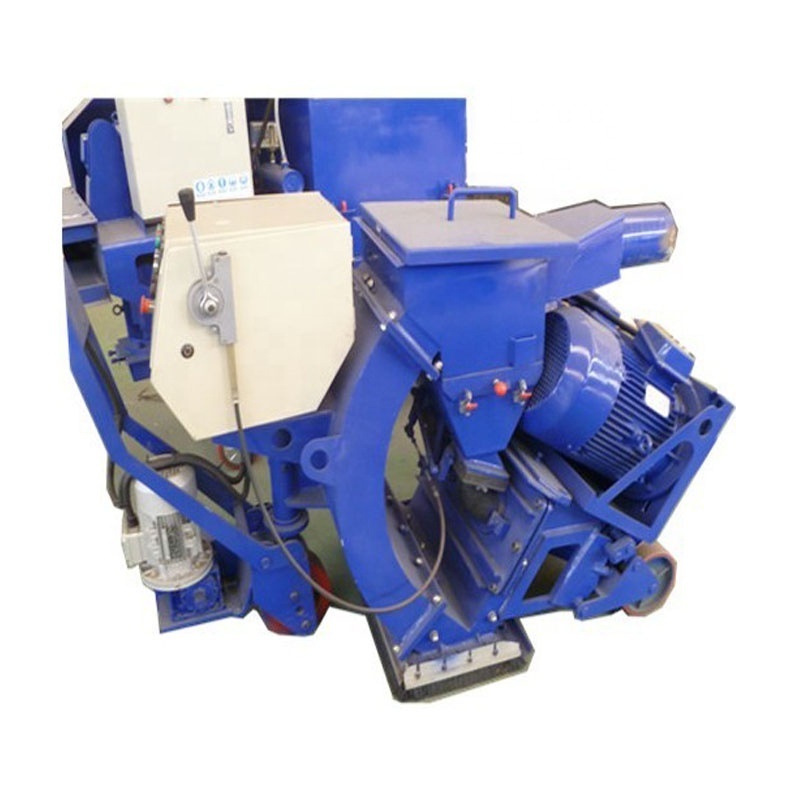

Concrete and Steel Plate Mobile Shot Blasting Machine Price
-
Machine:
-
Steel Plate Mobile Shot Blasting Machine
-
Certificate:
-
CE
-
Type:
-
Mobile Shot Blasting Machine
-
Application:
-
Rust Removal
-
Experience:
-
Over 20 years design experience
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Road Surface Shot Blasting
-
Advantages:
-
High Cleaning Effect
-
Dust collector:
-
Filter Cartridge
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Puhua
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
1360 KG
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Product name:
-
Concrete and Steel Plate Mobile Shot Blasting Machine Price
-
Machine:
-
Steel Plate Mobile Shot Blasting Machine
-
Certificate:
-
CE
-
Type:
-
Mobile Shot Blasting Machine
-
Application:
-
Rust Removal
-
Experience:
-
Over 20 years design experience
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Road Surface Shot Blasting
-
Advantages:
-
High Cleaning Effect
-
Dust collector:
-
Filter Cartridge
Our Company
Company Introduction:
|
Shot blasting machine technical strength
|
|
|
|
|||
|
1
|
The first blasting & painting multifunction machine used for high-speed rail;
|
|
|
|||
|
2
|
The first dedicated shot blasting machine used for aggrandizement floor stainless steel mold texturing;
|
|
|
|||
|
3
|
The first dedicated shot blasting machine used for high-speed rail turnout;
|
|
|
|||
|
4
|
The first dedicated double-rotating trolley shot blasting machine used for polysilicon;
|
|
|
|||
|
5
|
The first dedicated shot blasting machine used for oil field special-purpose cable tray;
|
|
|
|||
|
6
|
The first marble plate imitation litchi surface shot blasting machine.
|
|
|
|||
Product Description
MobileType Shot Blasting Machine Product Application:
* Maintenance of the bridges * Cleaning the park apron in airport
* Maintenance of highways
* Maintenance of municipal road
* Mantenance and derusting of hull surface
* Removal of road zebra crossing
* Cleaning, derusting for the surface of steel structure
* Ground floor project-based surface treatment
* Other surface treatment........
|
Specification of mobile type shot blasting machine
|
|
|
|
|
||||
|
Model
|
PHLM240
|
PHLM550
|
PHLM600
|
PHLM800
|
||||
|
Total Power
|
18kw
|
29kw
|
29kw
|
38kw
|
||||
|
Effective cleaning width
|
240mm
|
550mm
|
600mm
|
800mm
|
||||
|
Productivity on concrete
|
120m
2
/h
|
300m
2
/h
|
330m
2
/h
|
450m
2
/h
|
||||
|
Blasting wheel quantity
|
One
|
Two
|
Two
|
Two
|
||||
|
Traveling speed
|
0.5-25 m/min
|
0.5-25 m/min
|
0.5-25 m/min
|
0.5-20 m/min
|
||||
|
Dust collecting type
|
Blowback
cartridge filters |
Blowback
cartridge filters |
Blowback
cartridge filters |
Blowback
cartridge filters |
||||
|
Travel type
|
Horizontal,
self propelled |
Horizontal,
self propelled |
Horizontal,
self propelled |
Horizontal,
self propelled |
||||
|
Layout (mm)
|
1600*432*1016
|
1900* 890* 1200
|
2050*950*1460
|
2150×1180×1450
|
||||
|
Weight (with dust collector)
|
1135kg
|
1395kg
|
1460kg
|
1685kg
|
||||
Certifications
Recommend Products
Our Advantages
|
1
|
20 years professional production experience in shot blasting machinery industry.
|
|
|
|
|||
|
2
|
50,000 m
2
production workshop, strong production capacity.
|
|
|
|
|||
|
3
|
Professional senior engineer develop the best solution.
|
|
|
|
|||
|
4
|
Strict quality control system, CE, BV, ISO9001 certificate available.
|
|
|
|
|||
|
5
|
Main components adopt imported international famous brand.
|
|
|
|
|||
|
6
|
Timely delivery, one hour to Qingdao port.
|
|
|
|
|||
|
7
|
Professional after-sale service, Email will be reply in 24 hours.
|
|
|
|
|||
|
8
|
Site installation and commissioning in your factory
|
|
|
|
|||
Packing & Delivery
FAQ
Q: How many days to produce this machine?
A: Some standard machines in stock, can be delivered right away after your deposit.
Customized specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 30 to 50 days.
Q: What does your factory do regarding quality control?
A: We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.
Q: What's your machine quality guarantee?
A: Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
Q: Could you give installation and commissioning overseas? How long will it take?
A: Yes, we supply overseas service, customers shall pay for the engineers flight tickets and local transport, hotel, food.
Small machines usually takes 5 days, while big machines usually takes about 20 days even one or two months.
Q: How can I trust you to deliver the right machine as I ordered?
A: We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Puhua is ALIBABA's Golden supplier with SGS assessment. We have never got complaint from our customers.
