Quick Details
-
Power supply:
-
12VDC 24VDC 110VAC 220VAC 380VAC
-
Alarm range:
-
Full range of alarm range is set
-
Thread interface:
-
M20*1.5 G1/4 G1/2
-
Measurement medium:
-
Gas, water, oil
-
Use the temperature:
-
- 20 ~ 80 ℃
-
Electrical protection:
-
Anti-polarity protection, short-circuit protection (24VDC)
-
Waterproof grade:
-
IP65
-
Sampling frequency:
-
5 times/sec
Quick Details
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Accuracy grade:
-
0.5%FS 0.25%FS
-
Power supply:
-
12VDC 24VDC 110VAC 220VAC 380VAC
-
Alarm range:
-
Full range of alarm range is set
-
Thread interface:
-
M20*1.5 G1/4 G1/2
-
Measurement medium:
-
Gas, water, oil
-
Use the temperature:
-
- 20 ~ 80 ℃
-
Electrical protection:
-
Anti-polarity protection, short-circuit protection (24VDC)
-
Waterproof grade:
-
IP65
-
Sampling frequency:
-
5 times/sec

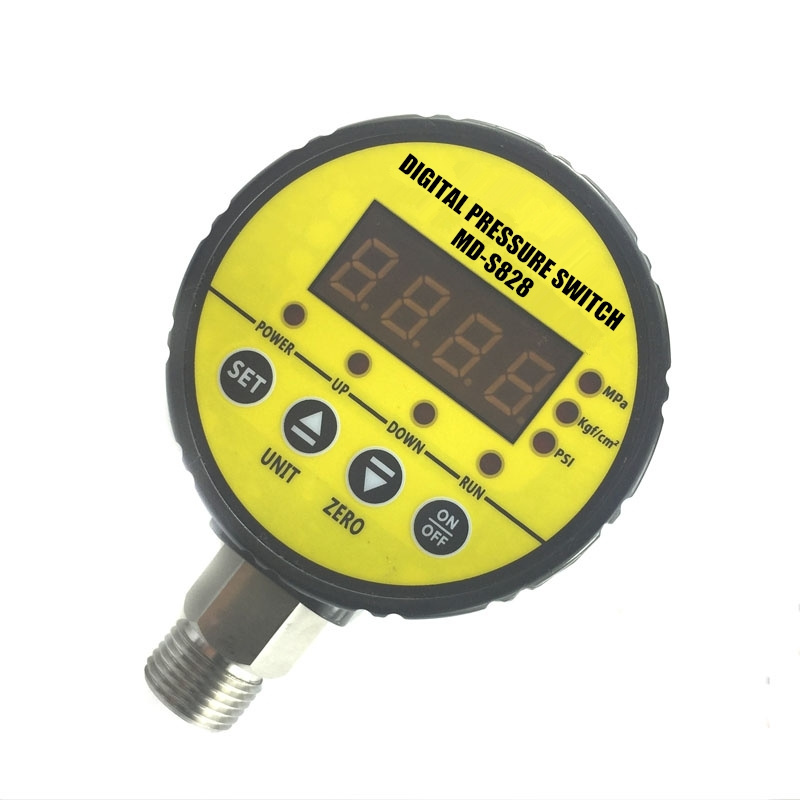

The product has high precision, small hysteresis, fast response, stable and reliable performance, easy operation, and the advantages of simple and flexible installation, microcomputer technology is used in the automatic pressure control of high technology products.
It is widely used in chemical, mechanical, hydraulic, power and other system gases, liquid pressure control and automatic control. filled water treatment system to cardiac pumps and compressors to cardiac electrical equipment automation has engineering machinery cardiac medical equipment to cardiac farm machinery equipment to cardiac test frame to cardiac hydraulic and pneumatic systems.
|
Range |
0-1...6...10...16...25...50...100...250...400...600...1000...1600 bar 0-0.1...0.6...1...1.6...2.5...5...10...25...40...60...100...160 MPa |
|
Over Pressure |
≤10MPa 200% , >10MPa 150% |
|
Accuracy grade |
0.5%FS 0.25%FS |
|
Power supply |
12VDC 24VDC 110VAC 220VAC 380VAC |
|
Sampling frequency |
5 times/sec |
|
Output signal |
In the two groups, the signals are often closed |
|
Drive power |
220V3A 24V5A |
|
Alarm range |
Full range of alarm range is set |
|
Thread interface |
M20*1.5 G1/4 G1/2 |
|
Measurement m edium |
Measuring the non-corrosive gases and liquids of the medium water, air and oil |
|
Pressure Connection |
M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
|
Interface material |
304 stainless steel |
|
Shell |
The shell is made of high-strength ABS plastic |
|
Use the temperature |
- 20 ~ 80℃ |
|
The storage temperature |
- 40 ~ 100 ℃ |
|
Authentication mode |
CE authentication |
|
Electrical protection |
Anti-polarity protection, short-circuit protection (24VDC) |
|
Waterproof grade |
IP65 |
