Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-C01
-
Type:
-
Automatic Door Operators
-
Input Voltage:
-
24VDC
-
Protection lever:
-
IP54
-
Max single-leaf length:
-
2.5m
-
Max single-leaf weight:
-
300kg
-
Environment temperature:
-
-20 to + 55 celsius degree
-
Motor's power:
-
40W
-
Rotational speed:
-
250PRM
-
Rod's running speed:
-
1.6m/s
-
Rod's max travel:
-
300mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Others
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT
-
Model Number:
-
JJ-PKM-C01
-
Type:
-
Automatic Door Operators
-
Input Voltage:
-
24VDC
-
Protection lever:
-
IP54
-
Max single-leaf length:
-
2.5m
-
Max single-leaf weight:
-
300kg
-
Environment temperature:
-
-20 to + 55 celsius degree
-
Motor's power:
-
40W
-
Rotational speed:
-
250PRM
-
Rod's running speed:
-
1.6m/s
-
Rod's max travel:
-
300mm

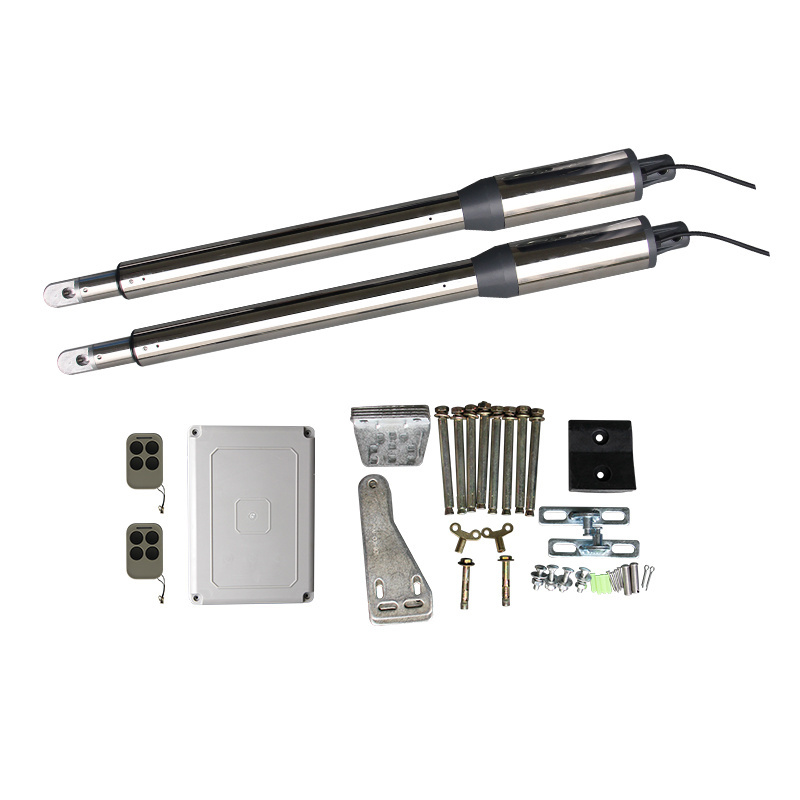

Piston drive linear actuator swing gate door openers
1. Features of the gate opener:
1). in case of power failure, release the clutch easily, and operate the gate manually
2). stop working when gate meets with obstacle
3). easy to install without direcion
4). Controlling single or double-leaf is optional
5). One control unit for two motors, control panel are available to photocells, loop detecor, IC card reader & alarm lamp
6). Release unit in case of power failure
2. Controller Technical Parameter:
| Supply power | ~220V(+10%)/50Hz |
| Transfer | ~220V/24VDC 100W |
| Environment temperature | -20°C~+55°C |
| Protection fuse | 8A |
| Running time protection | adjustable |
| Auto closing delay time | adjustable |
| Force | adjustable |
a. Controlling single or dluble-leaf is optional.
b. Auto closing delay, photocell and loop detector.
c. 24VDC back-up battery can be input.
3. Installation Diagram:
4. Spec size of the gate opener:
5. Certifications:
