Quick Details
-
Product name:
-
Infrared passenger flow counter
-
Application:
-
Chain stores, supermarkets, scenic spots, libraries, etc
-
Size:
-
65mm*50mm*22mm
-
Power supply:
-
Lithium battery and USB
-
Data cache:
-
1 year
-
Installation method:
-
3M double-sided tape or screw fixed
-
Infrared viewing distance:
-
15 meters
-
Color:
-
Black White
-
Display:
-
OLED display
Quick Details
-
Brand Name:
-
FOORIR
-
Place of Origin:
-
Sichuan, China
-
Model Number:
-
HX-HE2
-
Product name:
-
Infrared passenger flow counter
-
Application:
-
Chain stores, supermarkets, scenic spots, libraries, etc
-
Size:
-
65mm*50mm*22mm
-
Power supply:
-
Lithium battery and USB
-
Data cache:
-
1 year
-
Installation method:
-
3M double-sided tape or screw fixed
-
Infrared viewing distance:
-
15 meters
-
Color:
-
Black White
-
Display:
-
OLED display
|
Infrared passenger flow counter
|
|
|
|
Model
|
HX-HE2
|
|
|
sight distance(coverage)
|
Indoor 1m-20m、outdoor 1m-17m
|
|
|
Accuracy
|
standard environment≥80%
|
|
|
height range
|
1.0m-1.4m
|
|
|
power
|
0.004~0.37W
|
|
|
Power supply
|
3.7VLi-ion(2000mAh)/Type-c wired power supply
|
|
|
communication
|
WI-FI(2.4Ghz)
|
|
|
addressing
|
DHCP
|
|
|
Data upload
|
TCP/HTTP POST
|
|
|
Offline cache
|
3267 data
|
|
|
Battery life
|
1-3 months under standard environment
|
|
|
working temperature
|
-0°C~40°C
|
|
|
Working humidity
|
10~80 %RH(Non condensing)
|
|
|
Storage temperature
|
-40°C~70°C
|
|
|
Storage humidity
|
5~90 % RH(Non condensing)
|
|
|
Accessories
|
Charger x1, battery x2, bracket x2, 3M glue x4, certificate x1, manual x1, warranty card x1
|
|
|
Product Specifications
|
size(mm) 65x 50 x 25, Net Weight (g): 76
|
|
|
Packaging Specifications
|
size(mm): 185x150x67, Weight (g): 380 (including accessories)
|
|
|
Outer box specifications
|
size (mm): 390x370x325 (FCL can hold 20 units), net weight (g): 680
|
|
|
Installation method
|
wall-mounted
|
|
|
Name
|
Infrared people counter stand-alone version
|
Infrared people counter WIFI version
|
Infrared people counter WEB version
|
||
|
Model
|
HX-HE1
|
HX-HE2
|
HX-HE3
|
||
|
count
|
In / out bidirectional counting
|
|
|
||
|
Data upload interval
|
Not support
|
Support
|
Not support
|
||
|
Power supply mode
|
Type-c/18650 battery
|
|
|
||
|
Endurance time
|
3 months
|
|
|
||
|
Mobile browser settings and viewing
|
Not support
|
|
Support
|
||
|
Mobile browser query and download data
|
Not support
|
|
Support
|
||
|
WiFi link to upload data
|
Not support
|
Support
|
Not support
|
||
|
Management and query methods
|
Device
|
Cloud platform
|
Mobile phone browser
|
||
|
Data Query
|
The device can query the accumulated data of the past 90 days and every day, the accumulated data of the past 100 weeks and every
week, the accumulated data of the past 36 months and every month, and the accumulated data of the past 10 years and every year
|
Cloud platform multi-dimensional data query, analysis and equipment management
|
On the device, you can query the accumulated data of the last 7 days and every hour, the accumulated data of the last 90 days and
every day, the accumulated data of the last 100 weeks and every week, the accumulated data of the last 36 months and every month,
and the accumulated data of the last 10 years and every year
|
||

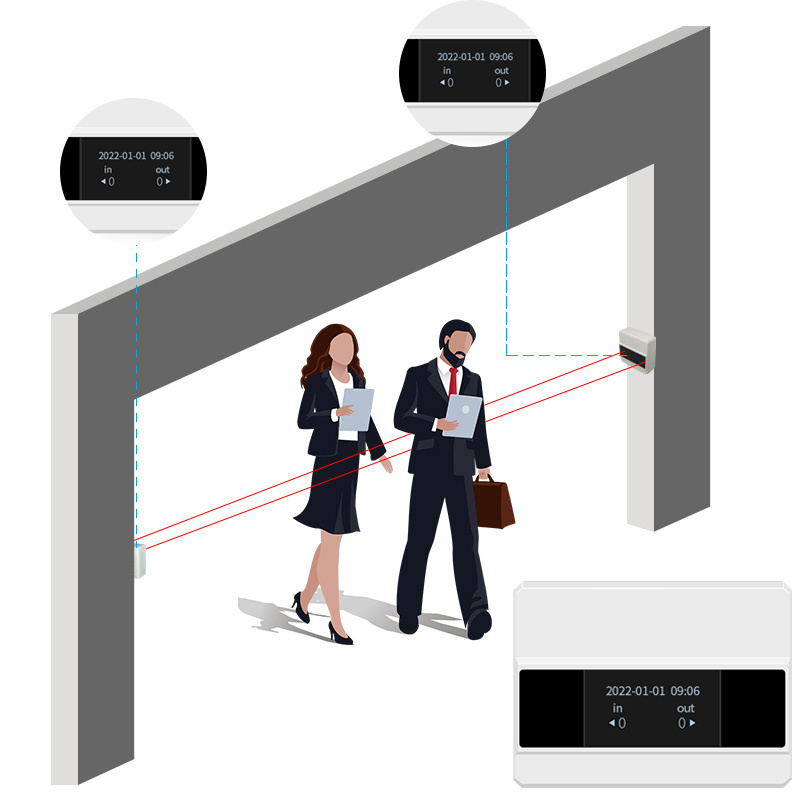

Passenger flow control，screen display
Know the passenger flow information in the area, warning of excessive number of people, more quickly to do personnel control
，Provide customized large screen display service, if you need to customize, please contact us.
Sales countries
Battery powered, long service time
Infrared passenger flow is small and convenient, equipped with a rechargeable battery, can last two months on a single charge
WIFI LINK
S
Through WIFI link to the device platform, it can query passenger flow data in real time and generate data tables according to 5 minutes/half hour/hour/day/week/month/year
We can provide you with a free website platform to monitor and analyze data. The platform supports both Chinese and English modes. If you need to customize other languages, please contact us for more details
Support for custom
We support product customization service, Lora/NB lot can be customized, manual, packaging, charger, body LOGO can be customized, if you need to customize, please contact us
