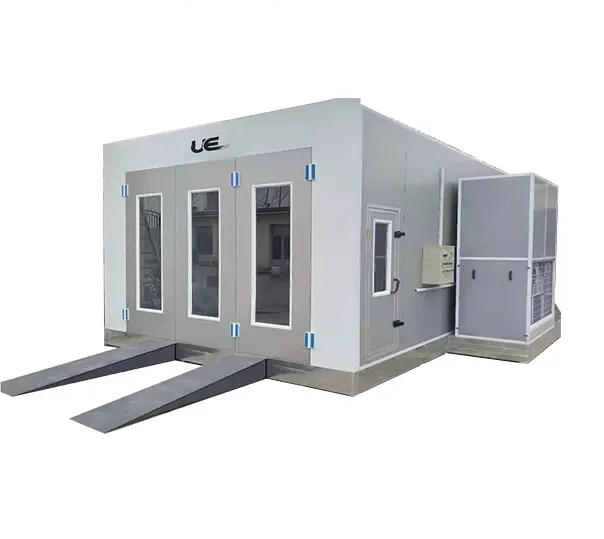

UE-780 economical halogen shortwave infrared heating paint room portable Automotive Paint Tools

way to heat up

Halogen shortwave infrared heater

Outer diameter size (mm)

7000×5200×3400 (L*W*H)

Inner diameter size (mm)

6900×3900×2650 (L*W*H)

Voltage frequency

380v 50HZ

Unit device

The left and right back sides are optional.

Gate parameters

3000×2600 (W*H) three handmade sheet metal doors. The inner and outer panels of each door are sprayed with 0.7mm galvanized sheet,
the inner and outer are covered with protective film to reduce surface scratches, the inner and outer sides of the door are welded
with 1.2 galvanized keel, and the fixed hinges are welded to the keel with 6mm cold-rolled steel as embedded parts To ensure that
the door does not sag, use 140×100 aluminum mold hinges with a thickness of 15mm to ensure strength and beauty. The observation
window adopts internal high temperature rubber sealing strip, and the door is filled with 18KG flame-retardant EPS material and
the door panel is glued to ensure the overall flatness.

Work door

700×1800(W*H)mm, 1 fan, special aluminum alloy edging, to ensure that the seal is not deformed.

Wall

50mm EPS foam color steel composite board, the thickness of the iron sheet is 0.376mm on both sides, and the foam density is
10KG/m3 with keel on both sides, which can avoid tearing when loading and unloading and improve the wind resistance. The inner
surface is specially customized paper white, which improves the overall brightness of the room, and the board is covered with a
protective film to reduce scratches.

roof

Using 0.7mm galvanized sheet, the machine-made assembly line is once pressed into shape, with fine workmanship and accurate size.

Platform

The bottom beam 1.2mm galvanized sheet is machine-formed, 30×4mm steel grid cuts 12 pieces, a total of 2; the checkered plate
2.0mm, a total of 3 Surface electrostatic spraying hoarding: 1.0mm galvanized sheet, one-time press forming

illumination

It adopts energy-saving LED lighting, 8 groups on the top, each group: 3X16W, the light box shell is made of 0.7 galvanized sheet
once pressed into shape and the surface is electrostatic sprayed.

Blower

Using Jiangsu Hengkang YDW series centrifugal fan, each power 3KW, total air volume: 25000m3/h

Heating system

Using halogen shortwave infrared radiator heating device: equipped with 8 groups of baking lamps, each group of 3 lamps, each 1kw,
total power 24kw; double-door guard, external installation.

Electric control system

Delixi components of the main electrical appliances, with lighting switch, spray paint switch, paint switch and working indicator,
temperature control, emergency stop, three-way control

Air purification system

The inlet filter cotton is Guangdong Weite high-quality filter cotton, which can effectively filter dust larger than 10 microns;
the top filter cotton VF-600, can effectively filter dust larger than 5 microns.

Cabinet material and device method

40mm×40mm×1.5mm cabinet tube and 0.7mm galvanized sheet, electrostatic spray surface treatment.

Exhaust duct

Standard configuration: 2 straight and 1 bend, 700×700×900mm, using 0.6mm, galvanized sheet machine molding.

colour

gray
