- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Warranty:
-
24 Months
-
Product name:
-
Tire Changer Machine
-
Certification:
-
CE / ISO9001
-
Outside clamping:
-
10"~24"
-
Inside clamping:
-
12"~26"
-
Weight:
-
298KG
Quick Details
-
Motor Power:
-
1.0-1.5kw
-
Operating Pressure:
-
8-10P
-
Power Supply:
-
110v/220v/380v/230v/240v
-
Place of Origin:
-
China
-
Warranty:
-
24 Months
-
Product name:
-
Tire Changer Machine
-
Certification:
-
CE / ISO9001
-
Outside clamping:
-
10"~24"
-
Inside clamping:
-
12"~26"
-
Weight:
-
298KG

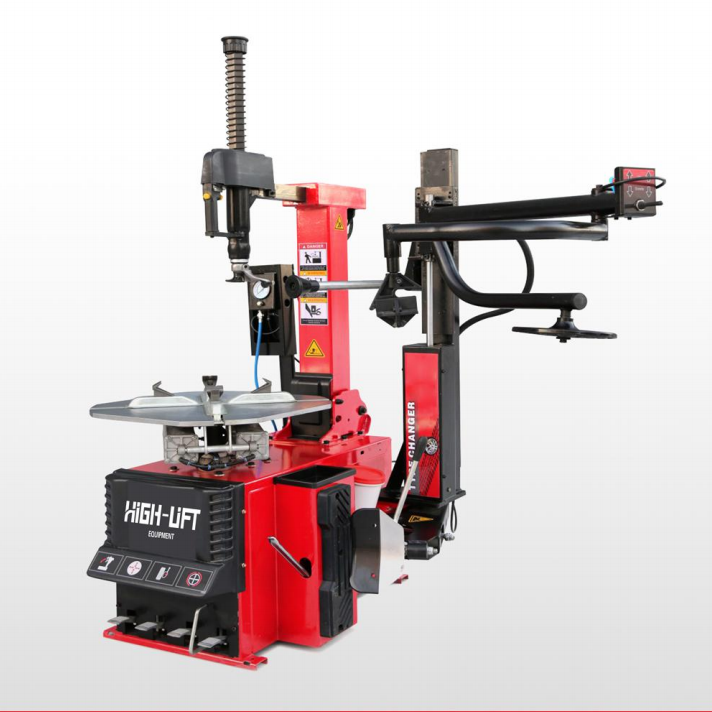

HIGH QUALITY FULL AUTO TIRE CHANGER /12-26'' WITH CE CERTIFICATE -DS-706A
TECHNICAL PARAMETERS:
| rim clamp from outside | 10''-24'' |
| rim clamp from inside | 12''-26'' |
| max.wheel diameter | 1040mm |
| tire width | 3''-15'' |
| working pressure | 8-10bar |
| voltage | 110/220/380/230v |
| power | 1.0kw-1.5kw |
| machine weight | 298kg |
ABOUT THIS MACHINE:
Application range : Applicable for changing car tyres whose rim diameter is between 10''-26''
Remarks: The marked rim diameter size is the actual size of opening and gripping of new type jaws.
Product features: The tyre changer can go backwards automatically and it is equipped with assisting device of automatic swinging arm ,pneumatically locking device and automatic dismounting hook device.
Machine functions:
- the column going backwards pneumatically, pneumatic push-pull locking automatically .
- lifting tyre up function makes operation easy and quick.
- central pressing tyre function makes jaws grip rim fast .
- replaceable swinging arm pressing head can fix position automatically.
- adjusting mobile slider to be suitable for different rim ranges.
- the motion structure of the four automatic alignment gripping jaws on the ture plate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.
- the once forming mobile slider and the design of processing machinery stucture made it not easy to deformation .
- the work head plated hard chrome on the surface through high frequency sudeen fire, this kind of treating processes insure the intensity.
- the round working ture plate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth .
- the tools touching rim directly like changing working haed,jaws,crowbar and spade are all equipped with protector, these protectors ensure no hurt to the rim.
- it has good personal presentation, thick steel plate and super strong rigidness.
machine quality: this product gained europe CE certification. machine in factory
As we are factory , yes, we do OEM for your machine, we can following your drawing and making the production.
