Quick Details
-
Product name:
-

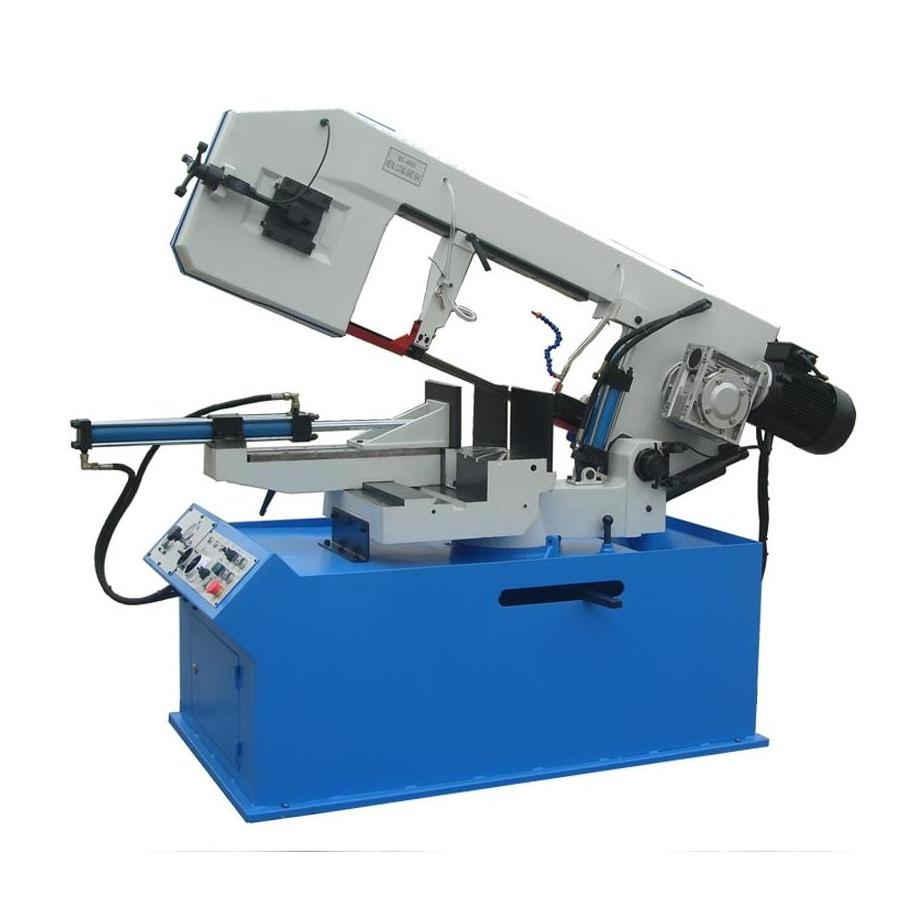

Metal Cutting Band Saw Machine
-
Keyword:
-
band saw machine
-
Model:
-
BS-650G
-
Color:
-
Customizable
-
Packing Size:
-
293x220x200cm
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Motor:
-
5.5Kw
-
Model Number:
-
BS-650G
-
After-sales Service Provided:
-
Online Support
-
Brand:
-
Customer's Brand
Quick Details
-
Place of Origin:
-
JIANGSU
-
Brand Name:
-
ALMACO
-
Weight (KG):
-
2730
-
Product name:
-
Metal Cutting Band Saw Machine
-
Keyword:
-
band saw machine
-
Model:
-
BS-650G
-
Color:
-
Customizable
-
Packing Size:
-
293x220x200cm
-
Cutting material:
-
Metal .alloy Metal .aluminum
-
Motor:
-
5.5Kw
-
Model Number:
-
BS-650G
-
After-sales Service Provided:
-
Online Support
-
Brand:
-
Customer's Brand
Recommend Products
Product Description
Features:
1. CNC automatic feeding and cutting
2. With hydraulic clamping vice
1. CNC automatic feeding and cutting
2. With hydraulic clamping vice
3. With automatic rotary saw bow
4. With Servo motor for variable saw speed
5. The maximum length of an automatic feed up to 650mm
6. Swivel beam by PLC programming
4. With Servo motor for variable saw speed
5. The maximum length of an automatic feed up to 650mm
6. Swivel beam by PLC programming
7. Shuttle vice for precision auto feeding
8. Hydraulic box vice suitable for batch cutting
9. Touch screen in swivel panel give comfortable operation
Accessories:
Standard accessories:
Blade
Hydraulic clamping vice
PLC touch screen
Auto. feeding
CE standard switch protect operator safe
8. Hydraulic box vice suitable for batch cutting
9. Touch screen in swivel panel give comfortable operation
Accessories:
Standard accessories:
Blade
Hydraulic clamping vice
PLC touch screen
Auto. feeding
CE standard switch protect operator safe
Specification
|
Model
|
|
BS-650G
|
|
|
Capacity
|
Circular @90°
|
460mm(18”)
|
|
|
|
Rectangular @90°
|
650mmx350mm
|
|
|
|
Circular @60°(Right)
|
310mm
|
|
|
|
Rectangular @60°(Right)
|
310x350mm
|
|
|
|
Circular @45°(Left & Right)
|
460mm
|
|
|
|
Rectangular @45°(Left & Right)
|
460x350mm
|
|
|
Blade speed
|
|
23-95rpm
|
|
|
Blade size
|
|
34x1.1x5220mm
|
|
|
Motor
|
|
5.5kW
|
|
|
Drive
|
|
Gear
|
|
|
Packing size
|
|
293x220x200cm
|
|
|
N.W./G.W.
|
|
2430/2730kg
|
|
