The roller crusher, also known as double roll crusher, or toothed roll crusher, is a type of crusher that uses two sets of rollers to crush materials. It is suitable for medium and fine crushing of materials with compressive strength less than 160MPa, such as limestone, calcite, quartz, marble, cobble, granite, basalt, diabase, iron ore, rock, coal, clinker, slag, refractory and chemical materials. With an adjustable discharge system, the double roll crusher can be flexibly used for both coarse and fine crushing processes in mining, cement,
construction,
energy, metallurgy,
chemical engineering
and other industries.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
30000 KG
-
Name:
-
Double roller stone crusher machine
-
Model:
-
2PG1500*800
-
Power:
-
110kw*2
-
Discharge size:
-
3-45mm adjustable
-
Raw material:
-
limestone,quartz,granite,basalt,marble,cobble,iron ore,calcite,slag
-
Crusher type:
-
smooth roll crusher, toothed roller crusher
-
Applicaton:
-
mining, sand making, construction, cement plant
-
Advantage:
-
No wear parts, no screen bottom, no blocking problem
-
Function:
-
Dry and wet material crushing
-
Keyword:
-
mining roll crusher sand making machine for sale
Quick Details
-
Application:
-
stone crushing, sand making, mining
-
Capacity(t/h):
-
2-140t/h
-
Place of Origin:
-
China
-
Weight:
-
30000 KG
-
Name:
-
Double roller stone crusher machine
-
Model:
-
2PG1500*800
-
Power:
-
110kw*2
-
Discharge size:
-
3-45mm adjustable
-
Raw material:
-
limestone,quartz,granite,basalt,marble,cobble,iron ore,calcite,slag
-
Crusher type:
-
smooth roll crusher, toothed roller crusher
-
Applicaton:
-
mining, sand making, construction, cement plant
-
Advantage:
-
No wear parts, no screen bottom, no blocking problem
-
Function:
-
Dry and wet material crushing
-
Keyword:
-
mining roll crusher sand making machine for sale
Products Description
Roller Crusher
Product Parameter
|
Model
|
Feeding size
(mm)
|
Output size
(mm)
|
Capacity
(t/h)
|
Motor power
(kw)
|
Weight
(t)
|
Dimensions
(mm)
|
|
2PG400*250
|
<35
|
≦2-8
|
2-10
|
5.5×2
|
1.5
|
2300*950*650
|
|
2PG400*400
|
<35
|
≦2-8
|
5-12
|
7.5*2
|
2.3
|
2360*1000*810
|
|
2PG610*400
|
<65
|
≦2-20
|
5-20
|
15*2
|
4
|
3100*1250*1100
|
|
2PG750*500
|
<75
|
≦2-25
|
10-40
|
18.5*2
|
5.5
|
3850*1500*1350
|
|
2PG800*600
|
<80
|
≦2-25
|
20-50
|
22*2
|
6.5
|
2400*2900*1350
|
|
2PG800*800
|
<100
|
≦3-30
|
25-60
|
30*2
|
7.5
|
2400*3100*1350
|
|
2PG1000*800
|
<100
|
≦3-30
|
30-60
|
30*2
|
9.5
|
2700*3100*1450
|
|
2PG1200*800
|
<120
|
≦3-35
|
40-80
|
45*2
|
14.5
|
3150*3600*1700
|
|
2PG1200*1000
|
<120
|
≦3-35
|
50-90
|
55*2
|
16.5
|
3150*3800*1700
|
|
2PG1500*800
|
<130
|
≦3-45
|
60-100
|
110*2
|
30
|
3800*4000*2100
|
|
2PG1500*1000
|
<150
|
≦3-50
|
70-120
|
132*2
|
32
|
3800*4200*2100
|
|
2PG1600*800
|
<150
|
≦3-50
|
80-140
|
160*2
|
38
|
3850*4100*2200
|
Product Structure

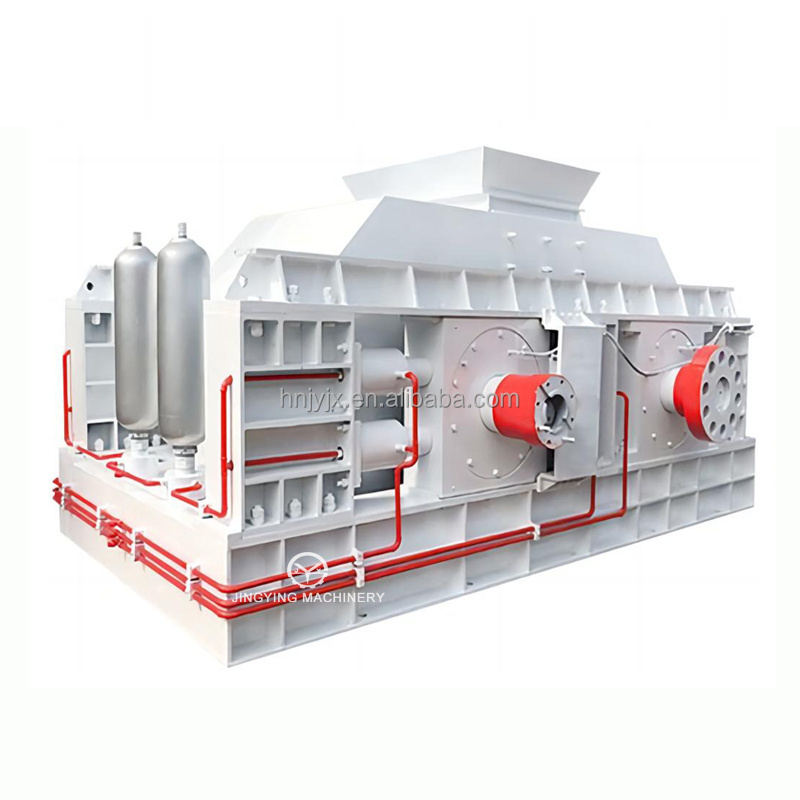

The roll crusher is mainly composed of fixed roller, movable roller, machine frame, shield, protecting guard.
Product Features
1. High reduction rate and large capacity
2. Adjustable discharge size 1-5 mm
3. Low over-grinding rate and uniform particles
4. Long service life of rollers
5. Environmental and energy-saving
2. Adjustable discharge size 1-5 mm
3. Low over-grinding rate and uniform particles
4. Long service life of rollers
5. Environmental and energy-saving
Production Line
Customer Site
