Weight reduction 30%
Can be lifted by a single person easily
Saving effrt and time
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WP22BP, WP25BP, WP32BP, WP36BP
-
Weight (T):
-
30
-
Keyword:
-
Punching Machine
-
Power supply:
-
220V / 110V
-
OEM:
-
Avaliable
-
Color:
-
avaliable
-
Punching material:
-
steel / Iron
-
Advantage:
-
High Efficiceny
-
After Warranty Service:
-
Video Technical Support
-
Brand:
-
Welping
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Welping
-
Voltage:
-
220V/110V
-
Model Number:
-
WP22BP, WP25BP, WP32BP, WP36BP
-
Weight (T):
-
30
-
Keyword:
-
Punching Machine
-
Power supply:
-
220V / 110V
-
OEM:
-
Avaliable
-
Color:
-
avaliable
-
Punching material:
-
steel / Iron
-
Advantage:
-
High Efficiceny
-
After Warranty Service:
-
Video Technical Support
-
Brand:
-
Welping
Product Overview

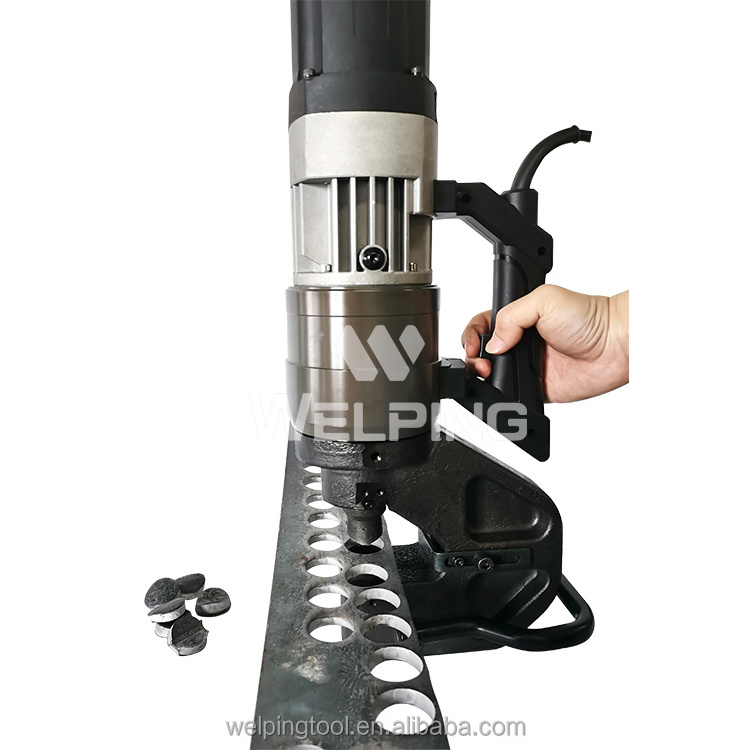

Portable hydraulic punching machine
Hydraulic punching machine with power motor. punching 3-12mm thickness steel in 6 seconds, Light weight
allowed be lifted by a single person, saving effort and time. Suitable to Punch Angle steel, Channel steel, Steel plate, Iron plate
* Powerful motor ensure quick operation, save time and energy
* Imported sealing ring.
* Stuitable for high-altitude operation, can realize multi-angle drilling
allowed be lifted by a single person, saving effort and time. Suitable to Punch Angle steel, Channel steel, Steel plate, Iron plate
* Imported sealing ring.
* Stuitable for high-altitude operation, can realize multi-angle drilling
Productiion Specifications
|
Model No
|
WP22BP
|
WP25BP
|
WP32BP
|
WP36BP
|
|||
|
Power supply
|
220V (110V)
|
|
|
|
|||
|
No-load power
|
1100W
|
1800W
|
1800W
|
1800W
|
|||
|
Punching speed
|
2-3s
|
3-4s
|
4-5s
|
4-5s
|
|||
|
Punching diameter(max)
|
22.5mm
|
25.5mm
|
30.5mm
|
36.5mm
|
|||
|
Punching diameter(min)
|
8mm
|
11mm
|
17mm
|
17mm
|
|||
|
Punching thickness(max)
|
8mm
|
10mm
|
12mm
|
12mm
|
|||
|
Deep throat
|
40mm
|
60mm
|
60mm
|
60mm
|
|||
|
Standard mold
|
9/11/13/17/22.5mm
|
11/13/17/21.5/22.5mm
|
17/20.5/26/28/30.5mm
|
18/22/26/32/36.5mm
|
|||
|
Punching material
|
Angle steel, Channel steel, Steel plate, Iron plate
|
|
|
|
|||
|
Total weight
|
18.1KG
|
32.5KG
|
38.6KG
|
38.6KG
|
|||
Product Features
fast speed, quick return
Punching thickness breakthrough 12mm
Suitable for high-altitude operation
can realize multi-angle drilling
Product packaging
|
Model No.
|
Length(cm)
|
Width(cm)
|
Height(cm)
|
N.W(kg)
|
G.W.(kg)
|
|
punching machine
|
70.5
|
20
|
39.5
|
26
|
33
|
