Quick Details
-
Model Number:
-
AM8328
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
home audio soud control host
-
Use:
-
home
-
Certificate:
-
CE
-
Keyword:
-
Digital home amplifier
-
Application:
-
Home
-
Material:
-
Metal
-
Color:
-
White
-
Function:
-
Music Amplifier
-
Size:
-
430*345*.32MM
Quick Details
-
Type:
-
Home Amplifier
-
Channels:
-
8 (7.1)
-
Brand Name:
-
DSPPA
-
Model Number:
-
AM8328
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
home audio soud control host
-
Use:
-
home
-
Certificate:
-
CE
-
Keyword:
-
Digital home amplifier
-
Application:
-
Home
-
Material:
-
Metal
-
Color:
-
White
-
Function:
-
Music Amplifier
-
Size:
-
430*345*.32MM
Extra Discount?

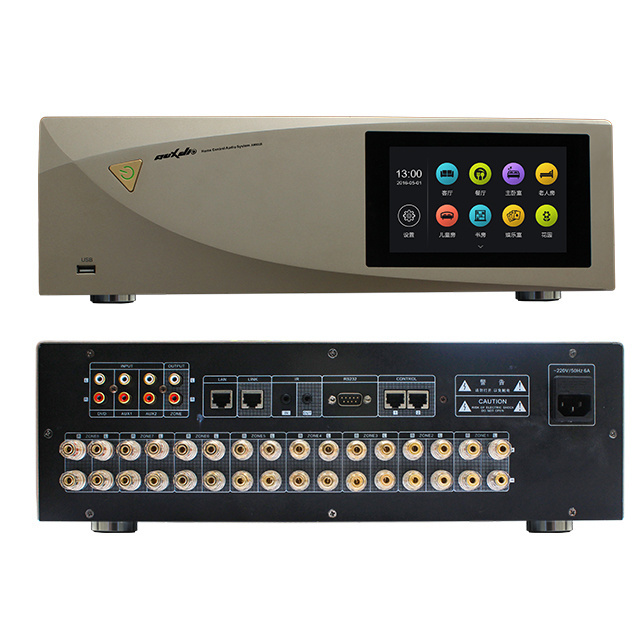

Details Images
Feature
● 8 zones independent output, can extend to 72 zones at most
● High-power output for living-room or garden with rated power 2x100W
● Both programs and partitions can be renamed
● 16-million pixel 7.0” TFT true-color capacitance display and touch screen
● Rich audio sources: 8 internet modules (supports internet music and internet radio),
● built-in MP3 player, memory card, 3 audio source inputs
● High-power output for living-room or garden with rated power 2x100W
● Both programs and partitions can be renamed
● 16-million pixel 7.0” TFT true-color capacitance display and touch screen
● Rich audio sources: 8 internet modules (supports internet music and internet radio),
● built-in MP3 player, memory card, 3 audio source inputs
Product Paramenters
|
Item
|
|
Indicator
|
|
|
Quantity of zone
|
|
Eight zone
|
|
|
Audio indicator
|
Line input sensitivity
|
520mV (±50mV)
|
|
|
|
Line input resistance
|
>10kΩ
|
|
|
|
Rated output power
|
Zone1, 2×100W/8Ω
|
|
|
|
|
Zone2-8, 14×30W/8Ω
|
|
|
|
Frequency response
|
20Hz-20kHz (±0.5dB)
|
|
|
|
Total harmonic distortion
|
<0.3% (f=1kHz, 1/3 of rated output power)
|
|
|
|
Signal-noise ratio
|
> 81dB
|
|
|
|
Auxiliary audio output
|
Stereo output: 520mV (±50mV)
|
|
|
Power amplifier output protection
|
|
Output short circuit, overloading, direct current protection
|
|
|
Power supply
|
|
AC220-240V/50-60Hz
|
|
|
Whole power
|
|
600W
|
|
|
Power protection
|
|
AC220V/F6A
|
|
|
Dimension of outer packing (mm)
|
|
(L×W×H) 540×540×230
|
|
|
Dimension (mm)
|
|
(L×W×H) 430×345×132
|
|
|
Gross weight
|
|
19kg
|
|
|
Net weight
|
|
14.6kg
|
|
