Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
JSR
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2hp
-
Cable Length:
-
1
-
Outlet Size:
-
6 ~20mm
-
Power:
-
1.5kw
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Plunger, Check valve, seal, etc
-
Sealing:
-
Combined seal
-
Casing material:
-
Stainless steel
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Packing:
-
Plywood case
-
Shipment:
-
By sea, air, express, etc
Quick Details
-
Application:
-
Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
110v ~ 480v, 110V, 220V, 240V, 380V, 400V, 415V, 440V, etc are all available
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
JSR
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2hp
-
Cable Length:
-
1
-
Outlet Size:
-
6 ~20mm
-
Power:
-
1.5kw
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Plunger, Check valve, seal, etc
-
Sealing:
-
Combined seal
-
Casing material:
-
Stainless steel
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Packing:
-
Plywood case
-
Shipment:
-
By sea, air, express, etc

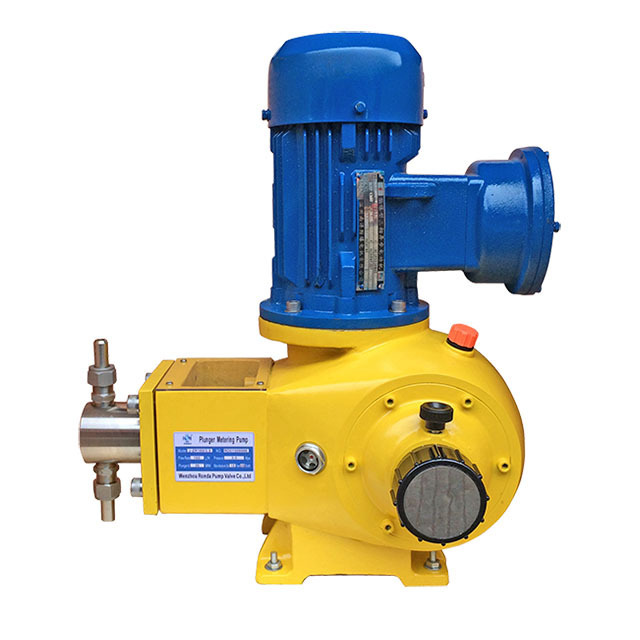

JSR high pressure piston pump chemical dosing pump metering ram pump
Perfect appearance:
JSR
Introduction:
1. JSR high pressure piston pump chemical dosing pump metering ram pump with wide pressure limit is able to work as high pressure pump as well.
2. The flow rate of pump could be changed by adjusting the control hand wheel.
3. Simple structure and easy to repair.
4. Small plunger diameter, usually between 8~75mm(3/10~3inch ).
5. The chemical dosing pump is widely used for detergent, flocculant, chlorine, sewage treatment agent, etc in chemical industry, petroleum, all departments.
Product details:
| Working Principle: | Plunger, metering |
| Main applications: | Chemical, water, oil |
| Max.permissible fluid temperature: | 90°C(194°F) |
| Casing parts material: | SS304, SS316 |
| Maximum frequency: | 144SPM(50hz) / 173SPM(60hz) |
| Maximum drive rating: | 1.5KW(2HP) |
| Maximum caliber: | DN20 |
| Maximum discharge-side pressure: | 50MPa(500bar) |
| Flow rate range: | 6.5-990L/H(50hz) / 7.8-1188L/H(60hz) |
| Maximum plunger diameter: | 70mm |
Performance data:
Pictures:
Metering ram pump:
