Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
Customized
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Fuel Truck
-
Material:
-
Q345R/Q370R Carbon Steel
-
Color:
-
Customer's Request
-
Volume available:
-
200m3 Lpg Storage Tank
-
MOQ:
-
1 Set
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2,3,4,5,6
-
Gross Vehicle Weight:
-
16000
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Field installation, commissioning and training, Online support, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
Customized
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Fuel Truck
-
Material:
-
Q345R/Q370R Carbon Steel
-
Color:
-
Customer's Request
-
Volume available:
-
200m3 Lpg Storage Tank
-
MOQ:
-
1 Set

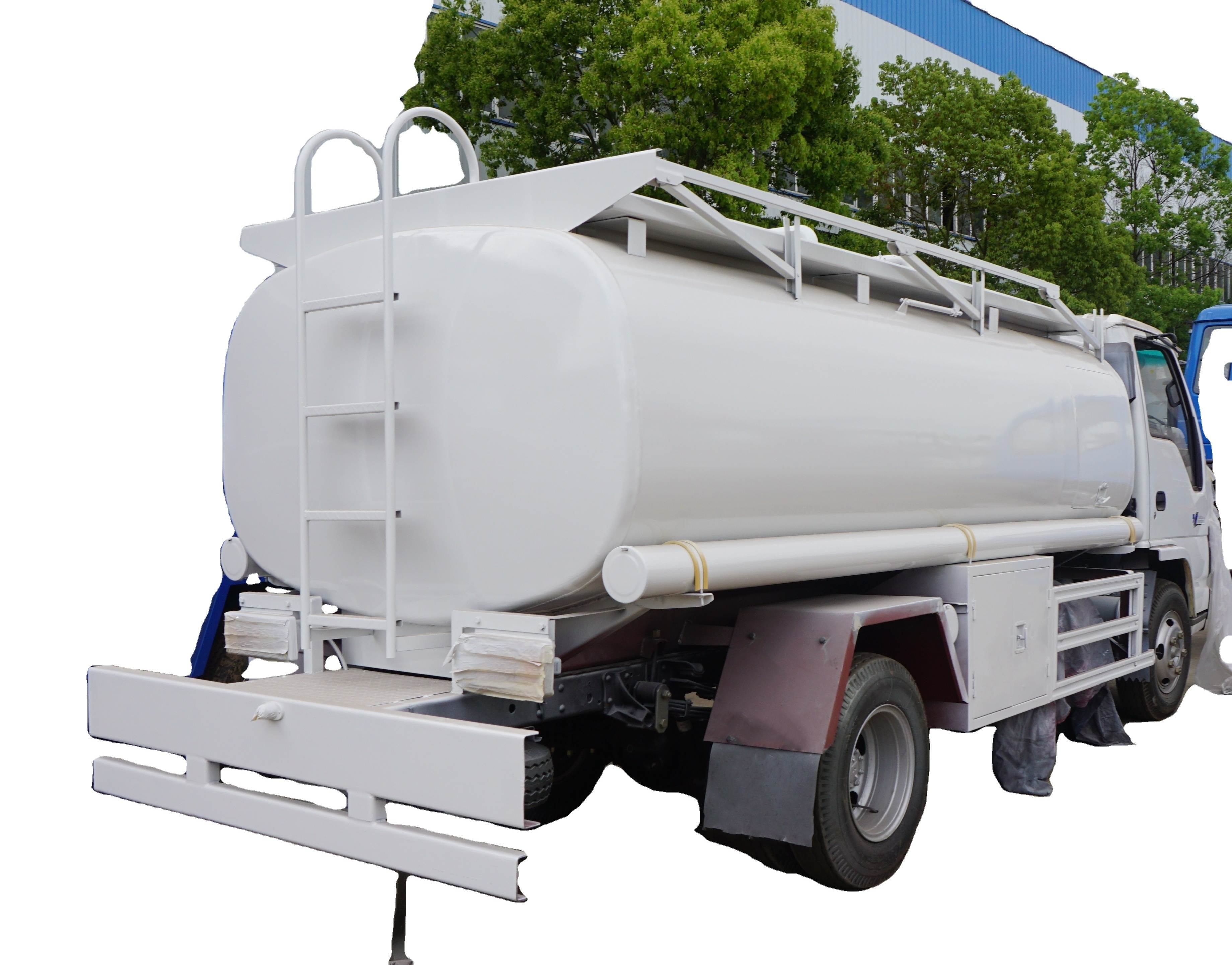

lSUZU First Two After Four Mobile Tank Trucks Small Oil Delivery Vehicles Mobile Small Tank Trucks
lSUZU First Two After Four Mobile Tank Trucks Small Oil Delivery Vehicles Mobile Small Tank Trucks
The main Brand Partner : DONGFENG, SINO HOWO , BEIBEN, FAW, FOTON, FORLAND, HYUNDAIH, HINO,IVECO,JAC,JMC,SHACMAN,HONYAN,GENLYON
Driving Type : 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 6 wheels,10 wheels , 12 wheels , 18 wheels
Capacity : 1000L, 3000L, 4000L, 6000L, 8000L, 10000L, 12000L, 15000L, 18000L, 20000L
Steering Wheel : Left Hand Drive and Right Hand Drive
Our factory is a professional LPG tank manufacturer in China, our
products fully passed ISO9001-2000 international quality system and 3C
authentication.
We have the biggest LPG trailer and LPG truck in the world:
1. We have the biggest LPG trailer in the world, the valid volume is
58.5cbm; low transport costs, more profit.
2. We have the biggest LPG truck in China, it's valid volume is
35.5cbm;
3. Our LPG storage tank ranged from 10cbm to 120cbm. both on the floor
ones and in the ground ones.
|
LPG STORAGE TANK SPECIFICATION |
|||||||
|
Capacity (CBM) |
Diameter DN |
Shell thickness (mm) |
Head thickness (mm) |
Kerb weight (kg) |
Loading Weight (kg) |
Overall dimension(mm) |
|
|
5 |
1600 |
10 |
10 |
2030 |
1995 |
3070*1620*2210 |
|
|
8 |
1600 |
10 |
10 |
2540 |
3192 |
4270*1620*2210 |
|
|
10 |
1600 |
10 |
10 |
2950 |
3990 |
5260*1620*2210 |
|
|
12 |
1800 |
10 |
12 |
3360 |
4788 |
5034*1820*2410 |
|
|
15 |
1800 |
10 |
12 |
3920 |
5985 |
6224*1820*2410 |
|
|
20 |
1800 |
10 |
12 |
4820 |
7980 |
8174*1820*2410 |
|
|
25 |
2200 |
12 |
14 |
6020 |
9975 |
7008*2224*2814 |
|
|
32 |
2400 |
14 |
14 |
7710 |
12768 |
7508*2428*3018 |
|
|
50 |
2600 |
14 |
16 |
10910 |
19950 |
9912*2628*3218 |
|
|
50 |
2700 |
14 |
16 |
10640 |
19950 |
9182*2728*3318 |
|
|
80 |
3100 |
16 |
18 |
17000 |
31920 |
11166*3132*3722 |
|
|
80 |
3200 |
18 |
18 |
18140 |
31920 |
10516*3236*3826 |
|
|
100 |
3100 |
16 |
18 |
20410 |
39900 |
13866*3132*3722 |
|
|
100 |
3200 |
18 |
18 |
21800 |
39900 |
13016*3236*3826 |
|
|
120 |
3400 |
18 |
20 |
24960 |
47880 |
13820*3436*4026 |
|
|
Design pressure |
1.77MPa |
||||||
|
Corrosion allowance( mm) |
1mm |
||||||
|
Medium density (kg/m3) |
420kg/m3 |
||||||
|
Material of tank and main pressure parts |
Q345R |
||||||
|
Carried standard |
Pressure vessels,supervision regulation on safety technology for stationary pressure vessels |
||||||
|
Safety valve of selection fitting |
Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve |
||||||
