Quick Details
-
Brand Name:
-
Karestar
-
Model Number:
-
K-H501
-
Display:
-
15 Inch large LED Display
-
Battery:
-
Build-in lithium battery can work for 5 hours
-
Scanning mode:
-
B, B|B, 4B, B|M, M, 9B, 3D
-
Application:
-
OB/GYN, Abdomen, pediatrics, urology, small organs,msk,etc
-
Probe socket:
-
2 probe sockets
-
Ports:
-
Video, 2 USB, VGA, DICOM
-
Language:
-
Support Spanish, English, French,German Portuguese, Russian, Italian
-
Feature:
-
PC windows platform
-
Image gray scale:
-
256 level gray scale
-
Maximum scanning depth:
-
250mm
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Return and Replacement
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Karestar
-
Model Number:
-
K-H501
-
Display:
-
15 Inch large LED Display
-
Battery:
-
Build-in lithium battery can work for 5 hours
-
Scanning mode:
-
B, B|B, 4B, B|M, M, 9B, 3D
-
Application:
-
OB/GYN, Abdomen, pediatrics, urology, small organs,msk,etc
-
Probe socket:
-
2 probe sockets
-
Ports:
-
Video, 2 USB, VGA, DICOM
-
Language:
-
Support Spanish, English, French,German Portuguese, Russian, Italian
-
Feature:
-
PC windows platform
-
Image gray scale:
-
256 level gray scale
-
Maximum scanning depth:
-
250mm
Product Description

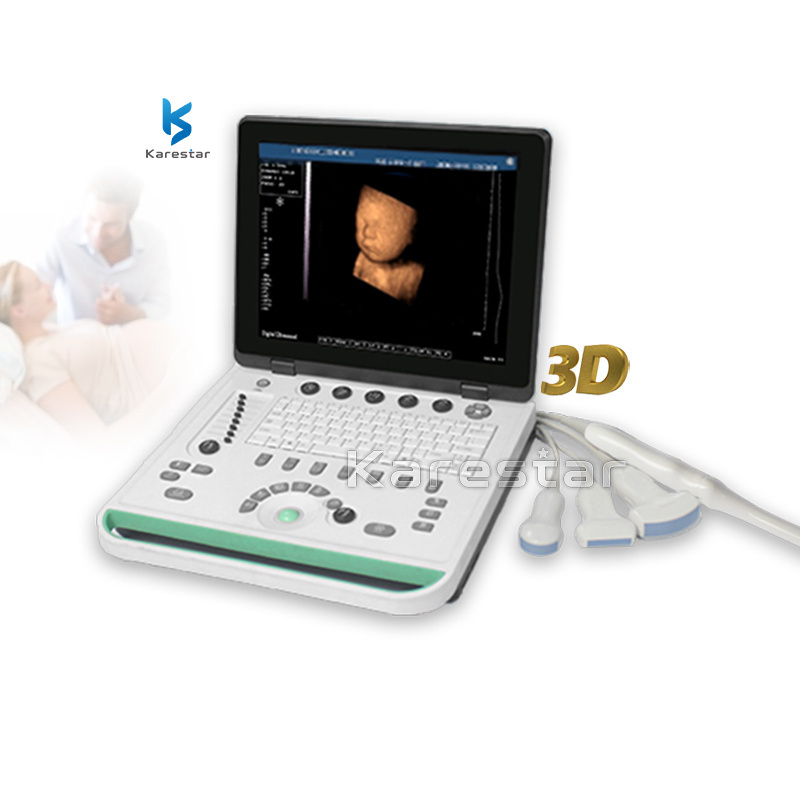

M7 Mindray Professional Portable 3D/4D Color Doppler Ultrasound Machine K-H501 ecografo mindray m5 m7 m9
Quick Details:
1.
Large
15 inches
LED display, PC windows platform
2.
Large capacity
Built-in battery
, which can be contentiously worked at least 5 hours when power off
3.
Ports:
2 Probe sockets
(switch probe easily by one button), 2 USB , Video, VGA, DICOM
4. Imagi
ng Modes:
B, B|B, 4B, B|M, M, 9B,
3D
5.
Applications:
Abdomen / Obstetrics/ Gynecology /
Musculoskeletal
/
Vascular / Pediatrics /Urology
/ Small organs and so on
6.
Simple operation interface, easy to understand, ready to use
7. Movie playback: 256 frames
8.Language：
Chinese/English/Spanish/French/Portuguese/Russian /German/ Italian etc.
|
Standard Configuration
|
|
Option Configuration
|
|
|
One host machine + 2 probe connectors
|
1 PC
|
Suitcase
|
|
|
One convex array probe:Center Frequency=3.5MHZ
|
1 PC
|
Trolley
|
|
|
power adapter
|
1PC
|
Laser printer or thermal printer
|
|
|
Li-ion battery
|
1PC
|
|
|
Scanning Image Quality
*Printer
Specification
Application
Abdomen / Obstetrics/ Gynecology /Musculoskeletal /Vascular / Pediatrics /Urology / Small organs and so on
Physical Specifications
Equipment size：362mm×340mm×60mm
Equipment weight：Less than 5kg
|
Monitor
|
15 inch color LED screen
|
|
Transducer Ports
|
2
|
|
USB Ports
|
2
|
|
Battery Capacity :
|
Removable lithium battery can work 5 hours
|
|
Movie playback
|
256 frames
, can be played back frame by frame and pause playback, pause playback can be used for image preservation and measurement
|
|
Ethernet Port
|
Video interface, two USB interface, DICOM interface, VGA interface, power interface
|
|
Supported output apparatus
|
U-Disk, Laser/ink printer, video printer, VGA
|
|
Maximum Scanning Depth
|
max. 250mm
|
|
Scanning mode
|
B, 2B, B/M, M, 4B, 9B, ZOOM, 3D
|
|
Frequency conversion
|
All probes support five-stage frequency conversion
|
|
Real-time Zoom on B mode
|
256 level gray scale
|
|
Image processing
|
Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale
adjustment, contrast, brightness, γ revision. |
|
Grey Levels
|
256
|
|
Gain range
|
0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
|
|
Measurement and calculation
|
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face. Veterinary: Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD |
|
Zoom
|
10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
|
|
Image store
|
by hardisk or USB disk, can save image and also video(avi or swf format)
|
|
3D image function
|
can get rebuilt 3D image by any probe
|
