Quick Details
-
Brand Name:
-
lingfeng
-
Model Number:
-
120*600
-
Voltage:
-
360v
-
Power:
-
8000-15000
-
Dimension(L*W*H):
-
2.0m*1.0m*1.0m
-
Weight:
-
2t
-
Features:
-
easy operation ; automatic
-
Warranty:
-
one year
-
Certification:
-
iso9001
-
business scope:
-
world wide
-
exporting country:
-
over 20 countries
-
feature:
-
efficient
-
No.hole:
-
5
-
shape of the hole:
-
circle
-
diameter of the hole:
-
76mm
-
color:
-
yellow or gray
-
use1:
-
prefab houses
-
use2:
-
civil building
-
use3:
-
tiny house
Quick Details
-
Application:
-
prefab building construction
-
Production Capacity:
-
65-70m/h
-
Place of Origin:
-
China
-
Brand Name:
-
lingfeng
-
Model Number:
-
120*600
-
Voltage:
-
360v
-
Power:
-
8000-15000
-
Dimension(L*W*H):
-
2.0m*1.0m*1.0m
-
Weight:
-
2t
-
Features:
-
easy operation ; automatic
-
Warranty:
-
one year
-
Certification:
-
iso9001
-
business scope:
-
world wide
-
exporting country:
-
over 20 countries
-
feature:
-
efficient
-
No.hole:
-
5
-
shape of the hole:
-
circle
-
diameter of the hole:
-
76mm
-
color:
-
yellow or gray
-
use1:
-
prefab houses
-
use2:
-
civil building
-
use3:
-
tiny house
The description of the Lightweight wall Slab Forming Machine:
the lightweight wall slab Forming machine is a specialized machine to poduct non-load bearing external wall slab by extrusion method, widely used for the external partition of building, such as office building, hotel and apartment. The produce with this machine is characterized with low cost, light weight and easy for assembly.
|
Model(mm) |
80X600 |
90X600 |
100X600 |
120X600 |
200X600 |
240X280 |
|
Panel width |
595±2 |
595±2 |
595±2 |
595±2 |
595±2 |
280±2 |
|
thickness(mm) |
78±1 |
88±1 |
88±1 |
118±1 |
198±1 |
238±1 |
|
No of hole including diameter (mm) |
8Xφ43 |
7Xφ58 |
7Xφ62 |
5Xφ80 |
3Xφ145 |
1Xφ160 |
|
forming speed(mm/min) |
1600 |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Main power(KW) |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
vibration power(KW) |
0.8 |
0.8 |
0.8 |
0.8 |
3 |
3 |
|
machine dimentions(mm) |
2500X950X750 |
2500X950X700 |
2500X950X750 |
2550X950X750 |
2650X1000 X850 |
2650X1000 X900 |
|
machine weight(kg) |
1010 |
1010 |
1035 |
1650 |
1680 |
1740 |

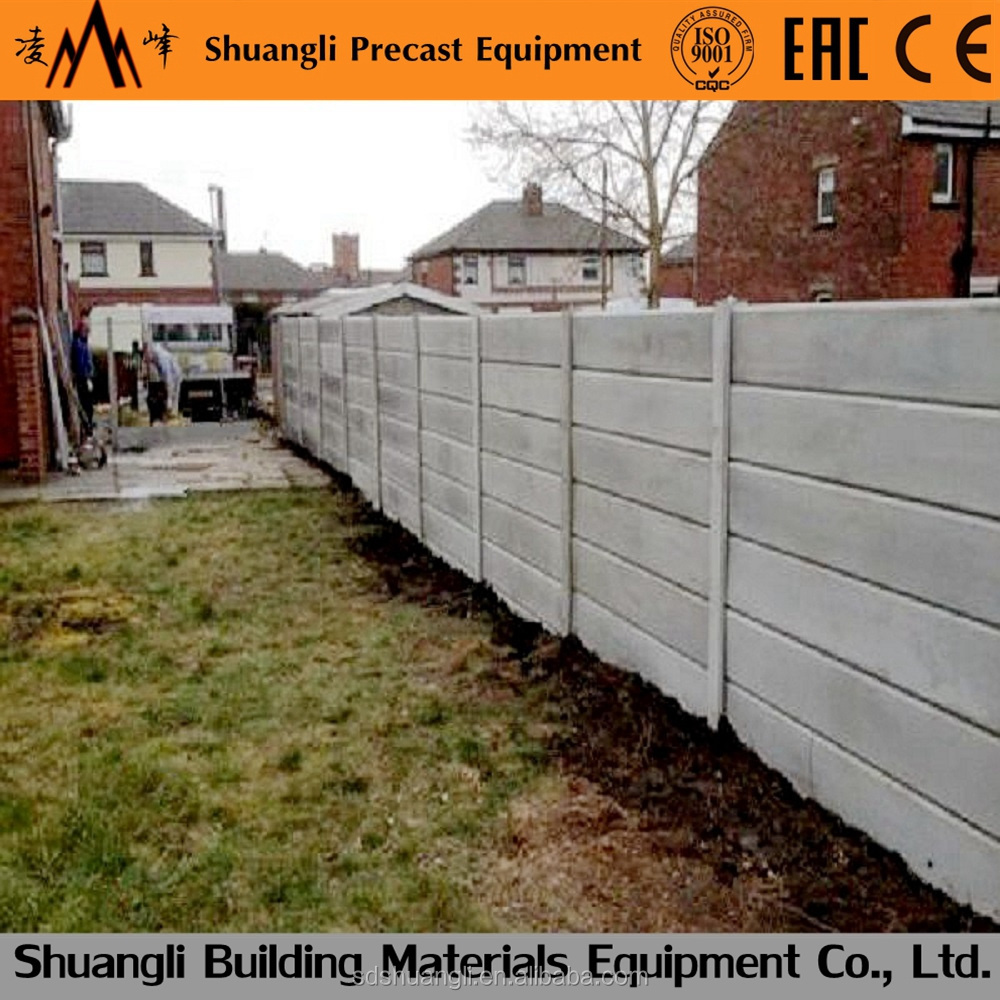

Main application of the Lightweight wall panel machinery---
These panels are extremely lightweight and easily field modified. The hollow core provides excellent strength to weight ratio.
1. Increased sound deadening qualities.
2. Improved thermal insulation.
3. Can be used in all sound reduction framework systems.
4. Little to no maintenance required.
5. Increased fire resistance.
6. Easy to install.
