Quick Details
-
Machinery Test Report:
-
Provided CE Certificate
-
Rated Power:
-
<=400W
-
Engraving Speed:
-
≤50mm/s
-
Main Axle Rotational Speed:
-
<=400W
-
Feeding Height:
-
0-300mm
-
Milling Cutter Diameter:
-
pin marker
-
Application:
-
Metal Marking
-
Dimensions:
-
0.3CBM
-
Weight (KG):
-
56
-
Marking Depth:
-
0.01-2mm
-
Working Area:
-
150mm*100mm
-
Marking Speed:
-
<=50mm/s
-
Air Pressure:
-
0.2-0.6Mpa
-
Z-Axis Lifting Range:
-
0-300 mm or Customized
-
Marking Accuracy:
-
0.01 mm
-
Pin Hardness:
-
HRC 92
-
Power Supply:
-
220V±10%, 50HZ
-
Machine Power:
-
≤400 W
-
Product name:
-
Portable Pneumatic Vin Number Marking Machine Stamping Number
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Machine Type:
-
Dot peen marking machine
-
Machinery Test Report:
-
Provided CE Certificate
-
Rated Power:
-
<=400W
-
Engraving Speed:
-
≤50mm/s
-
Main Axle Rotational Speed:
-
<=400W
-
Feeding Height:
-
0-300mm
-
Milling Cutter Diameter:
-
pin marker
-
Application:
-
Metal Marking
-
Dimensions:
-
0.3CBM
-
Weight (KG):
-
56
-
Marking Depth:
-
0.01-2mm
-
Working Area:
-
150mm*100mm
-
Marking Speed:
-
<=50mm/s
-
Air Pressure:
-
0.2-0.6Mpa
-
Z-Axis Lifting Range:
-
0-300 mm or Customized
-
Marking Accuracy:
-
0.01 mm
-
Pin Hardness:
-
HRC 92
-
Power Supply:
-
220V±10%, 50HZ
-
Machine Power:
-
≤400 W
-
Product name:
-
Portable Pneumatic Vin Number Marking Machine Stamping Number

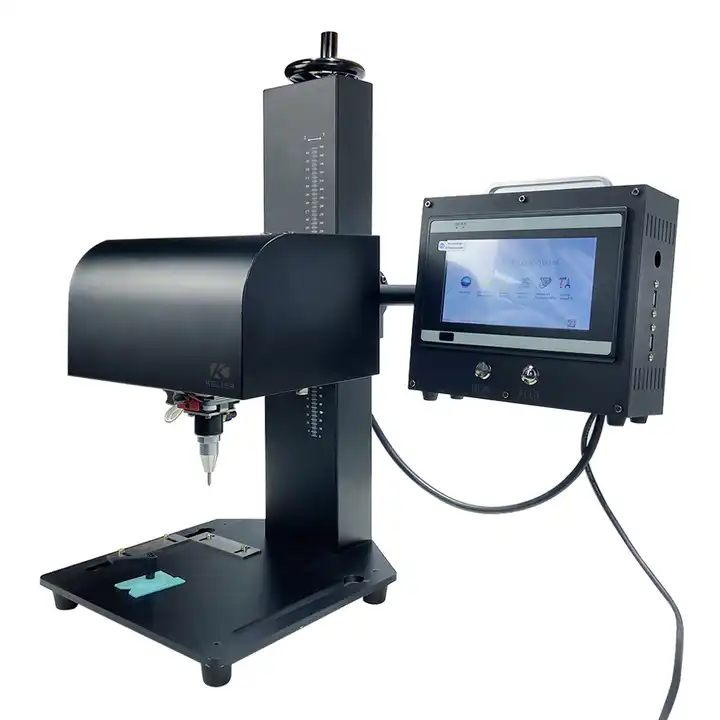

Perfect Laser Metal Engraver Desktop Aluminum Iron Letters Serial Number Code Dot Peen Marking Machine For Brass Nameplate
(Model:PEQD)
Crystal: sales013(@)perfectlaser.net; Whatsapp:+86 136 5989 3728; Skype: perfectlaser013
Suitable for permanent marking on the surface of metal and non-metallic parts, can make a variety of logos such as letters,numbers, dates, VIN codes, graphics and serial numbers.And nameplate marking machine also named permanent part marking machine, marking metal machine,aluminum marking machine,engine marking machine, dot peen marking machine for sale.
1. Quality of needles: Imported hard alloys are used for molding once by precision moulds. Not only does it make the operation more efficient, it also makes the printed artifacts more perfect.
2.The processed letters, words, or graphics can be saved in a U disk, then input to the machine.
3. The machine use the high-quality imported materials: such as Japan's positioning switch, so that the machine's high-precision and stable performance are guaranteed.
4.The unique identification hull system is configured to greatly reduce the noise generated by the machine during operation.
5.The machine is maintenance-free and has a low overall operating cost. The service life of the machine is up to 10 years.
6.It supports fonts such as MG fonts, SHX fonts in Auto CAD, CHR in Borland, TTF in Windows, and more.
7.The machine software is with powerful edit function, can layout any kind of characters and graphics, and is compatible with AutoCAD software.
|
Item
|
VIN number marking machine
|
|
Model
|
PEQD-100E
|
|
Marking Area
|
150x100mm, 200x100mm, 300x200mm, 400x300mm
|
|
Marking Depth
|
0.01~2mm
|
|
Marking Speed
|
≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
|
|
Air Pressure
|
0.2-0.6Mpa
|
|
Z Axis Lifting Range
|
0-300 mm or customized
|
|
Marking Accuracy
|
0.01mm
|
|
Pin Hardness
|
HRC 92
|
|
Power Supply
|
220V±10%, 50HZ
|
|
Air Pressure
|
0.2-0.6 Mpa
|
|
Machine Power
|
≤400 W
|
|
Working Environment
|
-5~40 °C
|
|
Whole Machine Weight
|
56KGS
|
|
Measurement
|
0.21CBM
|
