Quick Details
-
Voltage:
-
yangzhou china
-
Dimension(L*W*H):
-
2615*1690*4075
-
Motor Power (kW):
-
18.5*4
-
Model Number:
-
SYA-200
-
Weight (T):
-
23
-
Product name:
-
stamping machine
-
Type:
-
Mechanical Eccentric
-
Color:
-
Optional Color
-
tonnage:
-
200
-
Keyword:
-
STAMPING PUNCH PRESS
-
THROAT DEPTH:
-
CUSTOMIZED
-
area:
-
yangzhou,china
-
slide adjust device:
-
electric driving
-
Nominal Force (kN):
-
2000 kN
-
Certification:
-
CE,ISO9001
Quick Details
-
Slide Stroke (mm):
-
100,200
-
Place of Origin:
-
yangzhou china
-
Brand Name:
-
CPCP
-
Voltage:
-
yangzhou china
-
Dimension(L*W*H):
-
2615*1690*4075
-
Motor Power (kW):
-
18.5*4
-
Model Number:
-
SYA-200
-
Weight (T):
-
23
-
Product name:
-
stamping machine
-
Type:
-
Mechanical Eccentric
-
Color:
-
Optional Color
-
tonnage:
-
200
-
Keyword:
-
STAMPING PUNCH PRESS
-
THROAT DEPTH:
-
CUSTOMIZED
-
area:
-
yangzhou,china
-
slide adjust device:
-
electric driving
-
Nominal Force (kN):
-
2000 kN
-
Certification:
-
CE,ISO9001

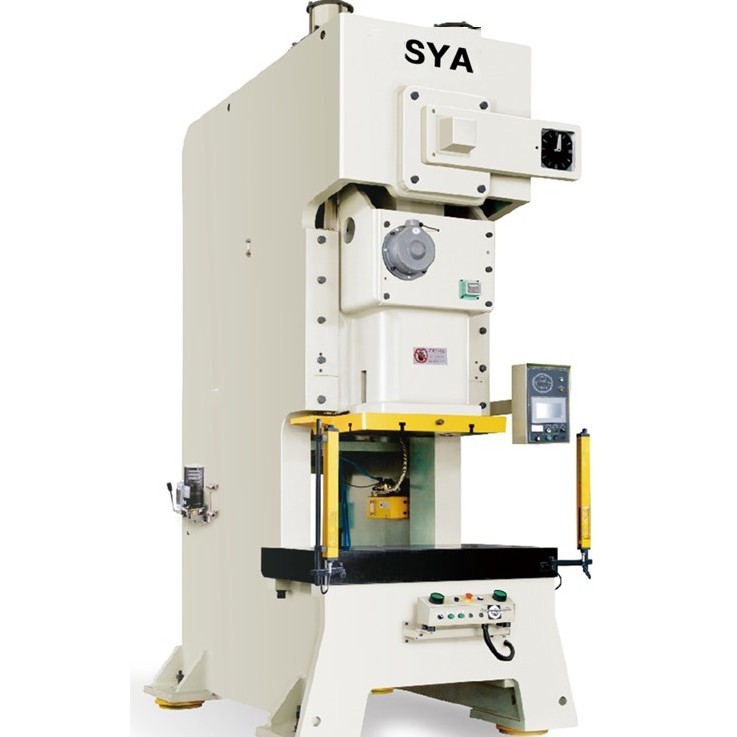

SYA
OPEN SINGLE POINT PRECISION PRESS
2.In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balance.
3.The precision of mold adjusting up to o 1 mm, safety, reliable and convenient.
4.Crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
5.Reasonable structural design, is convenient for automatic production and line production.
6.Used reliable high intensity clutch/brake and twin electromagnetic valve, overloading protector can guarantee safe production all-around.
| Specification | SYA-200 OPEN SINGLE POINT PRECISION PRESS | ||
| Model | V | H | |
| Capacity | Ton | 200 | |
| Rate tonnage point | mm | 6 | 3 |
| Stroke | mm | 200 | 100 |
| Speed changing | s.p.m | 20-50 | 50-70 |
| Stable speed | s.p.m | 35 | |
| Die height | mm | 460 | 510 |
| Slide adjustment | mm | 110 | |
| Slide area | mm | 1130*630*90 | |
| Bolster area | mm | 1400*820*160 | |
| Shank hole | mm | Ø65 | |
| Main motor | kw.p | 18.5*4 | |
| Slide adjust device | HP | electric driving | |
| Air pressure | kg/cm² | 6 | |
| Presses precision | GB/JIS 1 class | ||
| Presses dimension | mm | 2615*1690*4075 | |
| Presses Weight | Ton | 23 | |
| Die cushion capacity | Ton | 14 | |
| Die Cushion Stroke | mm | 100 | |
| Die cushion effctive area | mm² | 710*480 | |
Yangzhou Haili Precision Machinery Manufacturing Co., Ltd. Was founded in 2003.
The company is a national high and new technology enterprise, the forging press machinery association director enterprise, the company has more than 300 employees, three production bases, and a love of forging industry, in the industry for many years of senior professional technical personnel and management team. Over the years, For domestic and foreign automobile, home appliances, electrical appliances, military and many other enterprises, to provide advanced, cost-effective stamping molding solutions.
