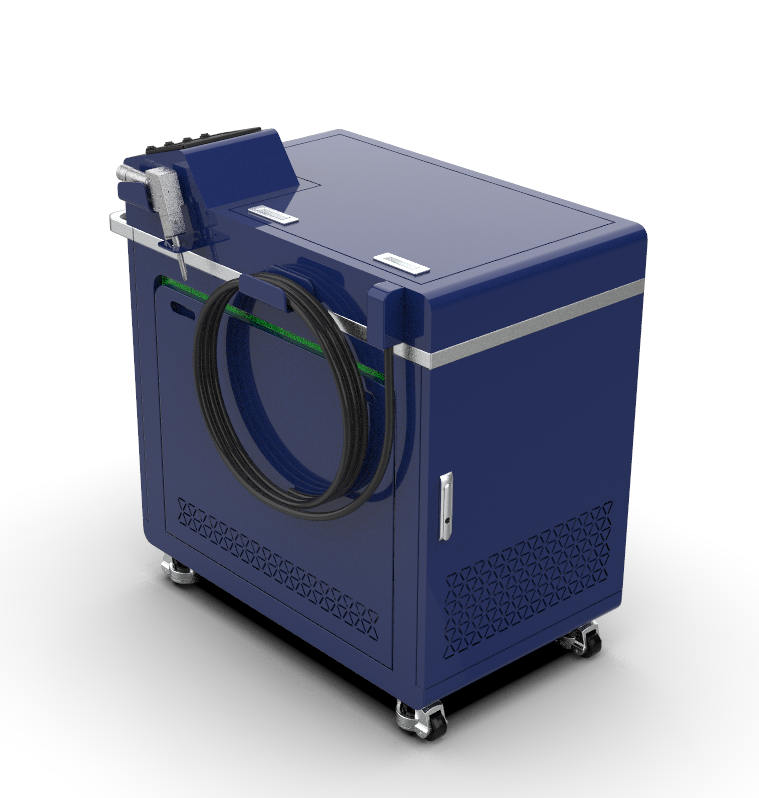

2023 hot sale! 1000W 1500W 2000W Laser Welding Machine Soldering Machine Handheld Wobble Head Laser Welder

2023 hot sale! 1000W 1500W 2000W Laser Welding Machine Soldering Machine Handheld Wobble Head Laser Welder

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4750

≥3 Pieces

US $3800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LonDio

Wavelength:: 1080nm

Dimensions:: 90x80x90cm

Weight (KG):: 300 KG

Marketing Type:: New Product 2023

Product name:: Welding Machine

Application:: Metal Products

Laser Power:: 1000W 2000W 1500w (optional)

Function:: Metal Part Laser Welding

Keywords:: Fiber Cleaning Welding Cutting Machine

Feature:: Quick Speed High Accuracy

Advantage:: High Eiffiency

Laser source:: MAX Laser Source

Cooling method:: Water Cooling System

Voltage:: 220V/380V

Quick Details

Max. Output Power:: 3000w

Use:: metal welding

Laser Source Brand:: MAX

Place of Origin:: Shandong, China

Brand Name:: LonDio

Wavelength:: 1080nm

Dimensions:: 90x80x90cm

Weight (KG):: 300 KG

Marketing Type:: New Product 2023

Product name:: Welding Machine

Application:: Metal Products

Laser Power:: 1000W 2000W 1500w (optional)

Function:: Metal Part Laser Welding

Keywords:: Fiber Cleaning Welding Cutting Machine

Feature:: Quick Speed High Accuracy

Advantage:: High Eiffiency

Laser source:: MAX Laser Source

Cooling method:: Water Cooling System

Voltage:: 220V/380V

Product Description

LD series 3-in-1 machine adopts advanced fiber laser technology and independent research and development system. The working mode can be switched freely according to different application scenarios to realize the functions of welding, cutting and cleaning.

Why choose a laser welding machine

1. Realize spot welding, butt welding and precision welding of thin-walled materials and precision parts.
2. High laser power, high weld depth ratio, small heat affected area, small deformation.
3. High welding speed, 3-10 times faster that of traditional argon arc welding and plasma welding.
4. The welded seam is smooth and beautiful, without pores, and the toughness of the welded thick material is at least equal to
that of the parent material.
5. Compared with the traditional welding machine, it also has the function of cutting and cleaning.
6. Safety sensor function, which emits a laser after touching the metal and automatically locks the light when it is removed;
7. The spiral jitter function, the width of the weld can be adjusted, and the welding ability is significantly improved.

Specification

NO.	Specification	Data
1	Name	Fiber laser welding machine
2	Model	LDW-1kw/1.5kw/2kw
3	Fiber laser power	1000w/1500w/2000w
4	Laser wavelength	1070nm±5
5	Fiber core diameter	50μm
6	Cable length	10m (standard)
7	Various welding process	2
8	Positioning and Observing system	Red light strong reflection lens
9	Welding speed	0-120mm/s
10	Cooling mode	Dual temperature control system
11	Temperature range	10-40℃
12	Humidity range	＜70%RH
13	Welding gap	≤0.5mm
14	Thickness recommend	Upto 8mm
15	Environment	Flat, vibration and shock free
16	Power	380V±10% AC 50/60Hz
17	Spare parts	Protective lens, copper nozzles

Machine Parts

Product advantages:

Fiber laser welding machine provides a variety of solutions for different application needs of users. Its operation is simple and flexible, the welding speed is fast, the welding is firm and beautiful, the cutting is more flexible, the cleaning efficiency is high, it is safer and more environmentally friendly, and its characteristics of high reliability, high flexibility and strong stability are widely used in the industrial field.

Warranty:

One years Warranty for whole machine. No human reason. Protected mirrors, nozzles etc excluded.
Lifelong maintenance.

Warranty date begins after machine delivery date. Within the period, we offered free after-sales services in certain conditions.
Out of warranty date, we offered charged services: labor cost and cost of spare parts.
For working conditions of the machine, we will keep contact with customers by checking on site or phone calls regularly.

Sample Show

Application:

This equipment can be widely used in advertising, kitchenware, kitchen and bathroom, home appliance industry, furniture industry,stainless steel doors and windows, medical equipment, shelves, machine cabinets and mold repair and other industries.Mainly used for welding metal: Carbon steel, stainless steel, brass, 1-3 series aluminum alloy, 4-7 series aluminum alloy, red copper.
