Quick Details
-
Print Dimension:
-
Width 210mm
-
Place of Origin:
-
China
-
Dimensions(L*W*H):
-
1660(L)x615(W)x1194(H)mm
-
Weight:
-
270 KG
-
Ink Type:
-
Original ink cartridges
-
Max Printing width:
-
210mm
-
Min. Printing width:
-
100mm
-
Printing speed:
-
10-700mm/s
-
Max. unwinding roll diameter:
-
500mm
-
Max. laminating roll diameter:
-
300mm
-
Max rewinding Diameter:
-
300mm
-
Max. matrix removing roll diameter:
-
300mm
-
Registering precision:
-
±0.02mm
-
Product name:
-
Digital Label Printing Laminating Machine Rotary Die Cutting Machine
-
Model:
-
ZM2004
Quick Details
-
Plate Type:
-
Digital printing
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V 3P
-
Print Dimension:
-
Width 210mm
-
Place of Origin:
-
China
-
Dimensions(L*W*H):
-
1660(L)x615(W)x1194(H)mm
-
Weight:
-
270 KG
-
Ink Type:
-
Original ink cartridges
-
Max Printing width:
-
210mm
-
Min. Printing width:
-
100mm
-
Printing speed:
-
10-700mm/s
-
Max. unwinding roll diameter:
-
500mm
-
Max. laminating roll diameter:
-
300mm
-
Max rewinding Diameter:
-
300mm
-
Max. matrix removing roll diameter:
-
300mm
-
Registering precision:
-
±0.02mm
-
Product name:
-
Digital Label Printing Laminating Machine Rotary Die Cutting Machine
-
Model:
-
ZM2004
Product Description

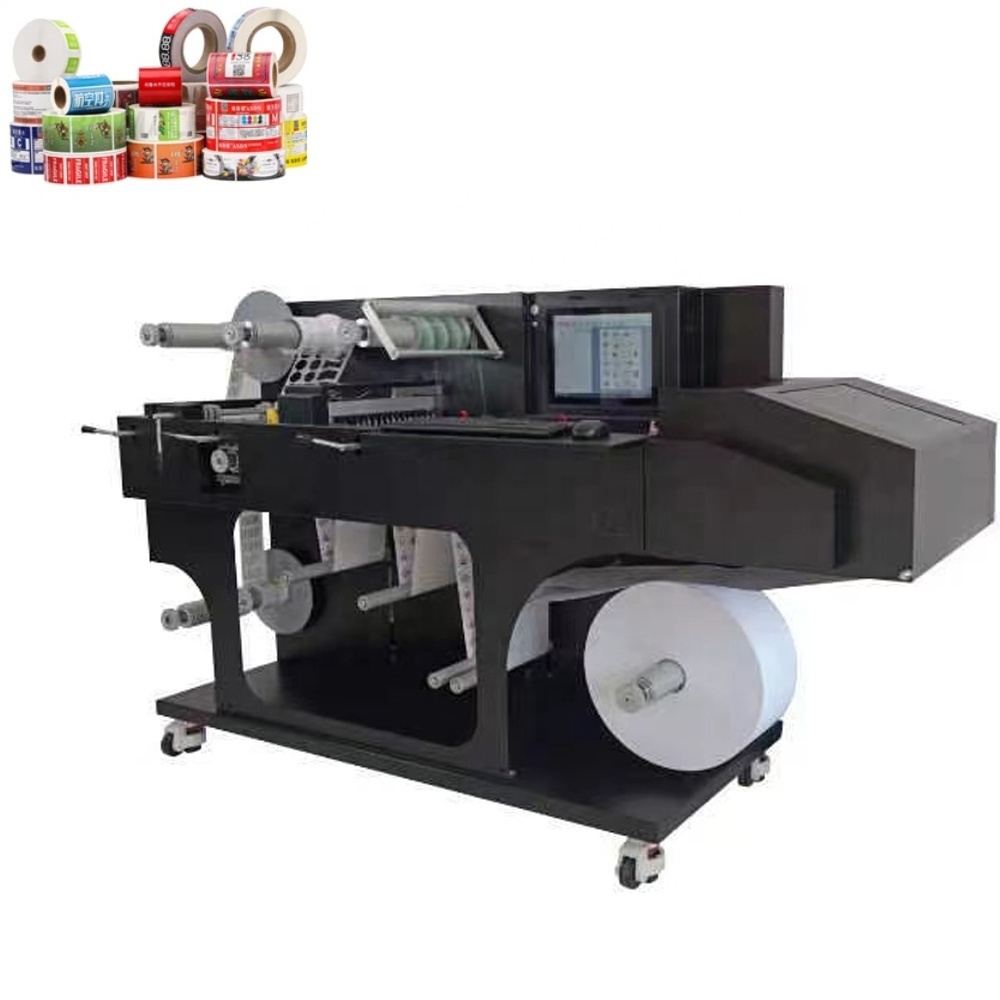

Digital Adhesive Roll Paper Label Printing Sticker Slitting Rewinding Die Cutting Film Laminating Machine for Making Labels
All-in-one Label machine functions includes: Label printing + Laminating + Die cutting (Half/full-cut)+ Matrix removing + Slitting+ Dual rewinding
|
Model
|
ST-6530c
|
|
Functions
|
Printing/laminating/die cutting/slitting/finished label rewinding/waste rewinding
|
|
Typical roll inceed&exceed speed
|
About 1m/min
|
|
Contour cutting speed
|
700mm/s (Depend on graphic)
|
|
Contour cutting force
|
0-600g
|
|
Maximum character cutting size
|
About 5mm²（Vary from contour patterns and medias)
|
|
Maximum sheet size
|
400mm
|
|
Minimum infeed roller width
|
100mm
|
|
Maximum infeed roller width
|
210mm
|
|
Maximum diameter for infeed roller
|
500mm
|
|
Maximum diameter for laminate roller
|
300mm
|
|
Maximum diameter for exfeed roller
|
300mm
|
|
Maximum diameter for rewinder roller
|
300mm
|
|
Mechanical resolution
|
0.02mm
|
|
Dimension
|
2310*827*1443mm
|
|
Weight
|
456kg
|
|
Connectivity
|
USB and network cable
|
|
Power
|
100-120V, 200V-240V,50/60HZ, 410W
|
Recommend Products
Contact us
Packaging & Shipping
PACKAGING
|
Packaging Details
|
|
Stong wooden box package
|
|
|
Port
|
|
The main ports in China, depends customers choice
|
|
|
Lead Time
|
1 pc
|
35 days
|
|
|
|
>1 pcs
|
To be negotiated
|
|
SHIPPING
1.By air, sea or combined transportation.
2.Express via FEDEX, TNT, UPS, DHL, EMS(AS your request)
3.Tracking Number will offer you immediately after delivery
3.Tracking Number will offer you immediately after delivery
4.Shipping cost depends on the shipping method, product quantity,weight, carton size and your area.
