Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tengjun
-
Model Number:
-
TJ-000835
-
Materials:
-
quartz glass
-
Density:
-
2.2g/cm3
-
Purity:
-
99.99%
-
Strain point:
-
1120℃
-
Annealing point:
-
1210℃
-
Softening point:
-
1680℃
Quick Details
-
Type:
-
Translucent Quartz Plate
-
Application:
-
semiconductor, lighting,
-
Thickness:
-
0,5-100
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tengjun
-
Model Number:
-
TJ-000835
-
Materials:
-
quartz glass
-
Density:
-
2.2g/cm3
-
Purity:
-
99.99%
-
Strain point:
-
1120℃
-
Annealing point:
-
1210℃
-
Softening point:
-
1680℃

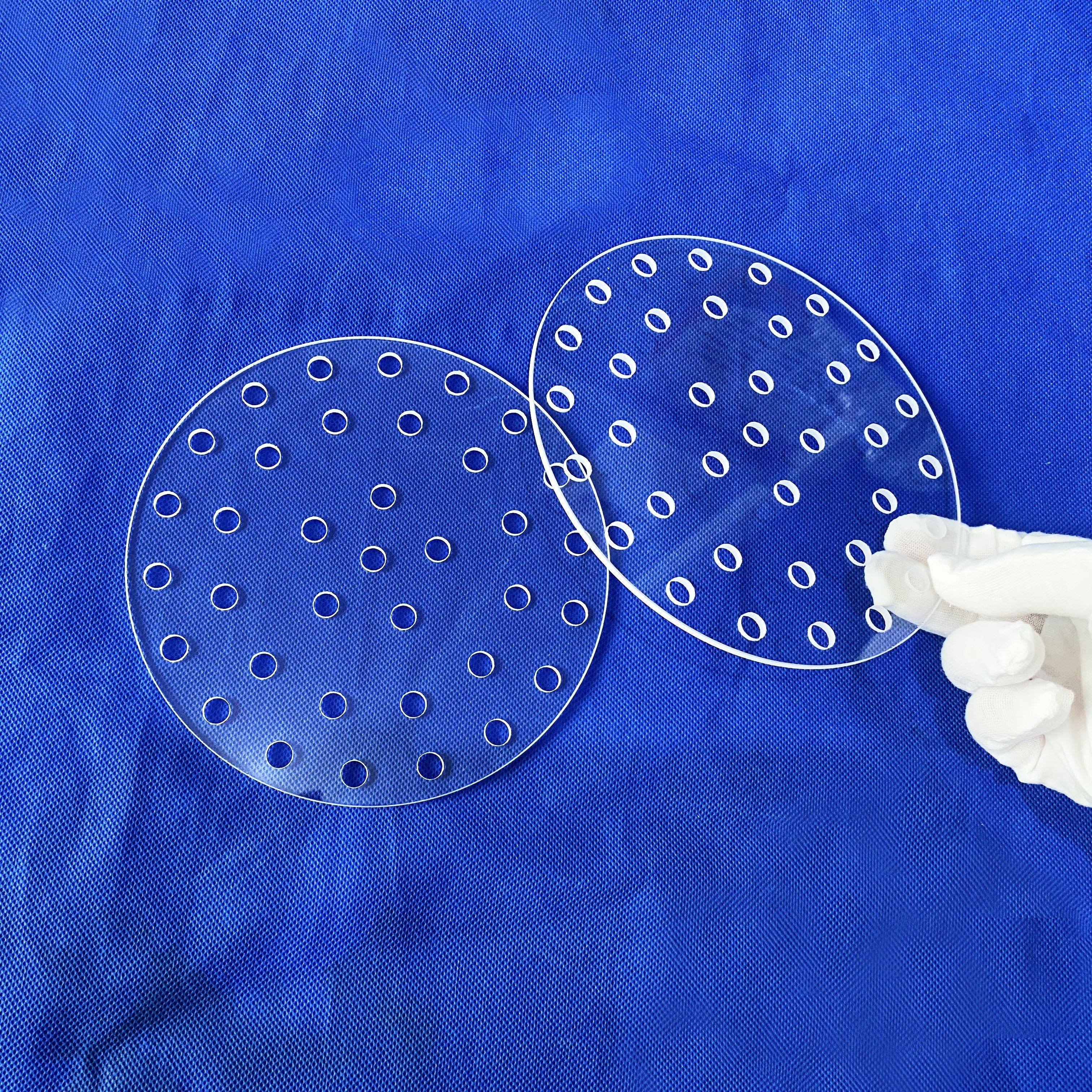

Products Show
Warm reminder
Please contact us before placing an order. The product price is for reference only and does not represent the specific selling price. Because there are too many product sizes, parameters need to be provided for processing. Outer diameter, thickness, length and quantity of quartz tube. For the length, width, thickness and quantity of square pieces, it is best to provide the drawing mailbox so that we can make an accurate quotation
* Specifications:
1. High purity quartz ,SiO2> =99.99%
2. No bubble, strip, chipping or scratch
3. we can manufacture the quartz products according to customer’s design
* Features of JD Clear 1mm fused silica plate quartz glass sheet:
1. High purity made of 99.99% pure quartz
2. Strong Hardness, Can reach Morse level 7.
3. High temperature resistance, can work under 1200°C continuously,and in short time can even work under 1500°C.
4. Acid and Alkali resistance. Except Hydrofluoric acid, JD Clear 1mm fused silica plate quartz glass sheet does not react with
any acid
5. Electric insulation, it is 10000 times of usual glass.
6. High light transmittance , it is different from 85%-95% depend on different spectrum.
7. Excellent thermal shock stability ,Small thermal expansion coefficient,it is only 5.5×10-7/℃
8. Control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM ,2 PPM.
1. High purity quartz ,SiO2> =99.99%
2. No bubble, strip, chipping or scratch
3. we can manufacture the quartz products according to customer’s design
* Features of JD Clear 1mm fused silica plate quartz glass sheet:
1. High purity made of 99.99% pure quartz
2. Strong Hardness, Can reach Morse level 7.
3. High temperature resistance, can work under 1200°C continuously,and in short time can even work under 1500°C.
4. Acid and Alkali resistance. Except Hydrofluoric acid, JD Clear 1mm fused silica plate quartz glass sheet does not react with
any acid
5. Electric insulation, it is 10000 times of usual glass.
6. High light transmittance , it is different from 85%-95% depend on different spectrum.
7. Excellent thermal shock stability ,Small thermal expansion coefficient,it is only 5.5×10-7/℃
8. Control in less than 20 PPM, 15 PPM, 10 PPM, 5 PPM ,2 PPM.
|
Round Tpye
|
Diameter: 1mm-500mm;
Thickness: 0.5mm-300mm. |
|
|
|
||
|
Rectangle Tpye
|
Length: 5mm-2000mm;
Width: 5mm-800mm; Thickness: 0.5mm-100mm |
|
|
|
||
|
Density
|
2.2g/cm3
|
|
|
|
||
|
Compressive strength
|
1100Mpa
|
|
|
|
||
|
Young's modulus
|
72000Mpa
|
|
|
|
||
|
Modulus of rigidity
|
31000Mpa
|
|
|
|
||
|
Mohs hardness
|
5.5~6.5
|
|
|
|
||
|
Transformation point
|
1280°C
|
|
|
|
||
|
Softening Point
|
1780°C
|
|
|
|
||
|
Annealing point
|
1250°C
|
|
|
|
||
|
Specific heat (20 ~ 350 °C)
|
670J/kg.°C
|
|
|
|
||
|
Thermal conductivity (20 °C)
|
1.4W/m.°C
|
|
|
|
||
|
Index of refraction
|
1.4585
|
|
|
|
||
|
Thermal processing temperature
|
1750~2050°C
|
|
|
|
||
|
Short-term working temperature
|
1300°C
|
|
|
|
||
|
Long-term working temperature
|
1100°C
|
|
|
|
||
|
Strain
|
1270 C Fused The Quartz Glass Brick
|
|
|
|
||
|
PPM grade
|
Controlled 10/20/100 PPM
|
|
|
|
||
|
Electrical Resistivity: 1000℃
|
1x106 Ω. cm
|
|
|
|
||
Production process
