Quick Details
-
Frequency:
-
27.12mhz
-
Welding Area:
-
customized
-
Dimensions:
-
120*300mm
-
Use:
-
stoma colostomy bag sealing
-
Weight (KG):
-
450 KG
-
Power (kW):
-
5kw
-
Press stoke::
-
150mm
-
Max pressure::
-
1T
-
Type:
-
pedal opertaion
-
Usage:
-
colostomy bag tube sealing
-
Welding material:
-
PE/PVC/TPU etc
-
Function:
-
Heating & high frequency
-
Certificate:
-
CE
-
OEM:
-
YES
-
Machine dimension:
-
1.2*1.5*1.65m
-
Feature:
-
Easy Operation
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sinopwr
-
Voltage:
-
380v
-
Frequency:
-
27.12mhz
-
Welding Area:
-
customized
-
Dimensions:
-
120*300mm
-
Use:
-
stoma colostomy bag sealing
-
Weight (KG):
-
450 KG
-
Power (kW):
-
5kw
-
Press stoke::
-
150mm
-
Max pressure::
-
1T
-
Type:
-
pedal opertaion
-
Usage:
-
colostomy bag tube sealing
-
Welding material:
-
PE/PVC/TPU etc
-
Function:
-
Heating & high frequency
-
Certificate:
-
CE
-
OEM:
-
YES
-
Machine dimension:
-
1.2*1.5*1.65m
-
Feature:
-
Easy Operation
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
Products Description

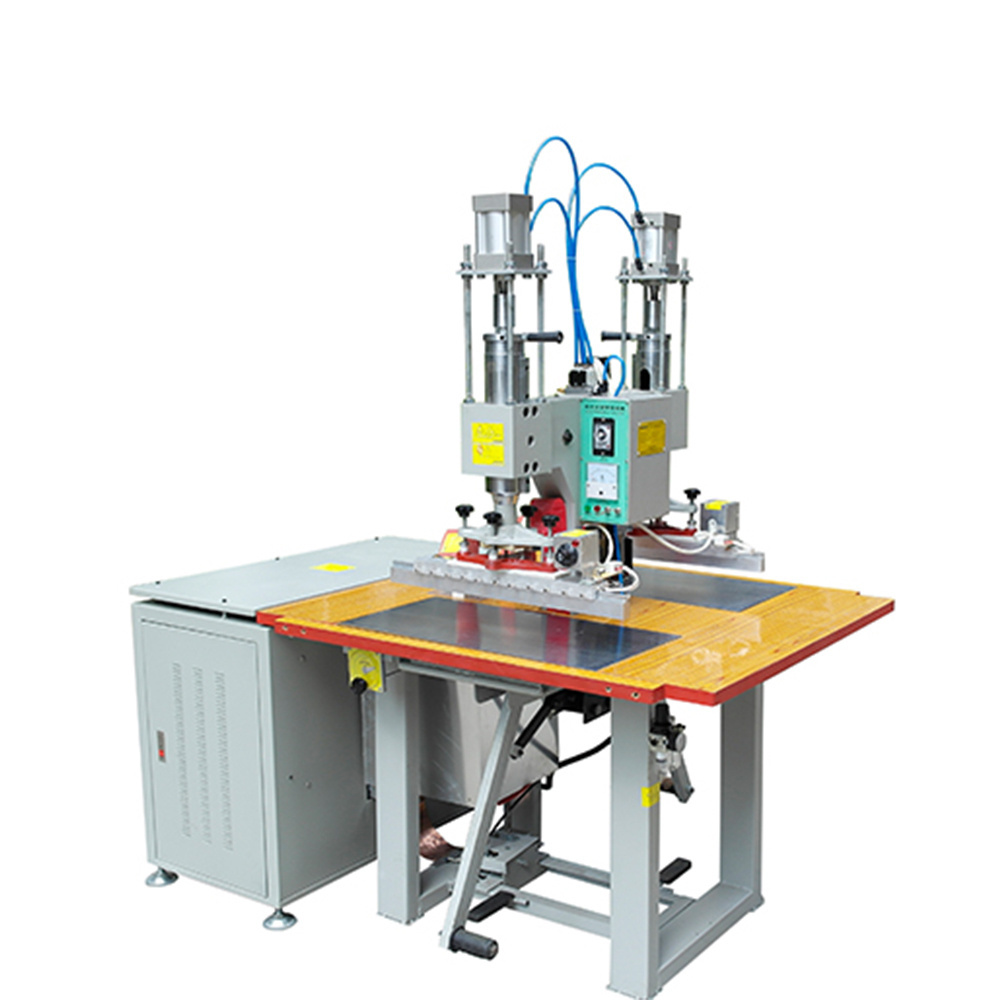

Heat Welder is designed specifically for
colostomy, ileostomy or urostomy
bags making as below type:
(1) One piece / Two piece design
(2) Non woven fabric & PE/EVOH/PE film liner
(3) Hydrocolliod flange adhesive sealing with good stickiness and friendly to skin
(4)Active carbon filter sealing
(1) One piece / Two piece design
(2) Non woven fabric & PE/EVOH/PE film liner
(3) Hydrocolliod flange adhesive sealing with good stickiness and friendly to skin
(4)Active carbon filter sealing
Flange & plastic ring sealing mold
Colostomy bag sealing cutting mold
Tube sealing mold
Machines Functions:
1.With four stations rotary type, which the device enable the welding position more precise.
2.Equipped with two heads,one is welding function,the other is cutting area,which could ensure the bags finished at one time and ensure the cutting edge more beautiful.
3.Customized work table size and welding platen is available.
1.With four stations rotary type, which the device enable the welding position more precise.
2.Equipped with two heads,one is welding function,the other is cutting area,which could ensure the bags finished at one time and ensure the cutting edge more beautiful.
3.Customized work table size and welding platen is available.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Model
|
Data
|
|
||
|
|
|
ZG-5KWRS
|
ZG-8KWRS
|
ZG-5KWP
|
||
|
1
|
Power
|
5KW
|
8KW
|
5KW
|
||
|
2
|
Machine capacity
|
8s one cylce
|
10s one cycle
|
5s one cycle
|
||
|
3
|
Welding pressure
|
500KG
|
1 Ton
|
300KG
|
||
|
4
|
Cutting pressure
|
|
15 Ton
|
|
||
|
5
|
Welding size
|
350*550mm
|
350*550mm
|
120*200MM
|
||
|
6
|
Working station
|
3 stations
|
4 stations
|
2 stations
|
||
|
7
|
Machine rack
|
standard painted or stainless steel cover
|
|
|
||
